Available Lengths
GVWR
18,000 lbs
Est. Payload
Up to 11,000 lbs
Axle Size
(3) 6,000#
Interior Height
11'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Overall Height - 12' 11 5/8"
- (B) Ramp Door Height - 7' 6 1/2"
- (C) Interior Height - 11'
- (D) Interior Length - 21' 10"
- (E) Ground Clearance - 13" Approx.
- (F) Overall Length - 30' 1 7/8"
- (G) Between Wheel Wells - 6' 9 1/2"
- (H) Box Width - 8' 4"
- (I) Box Length - 24' 2"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |
| Triple 6000# Dexter Torsion Axles with ST235/80R16 Tires |
| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 4500# Power Tongue Jack |
| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |
| Smooth Aluminum Wheel Boxes with Chamfered Edge |
| Spread Axle Design with Individual Fenderettes and Wheel Skirt |
| Interior |
|---|
| .030 Screwless Aluminum Walls & Ceiling |

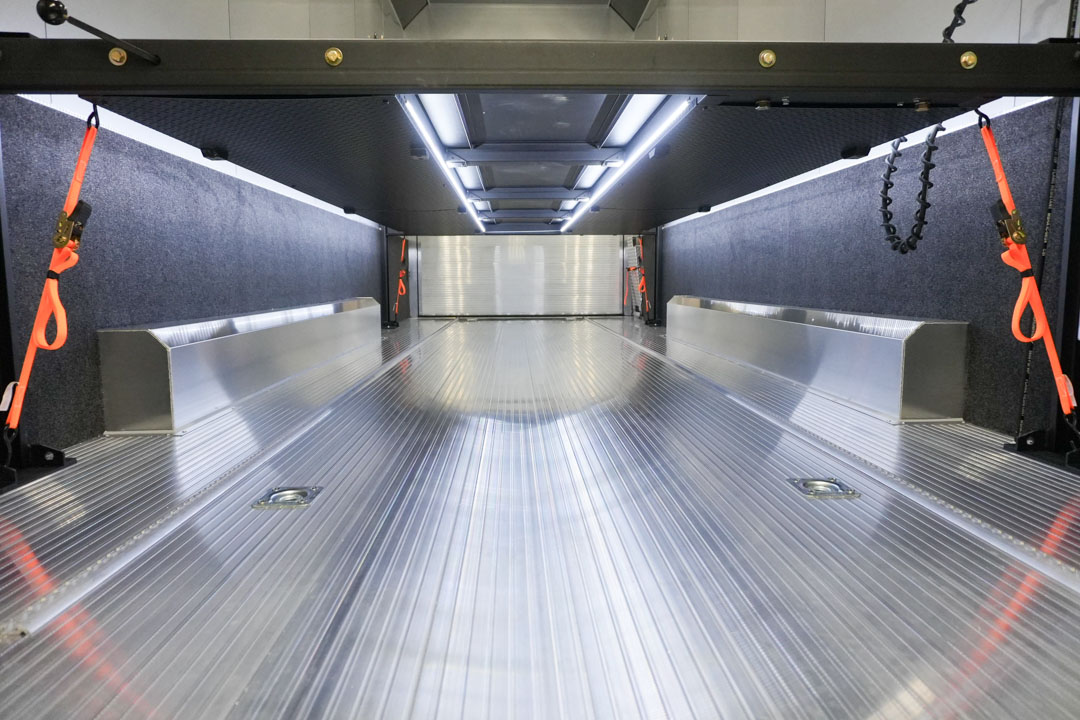

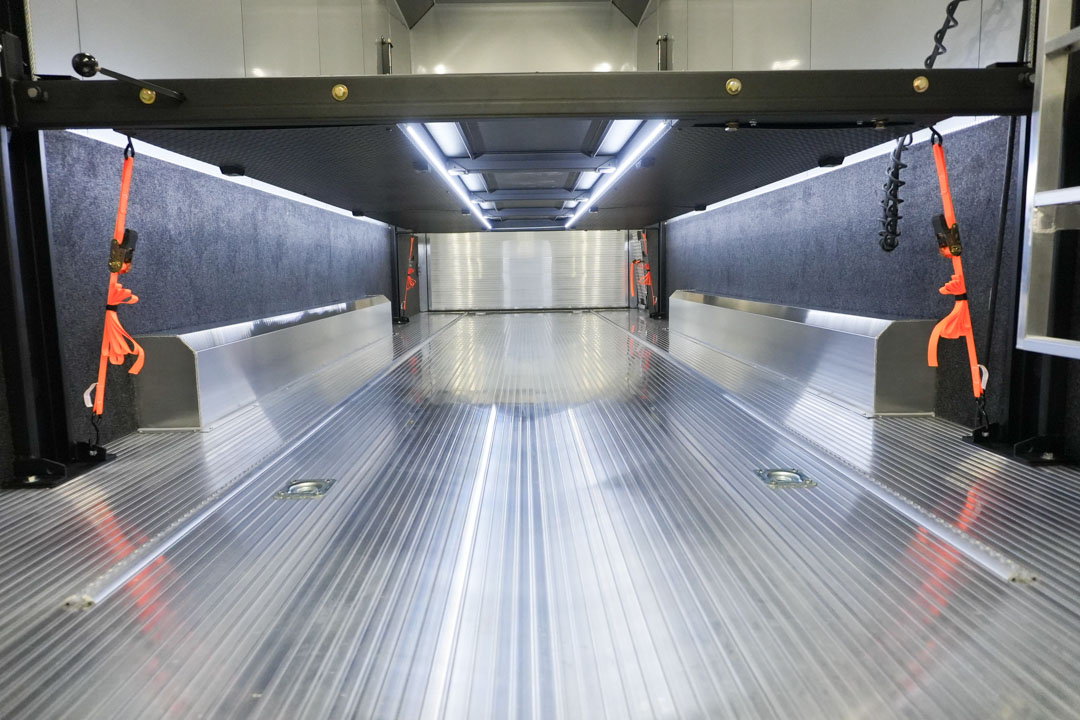

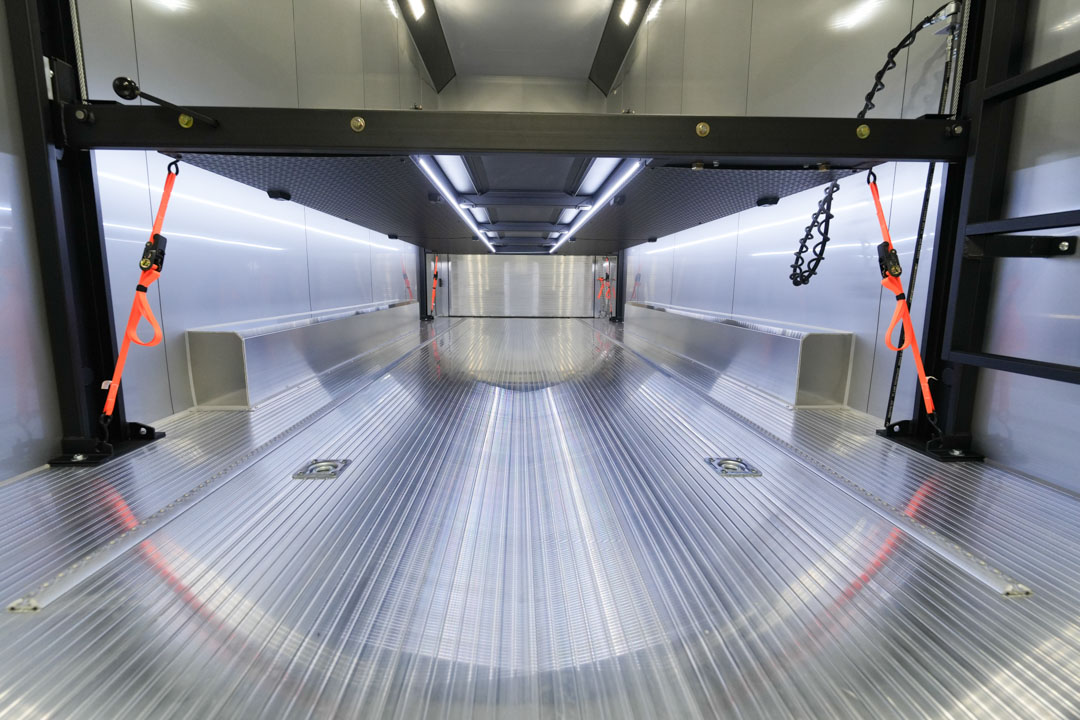

| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |
| 11' Interior Height |
| (4) 5000# Recessed D-Rings in Main Floor |
| 3' Beavertail |

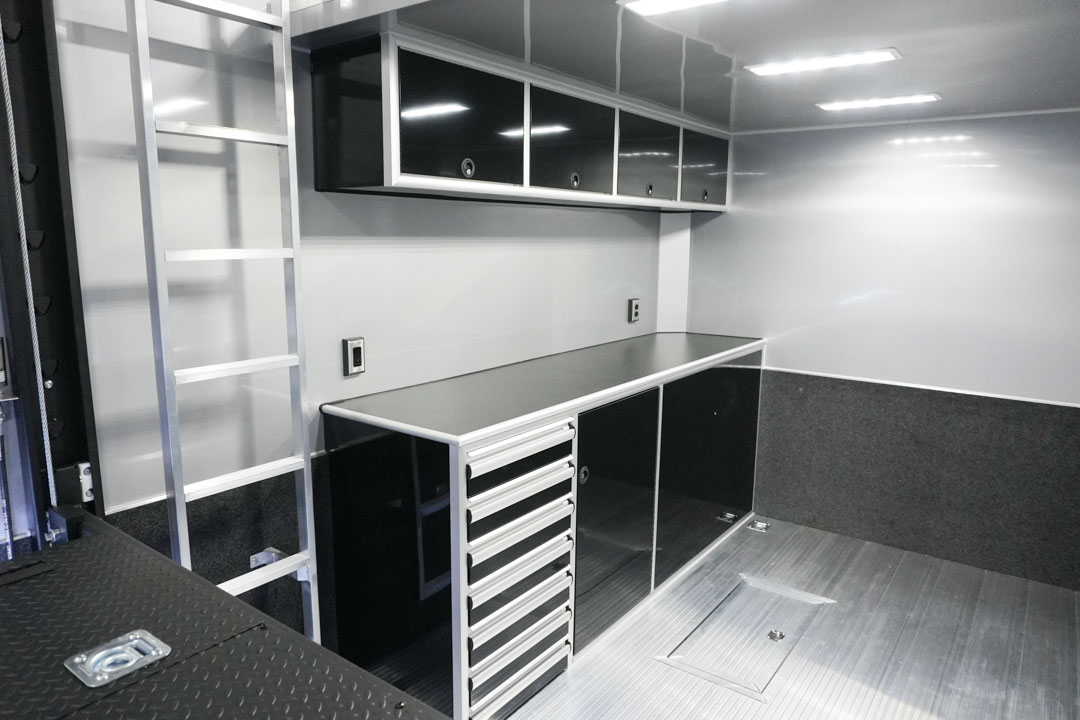

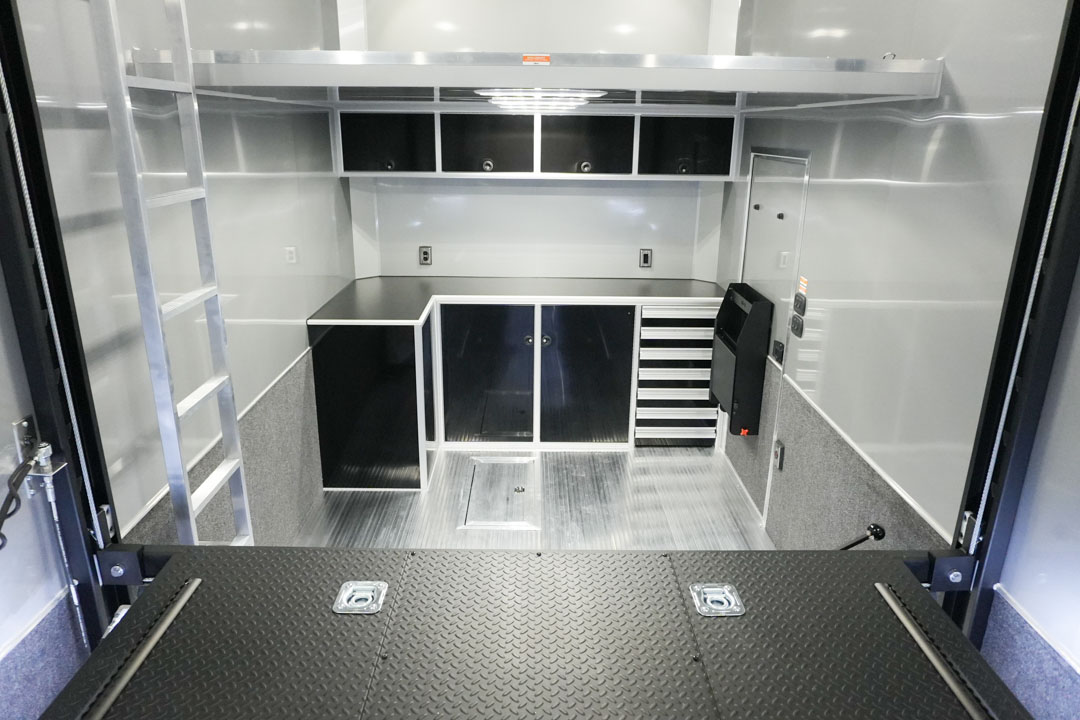

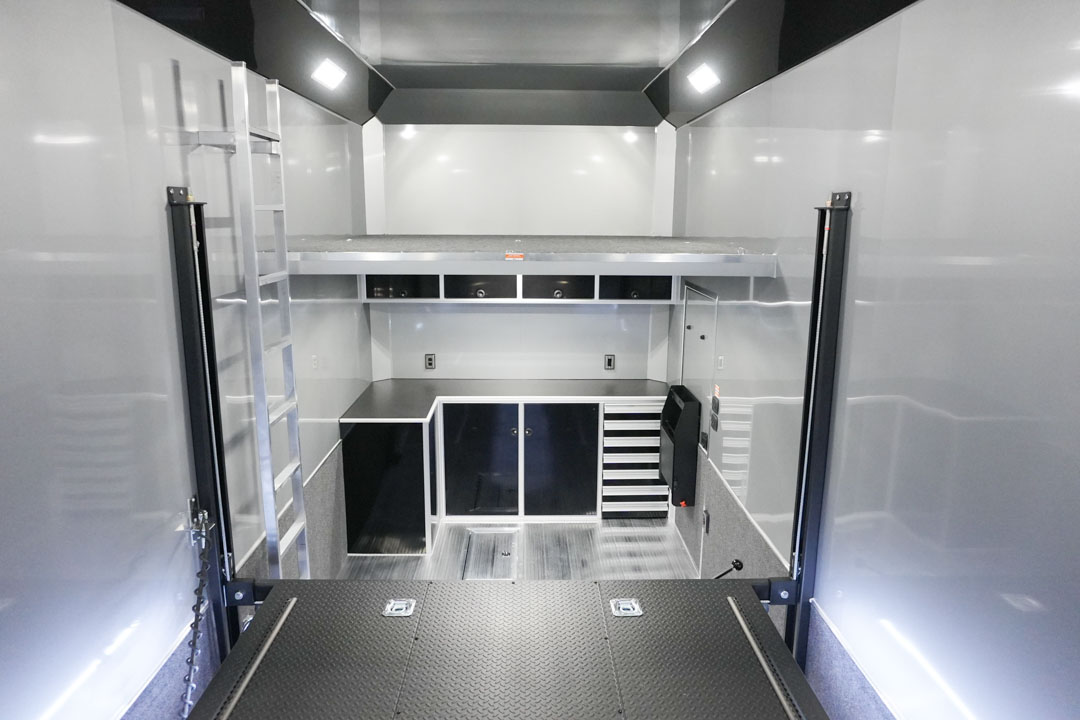

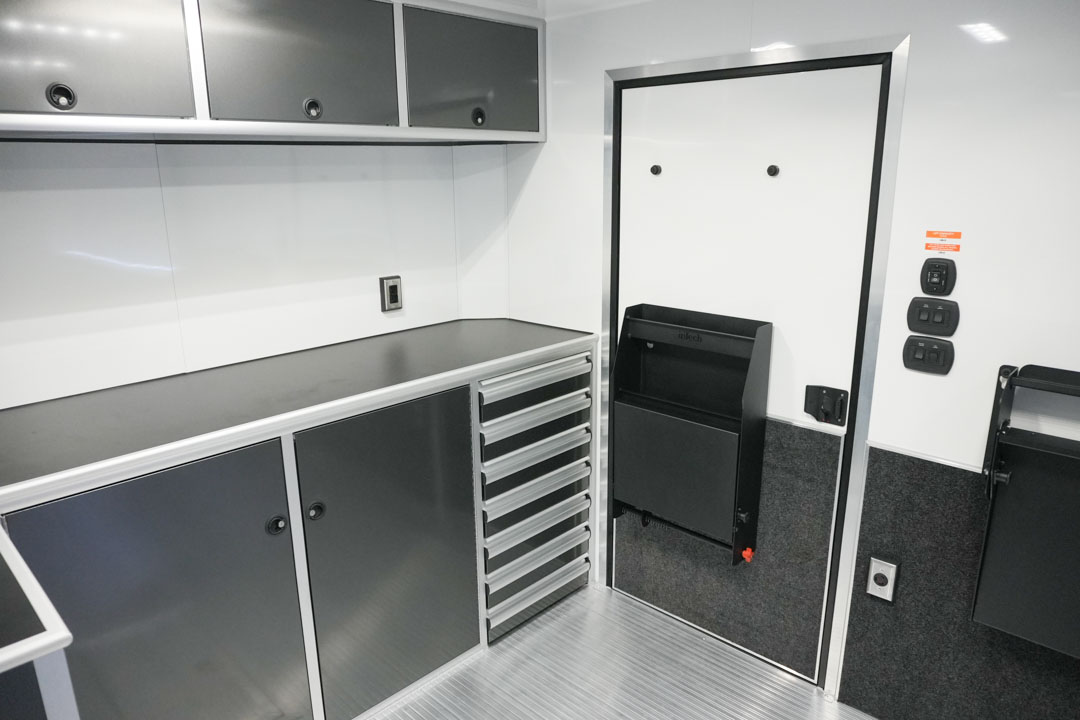

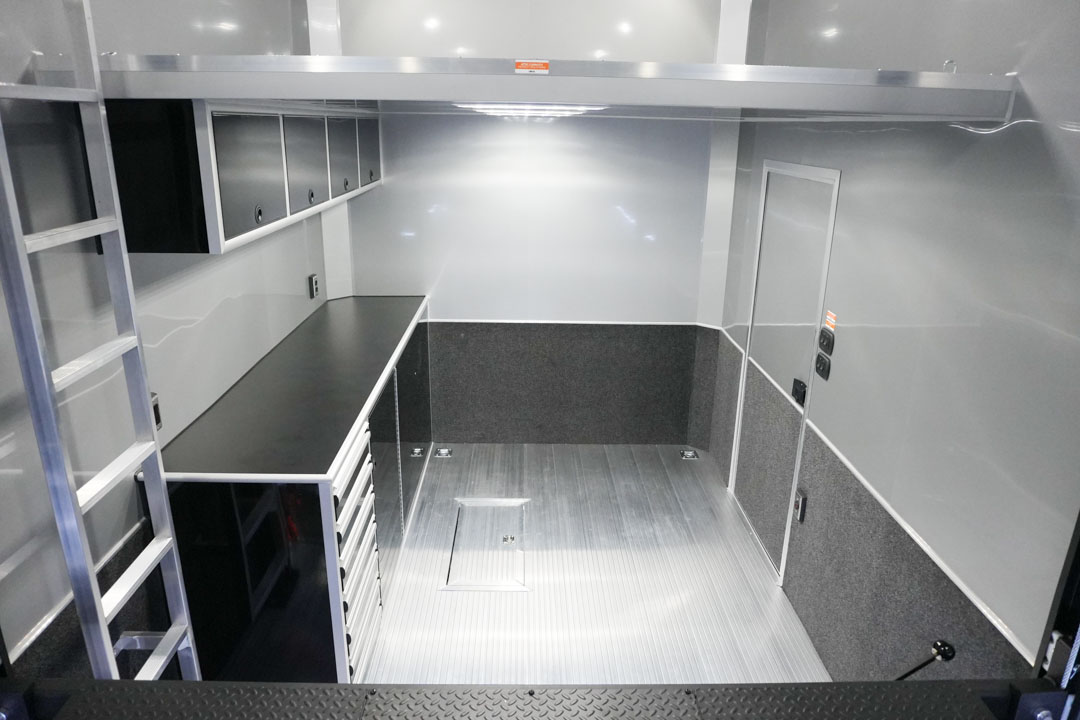

| 8' Upper Aluminum Cabinet W/ Top Hinged Doors & Shocks |

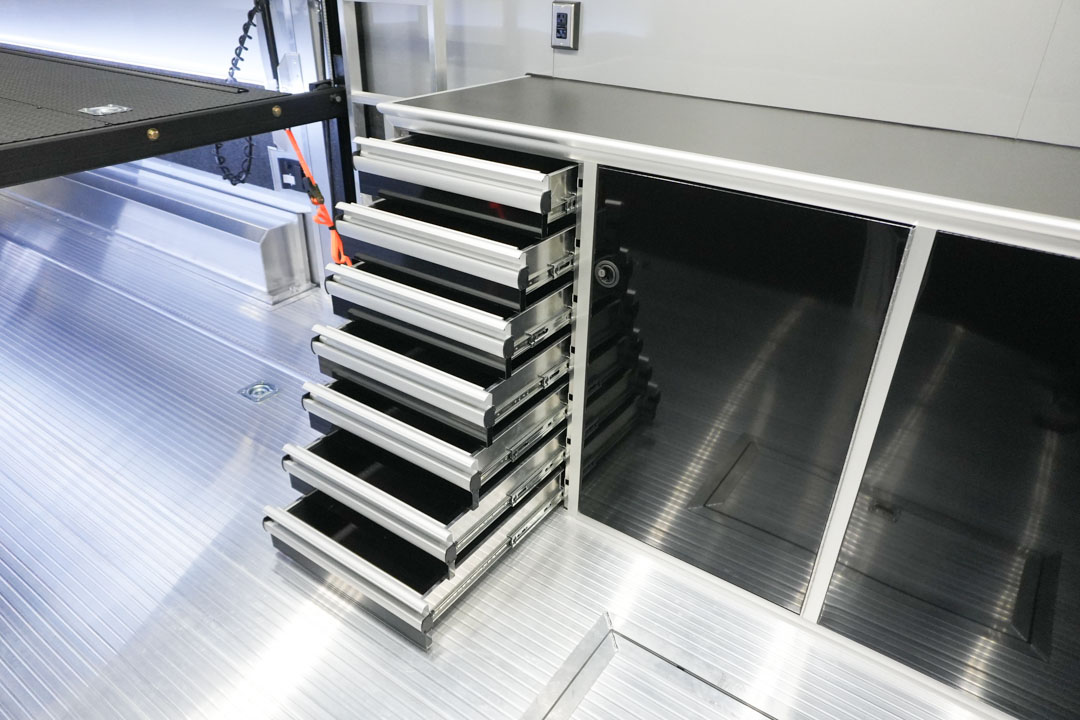

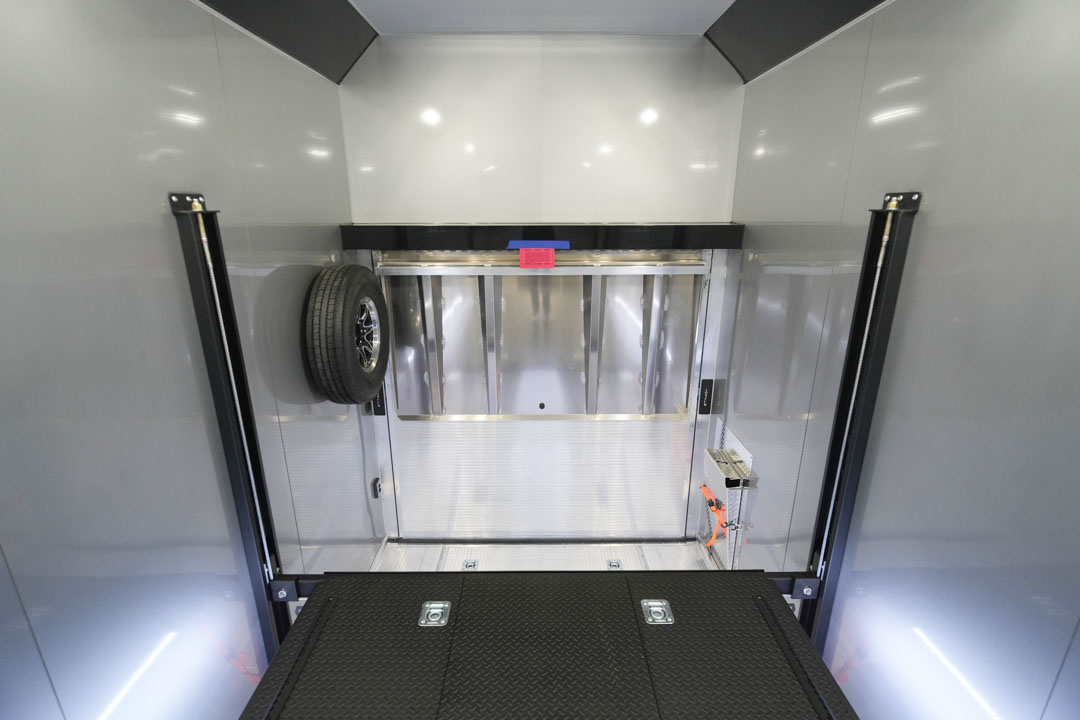

| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (6) 18” 12v Ceiling Lights with Switch |

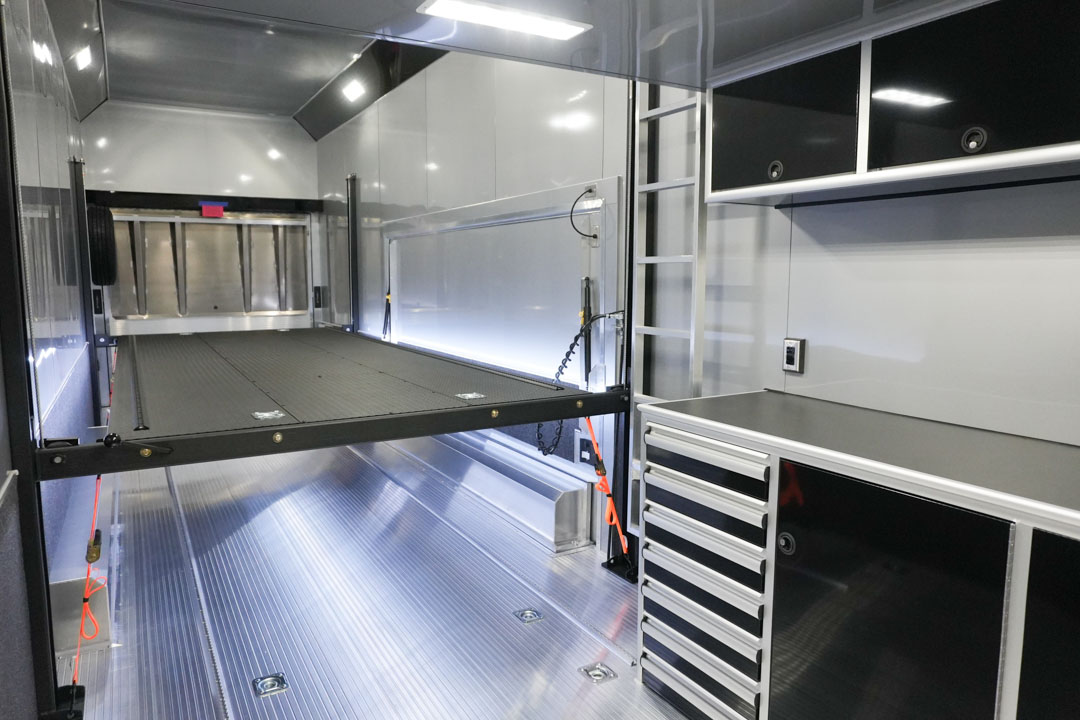

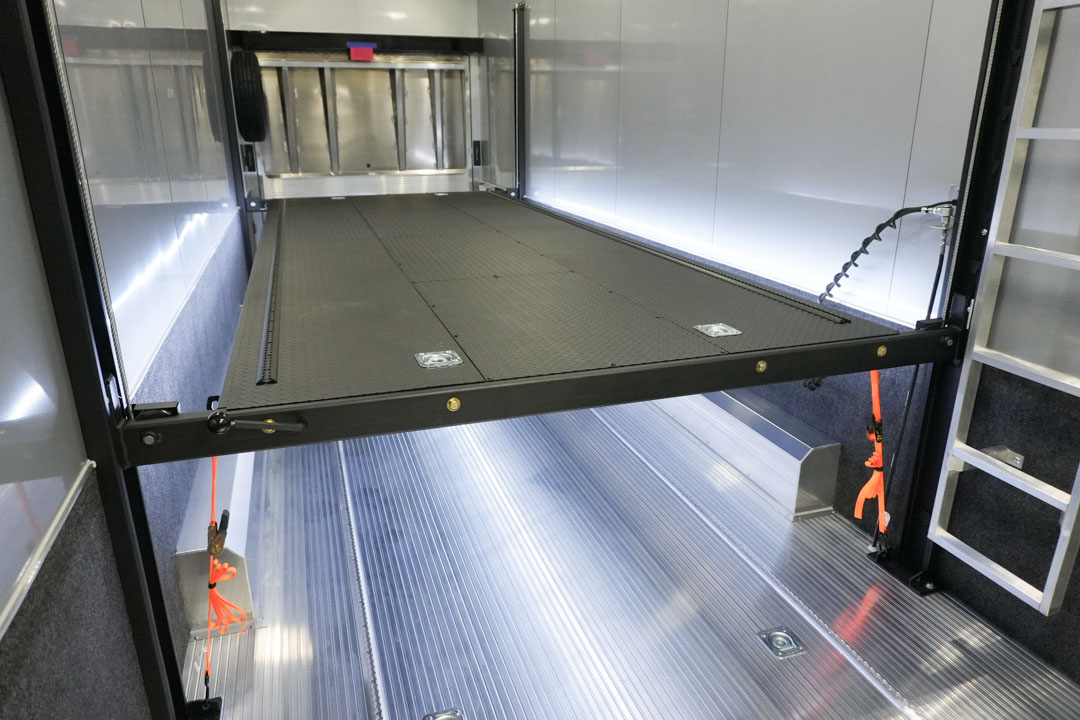

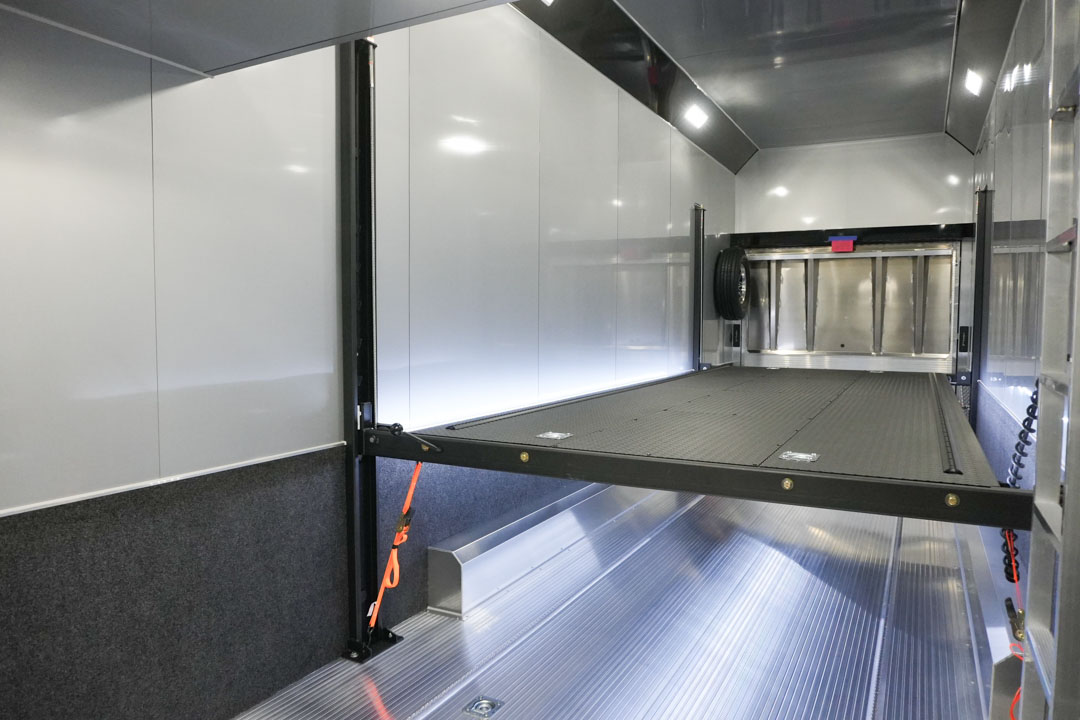

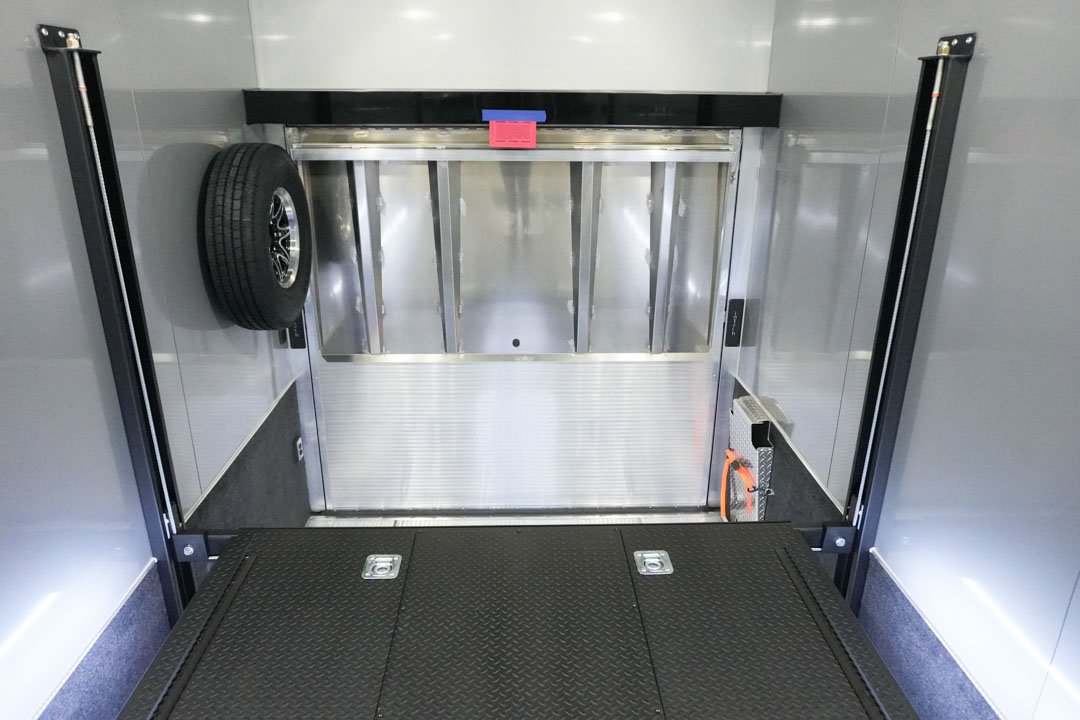

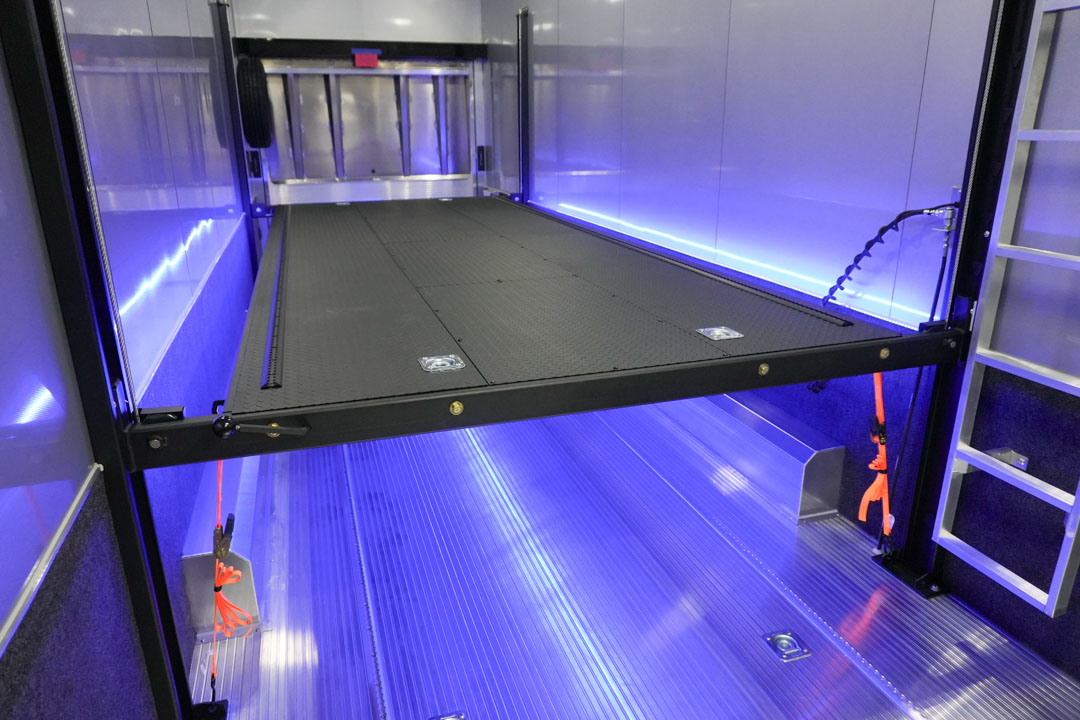

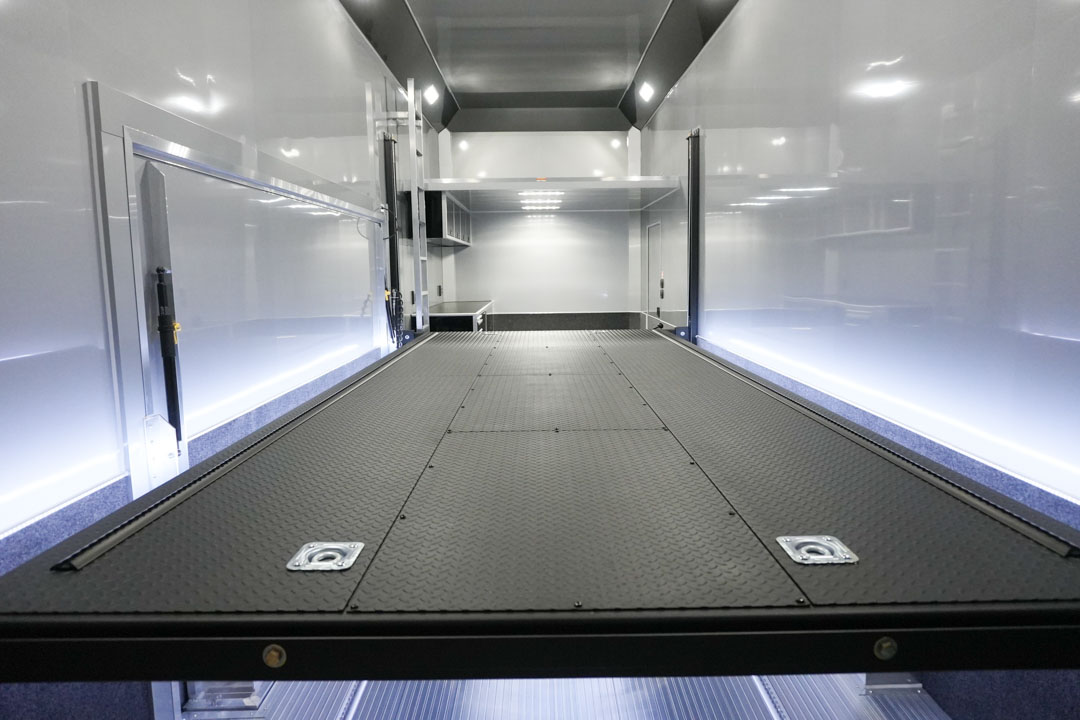

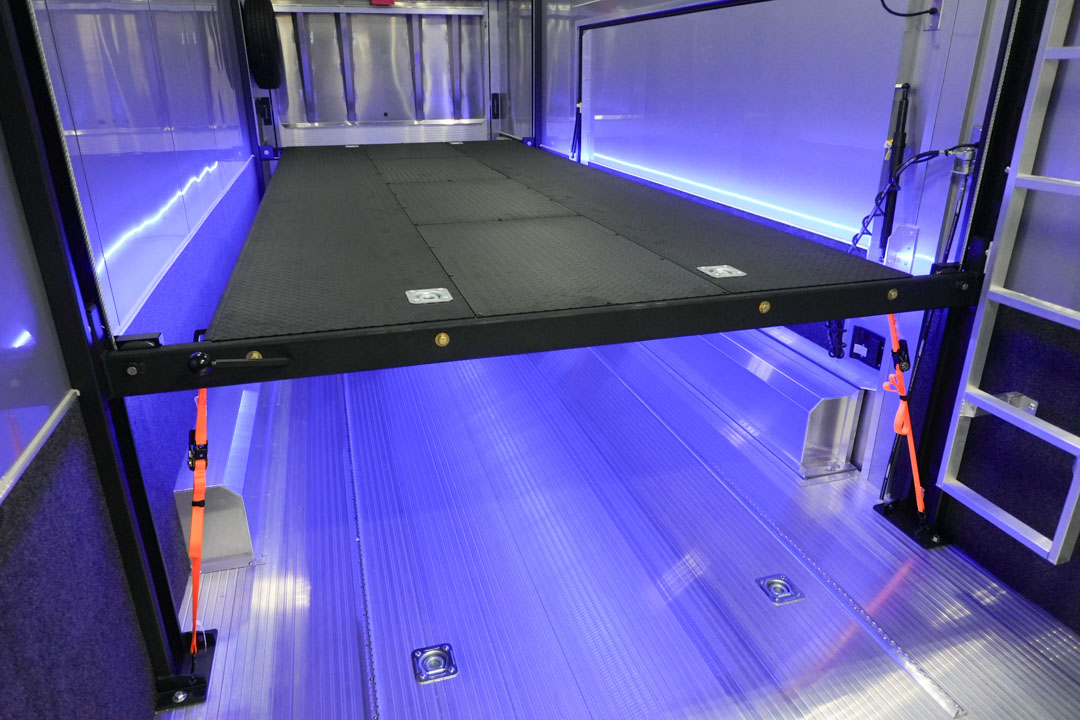

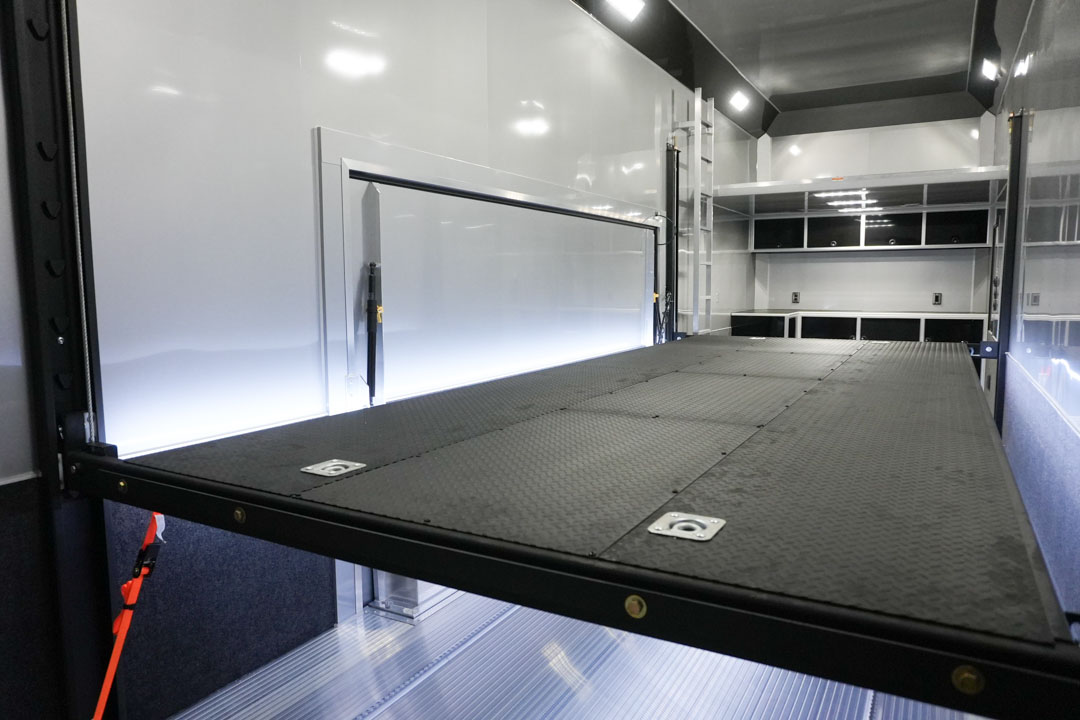

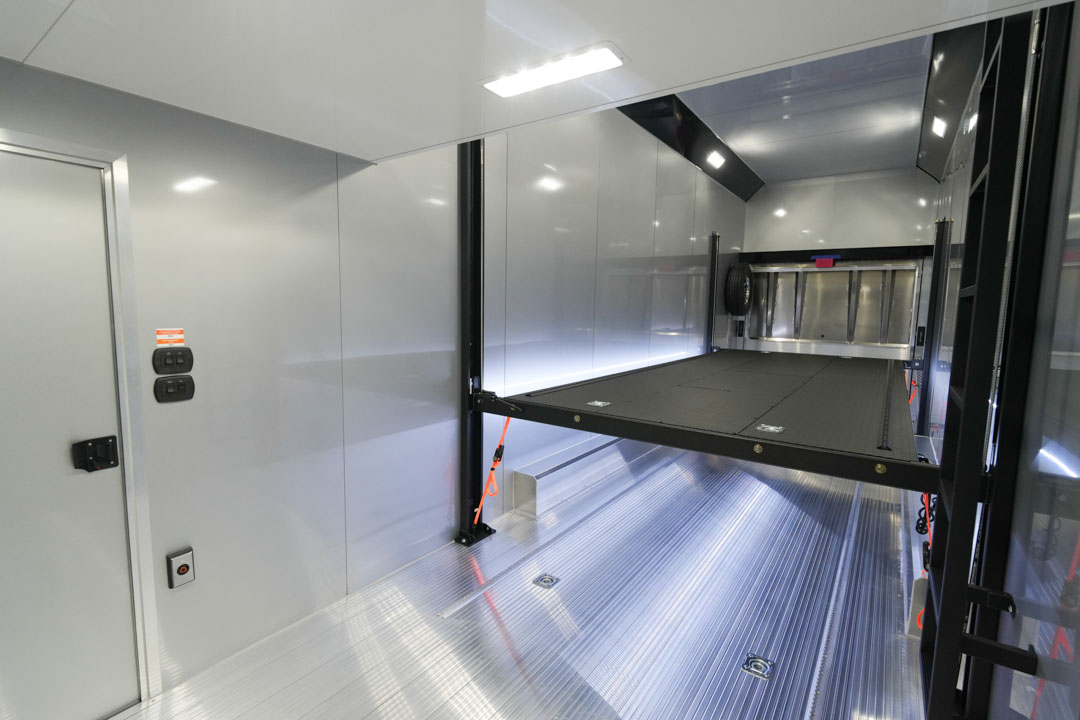

| Stacker Features |
|---|

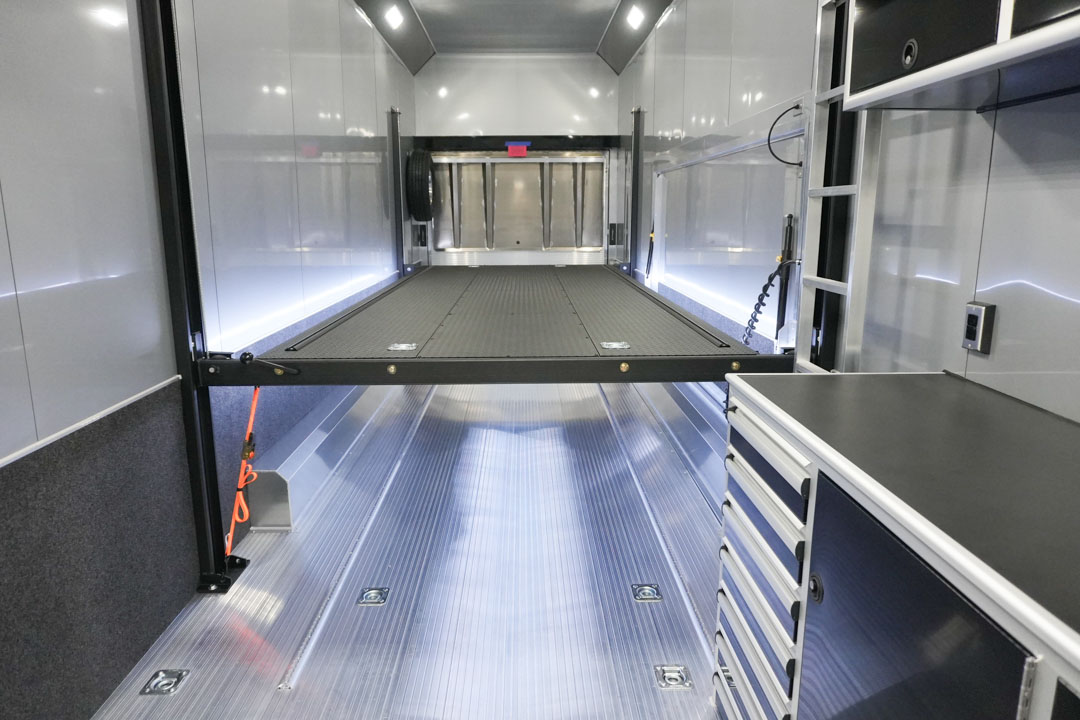

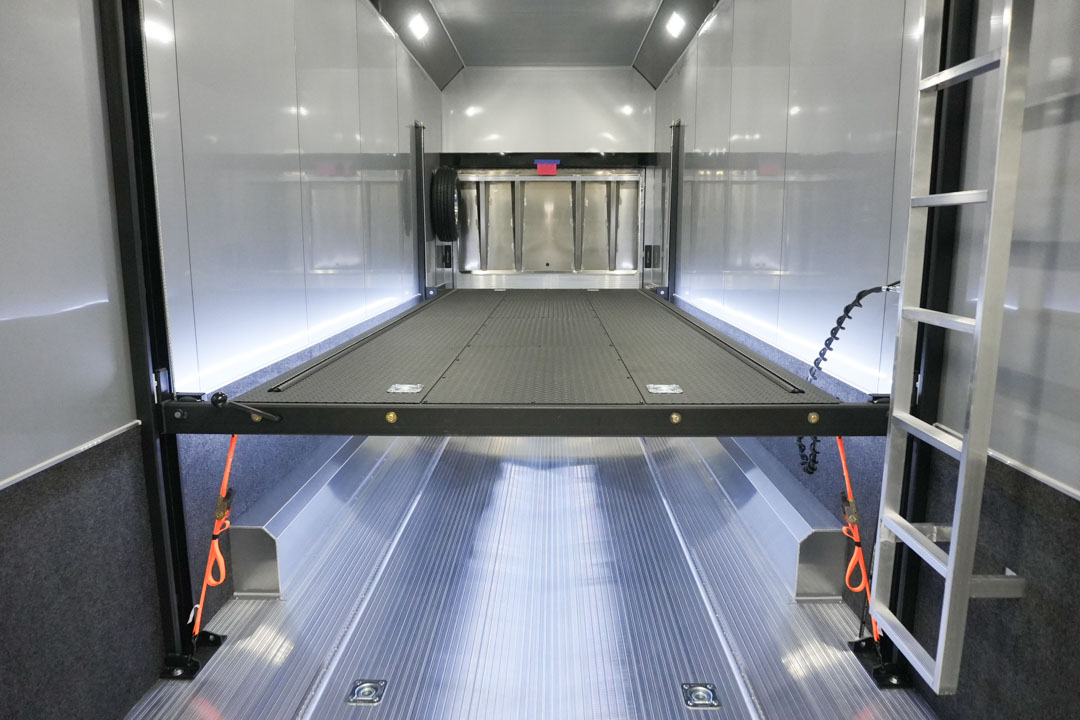

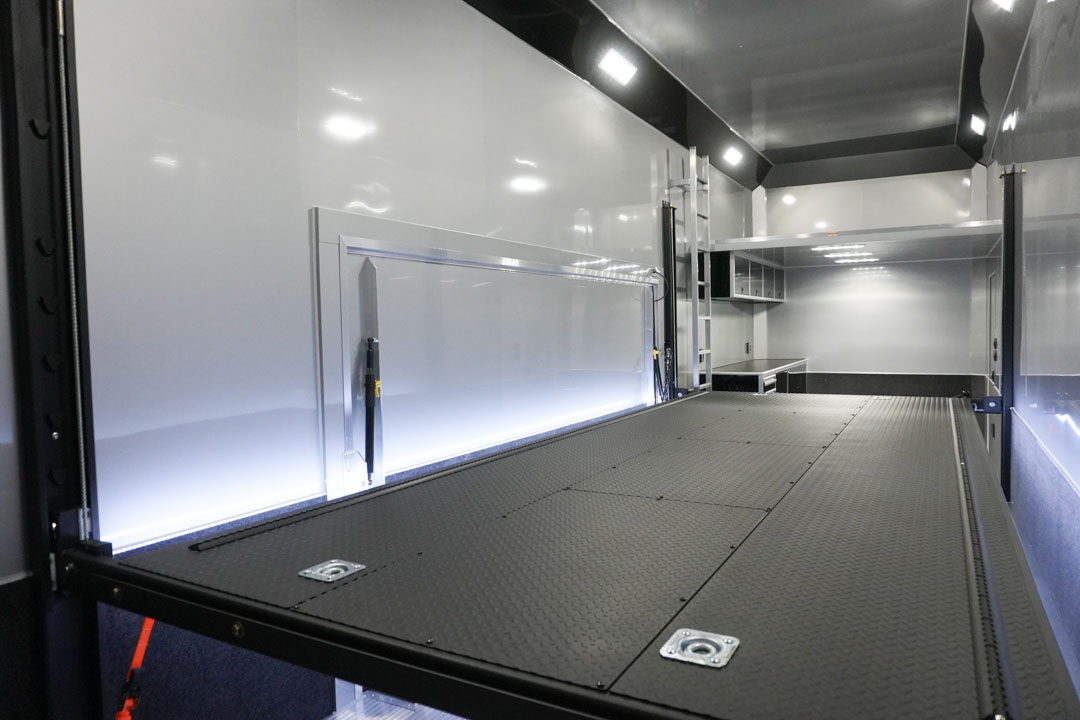

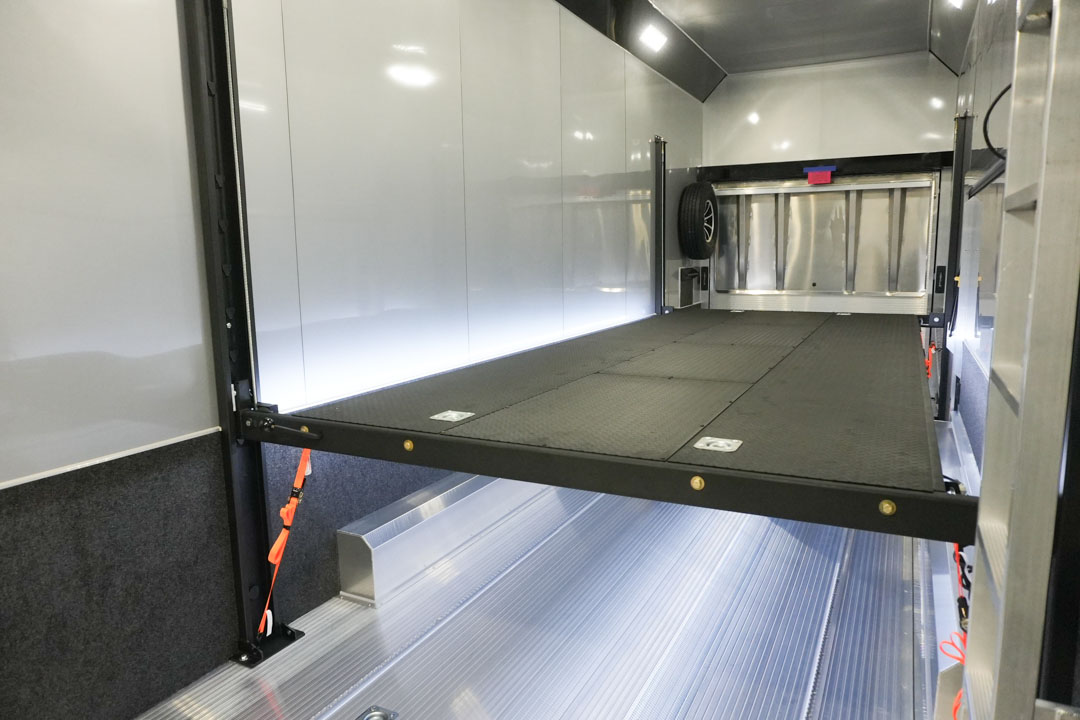

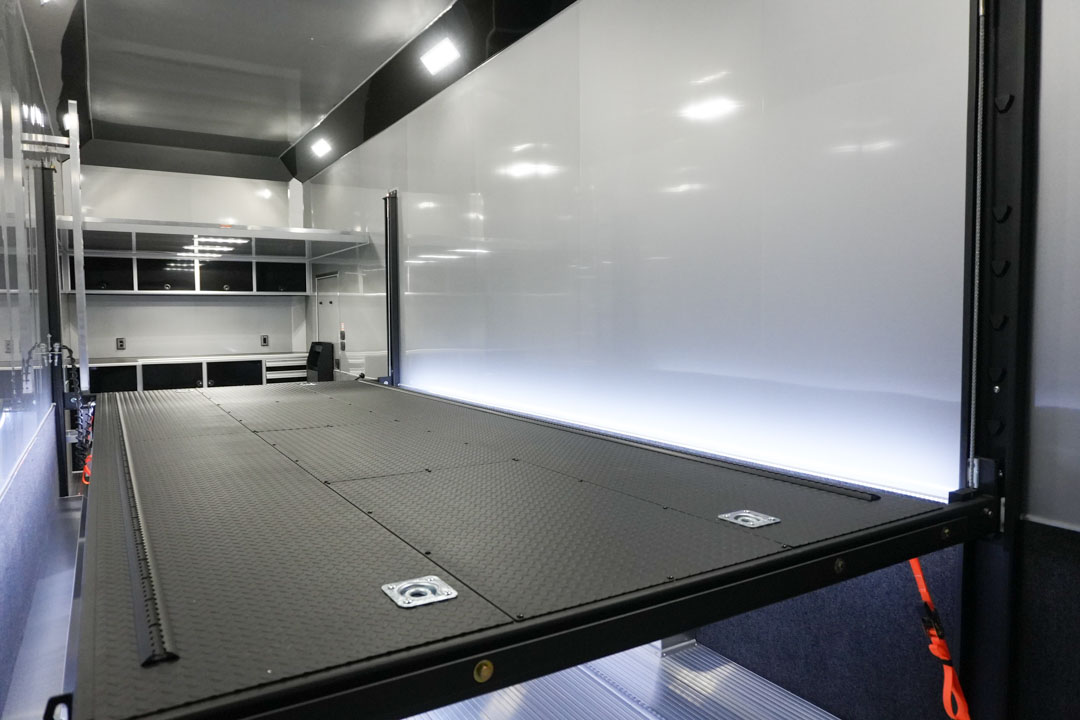

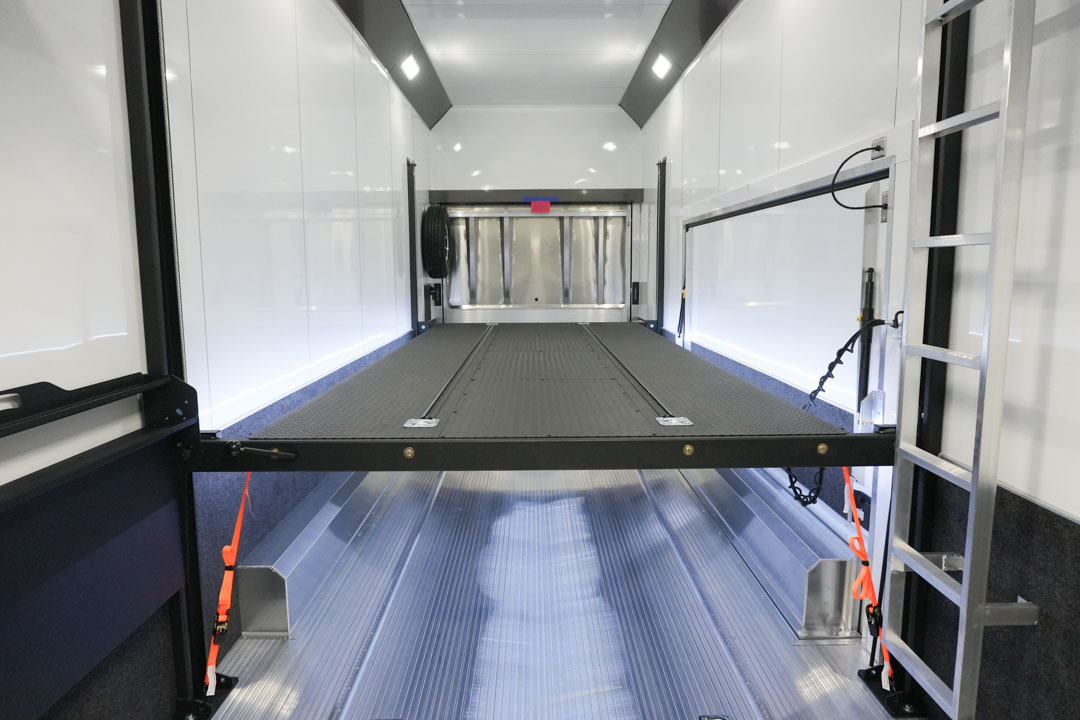

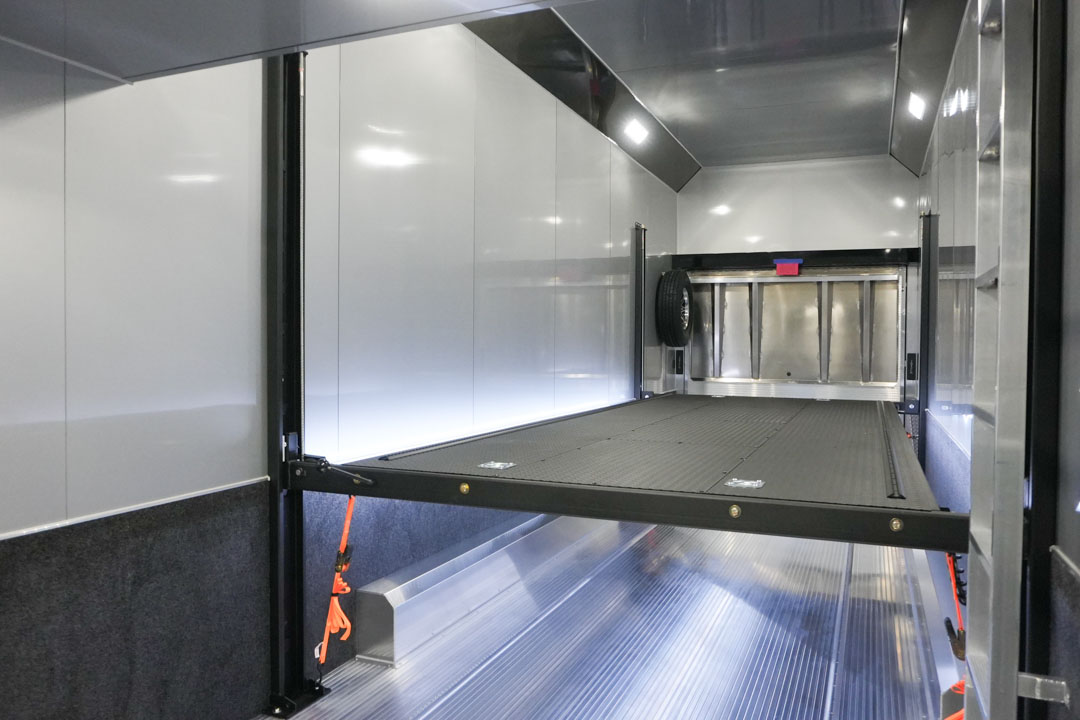

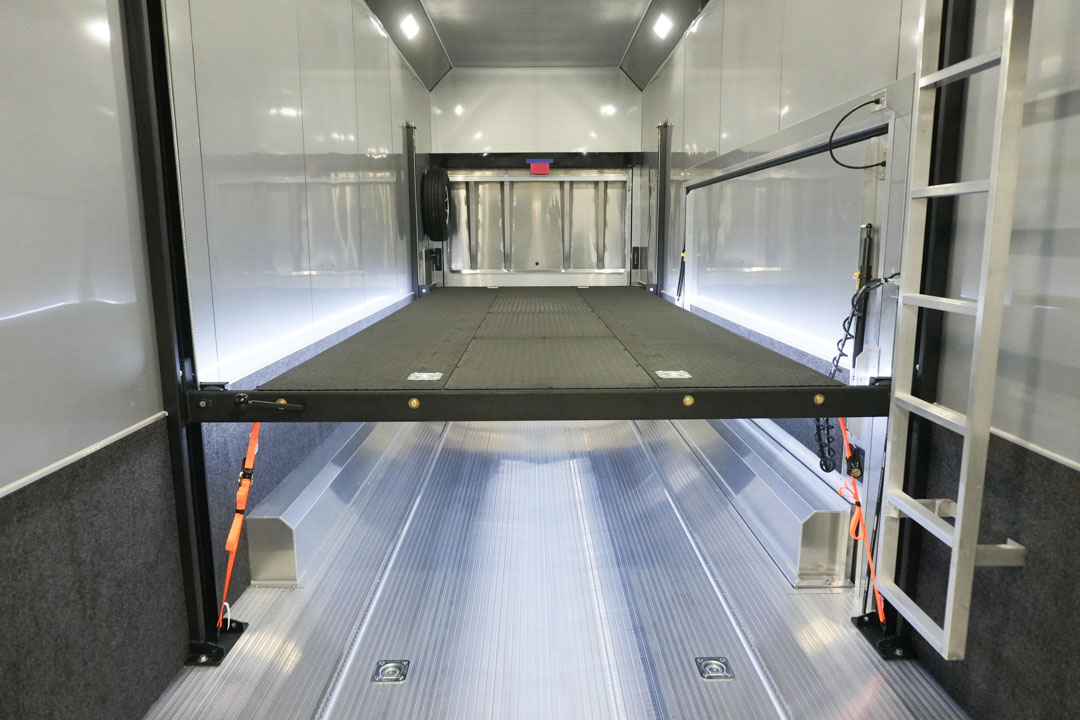

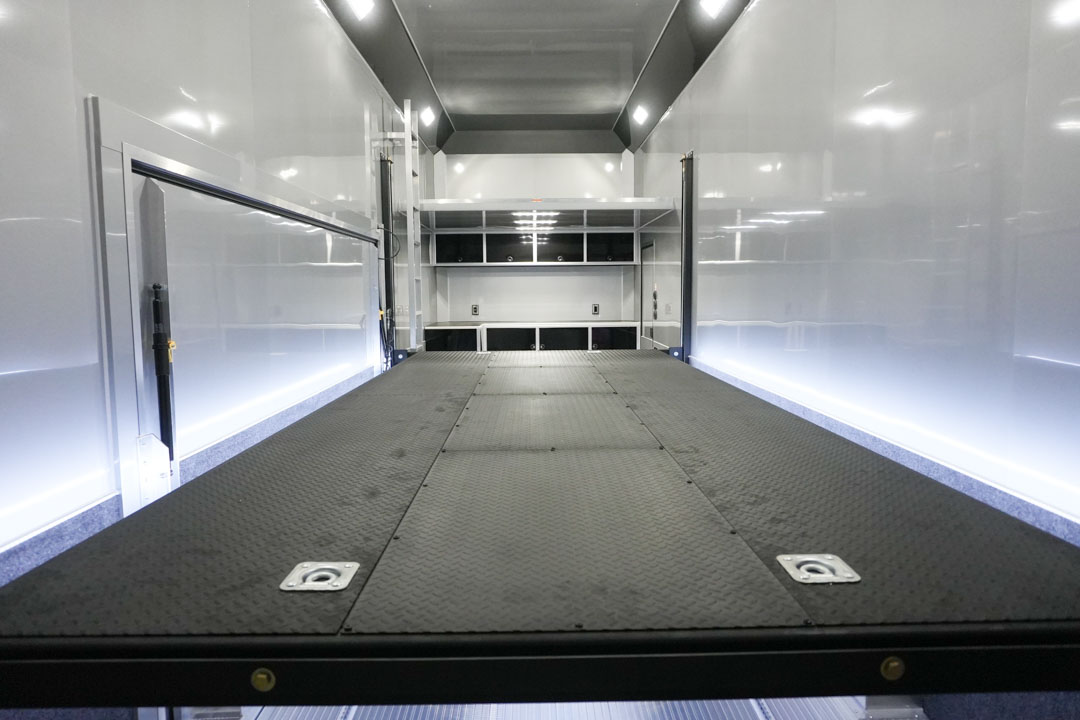

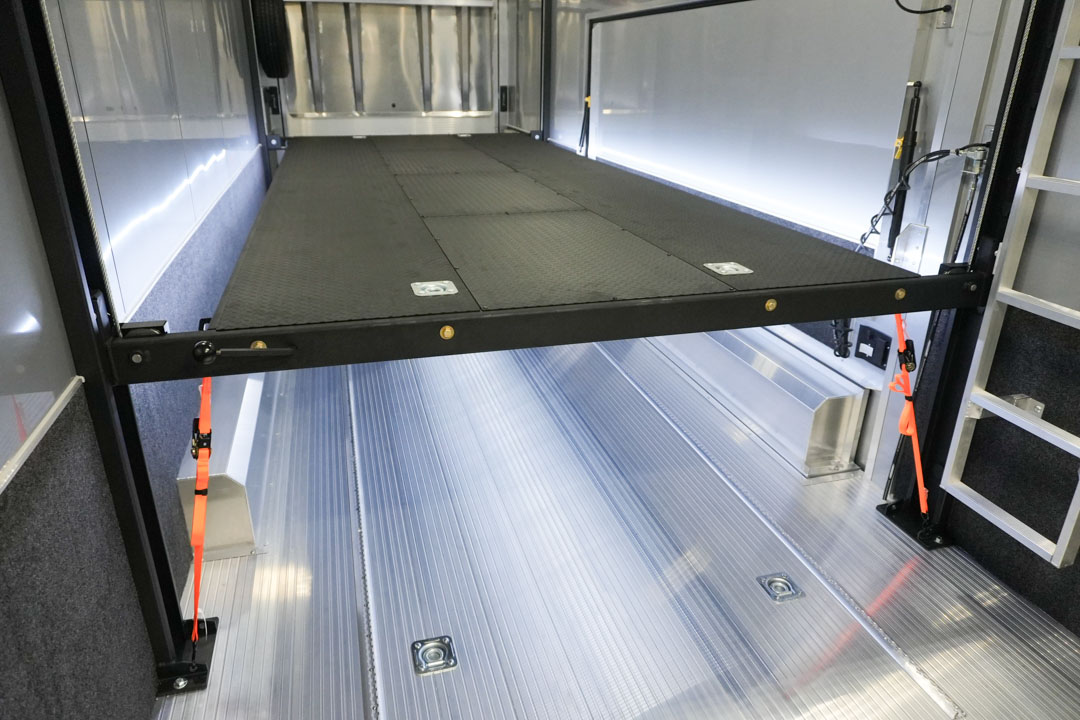

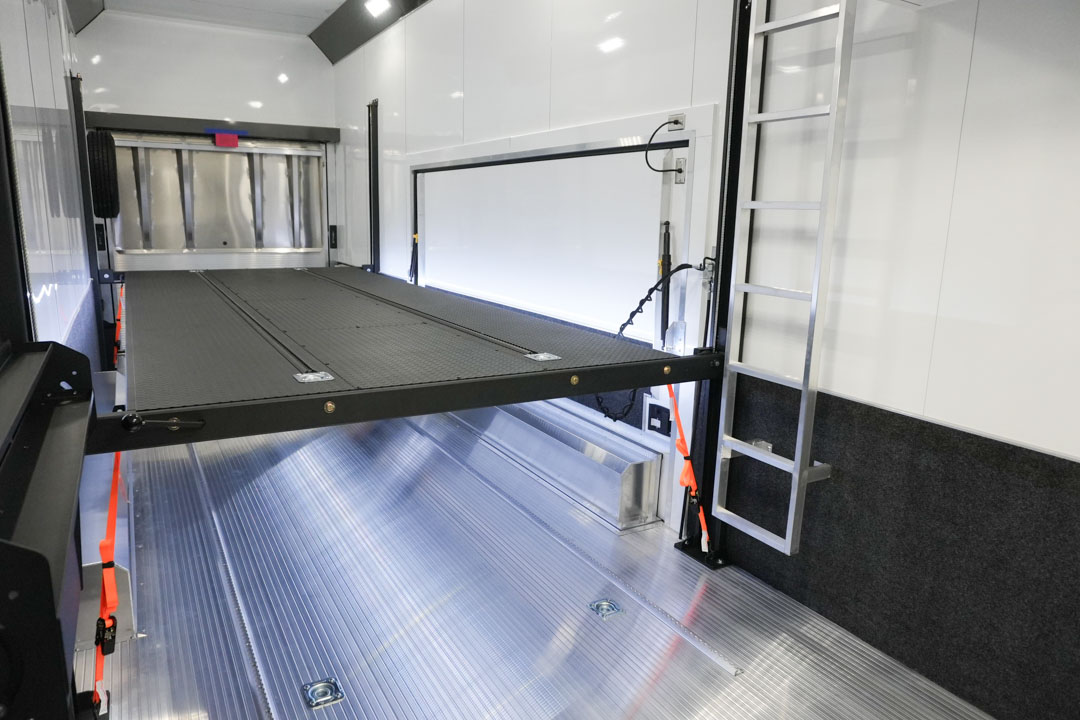

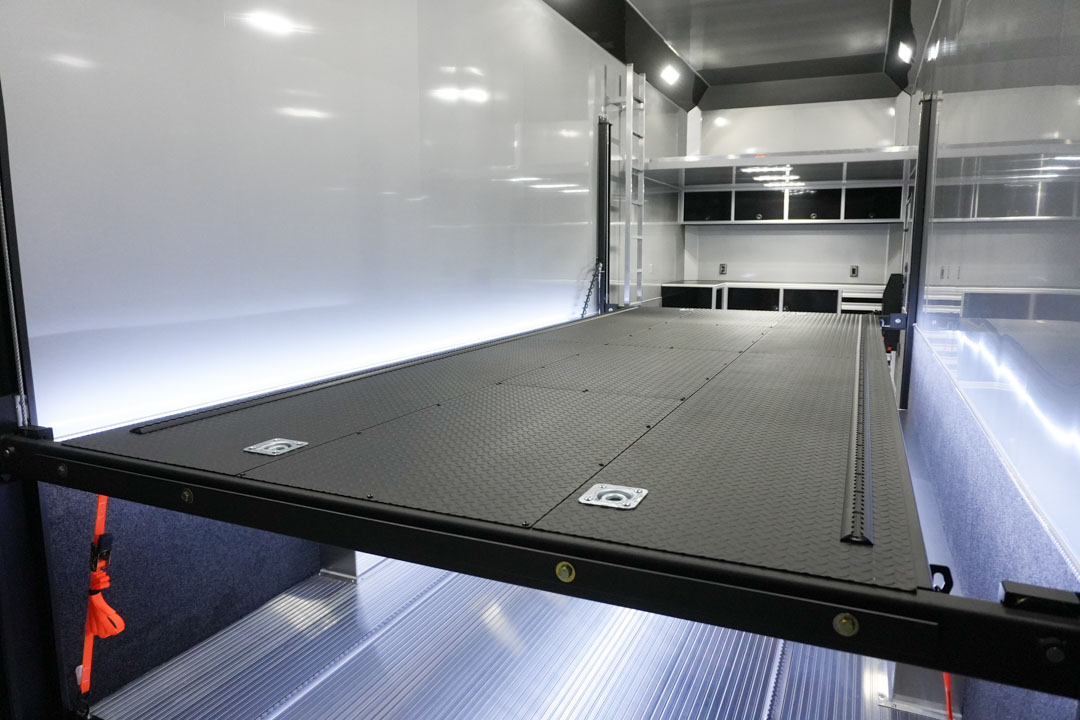

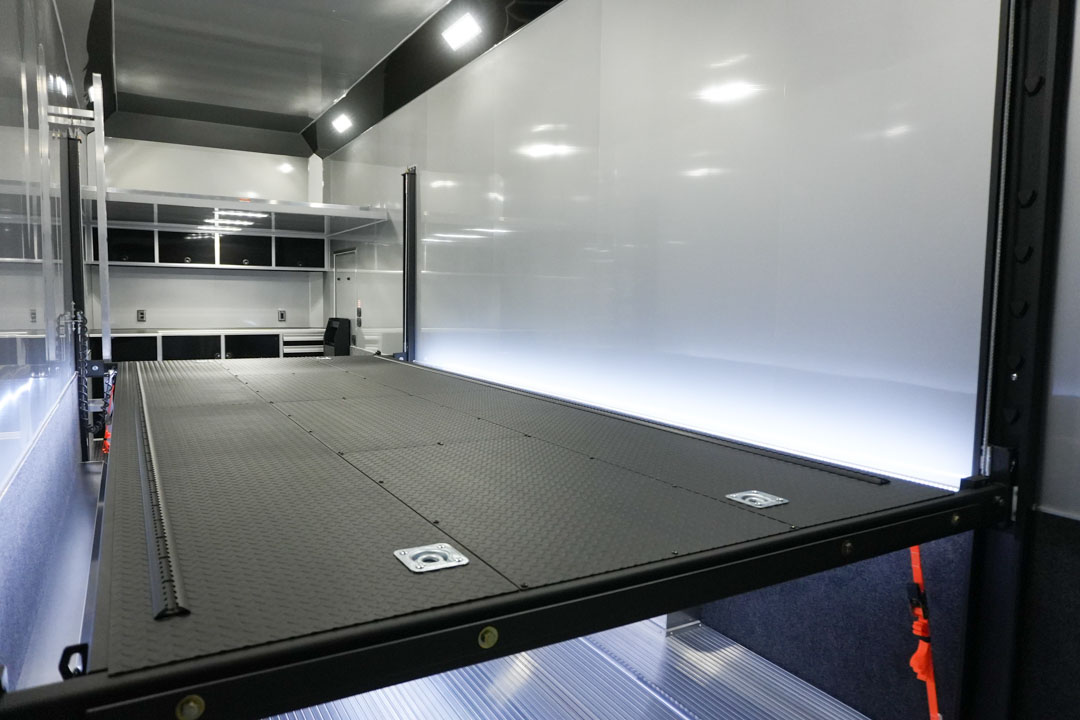

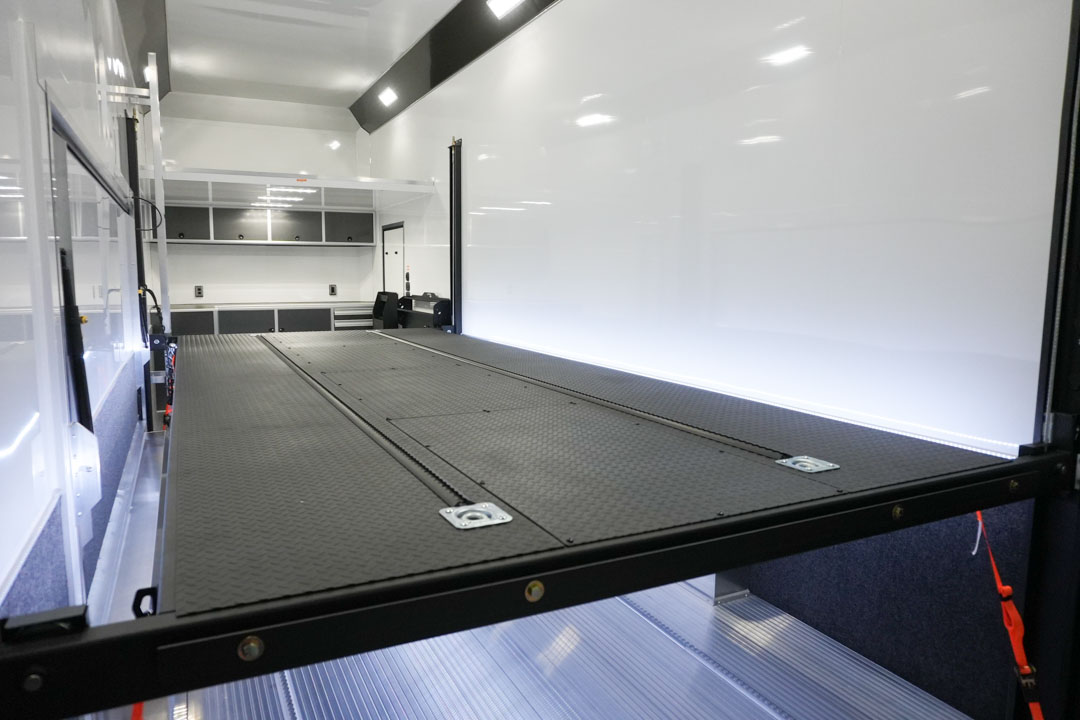

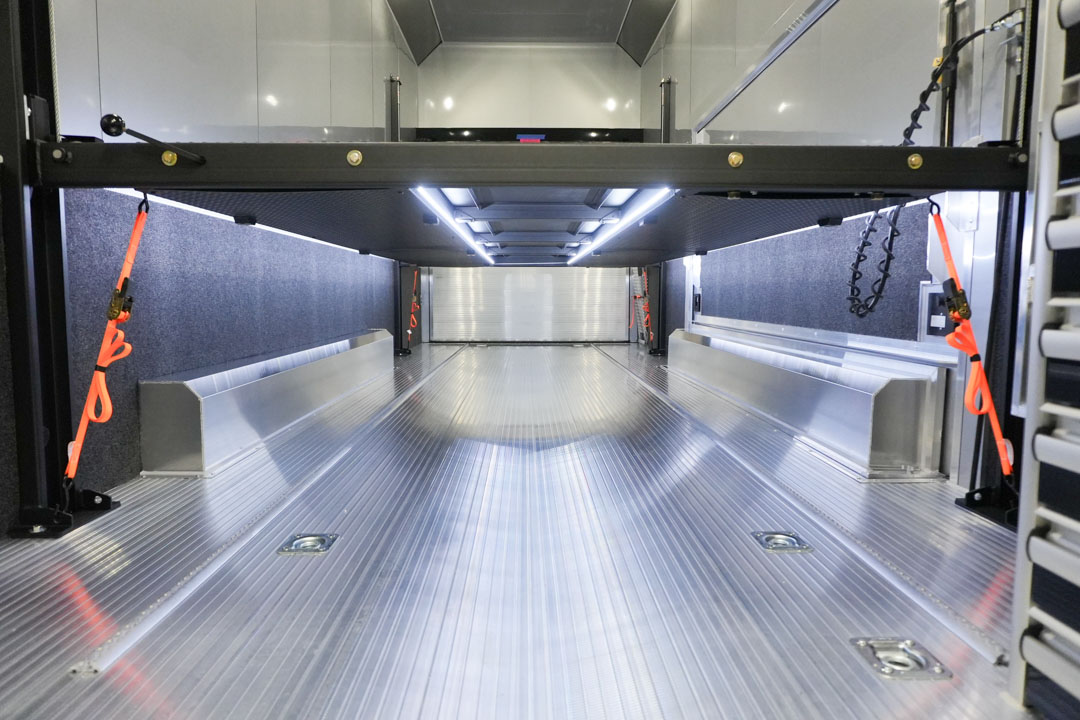

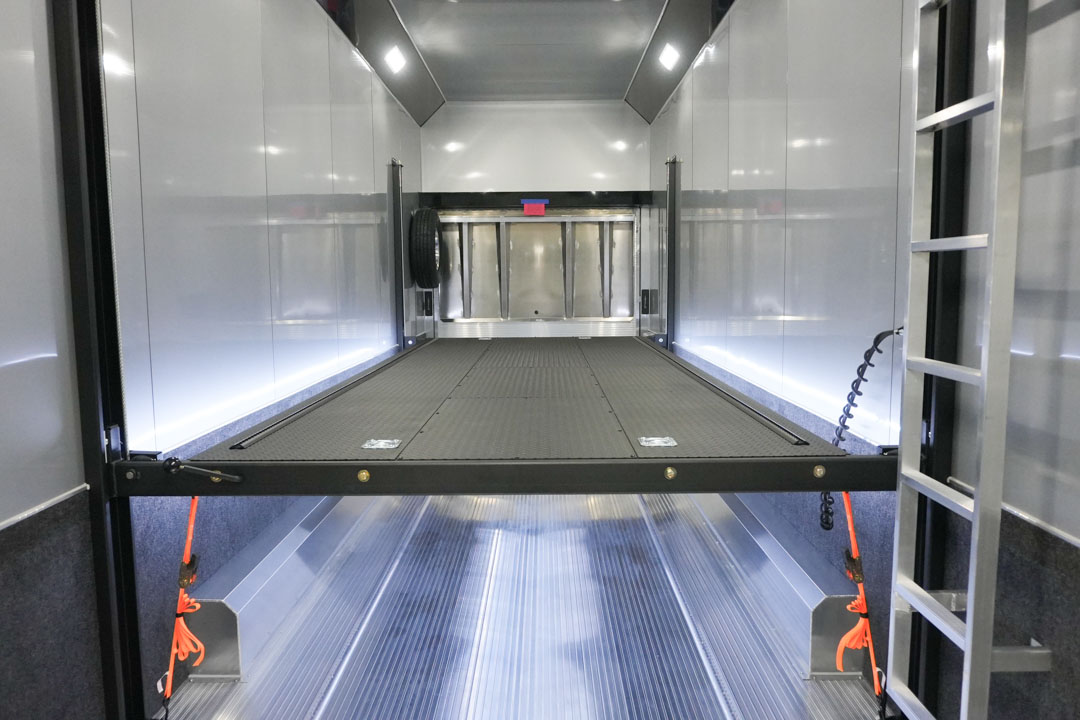

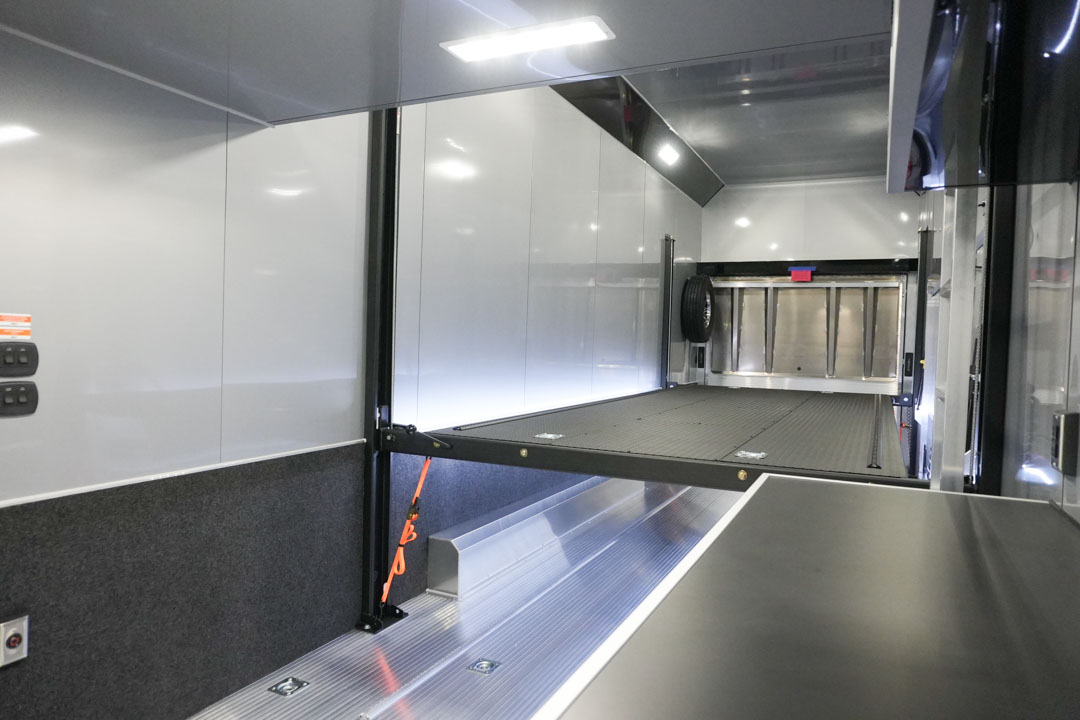

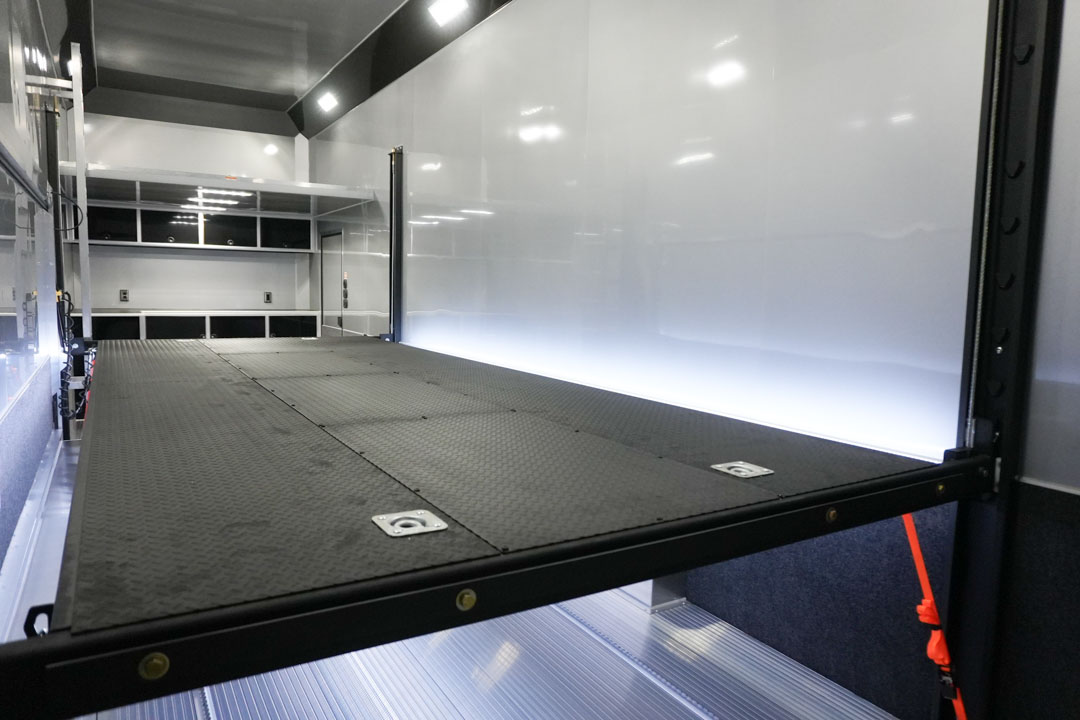

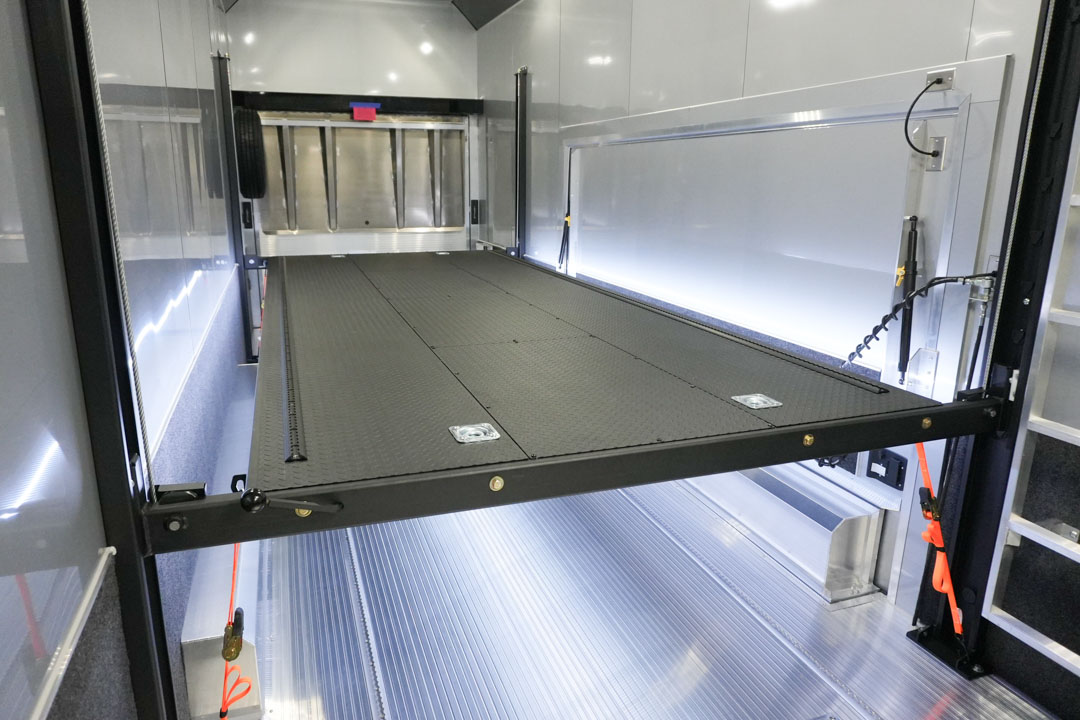

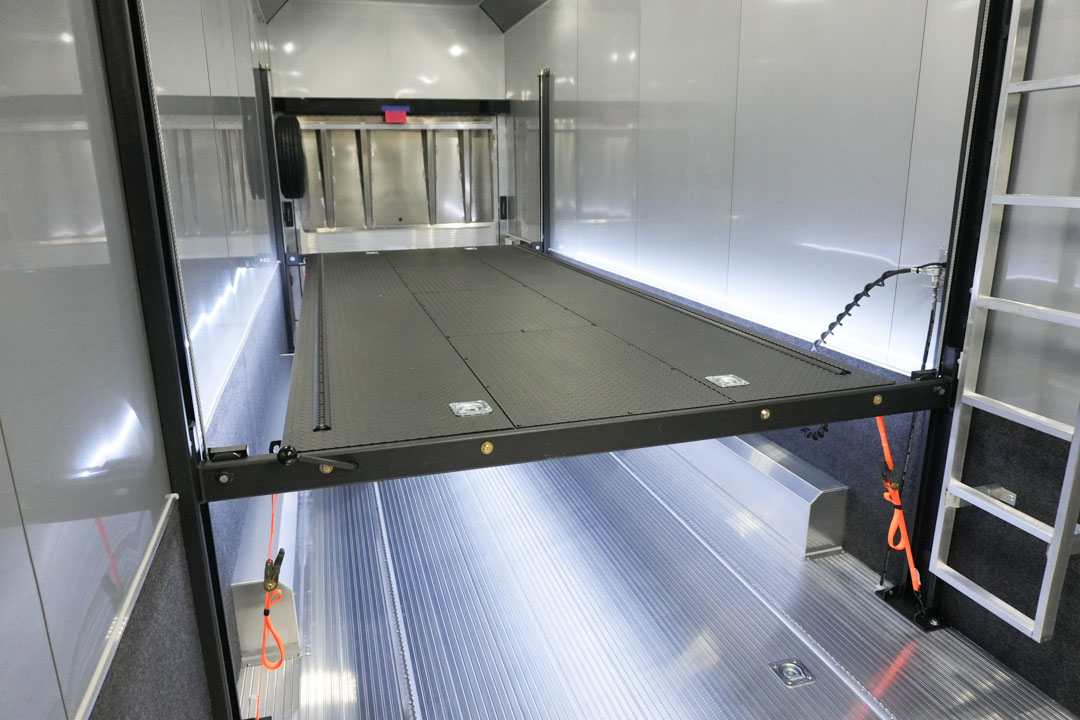

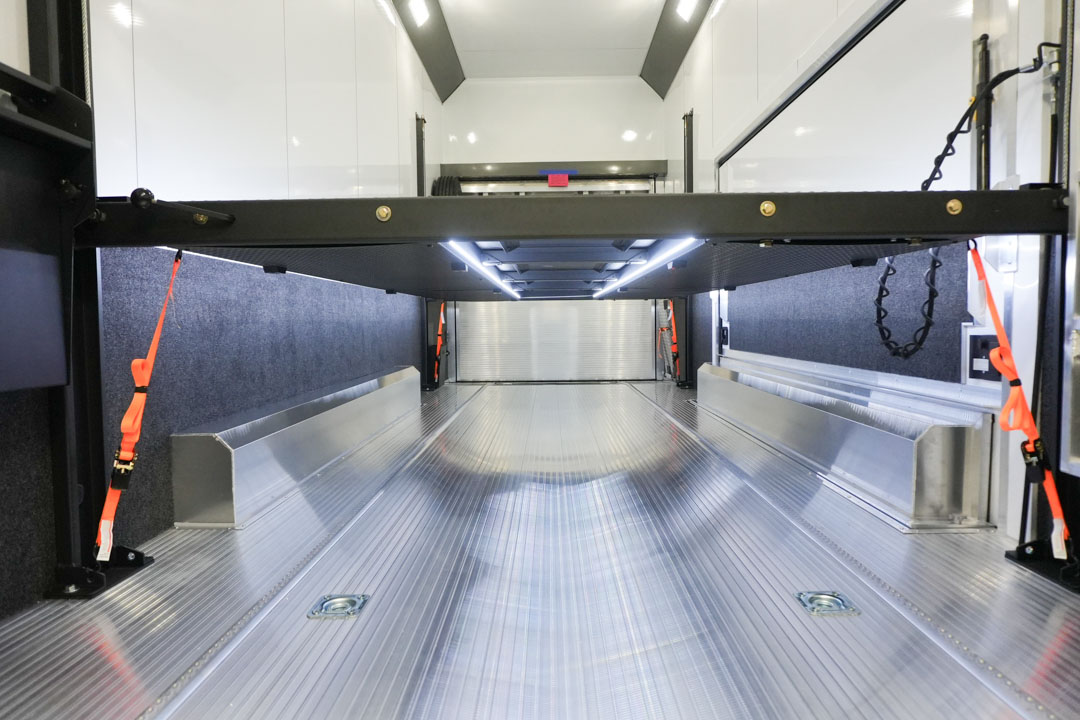

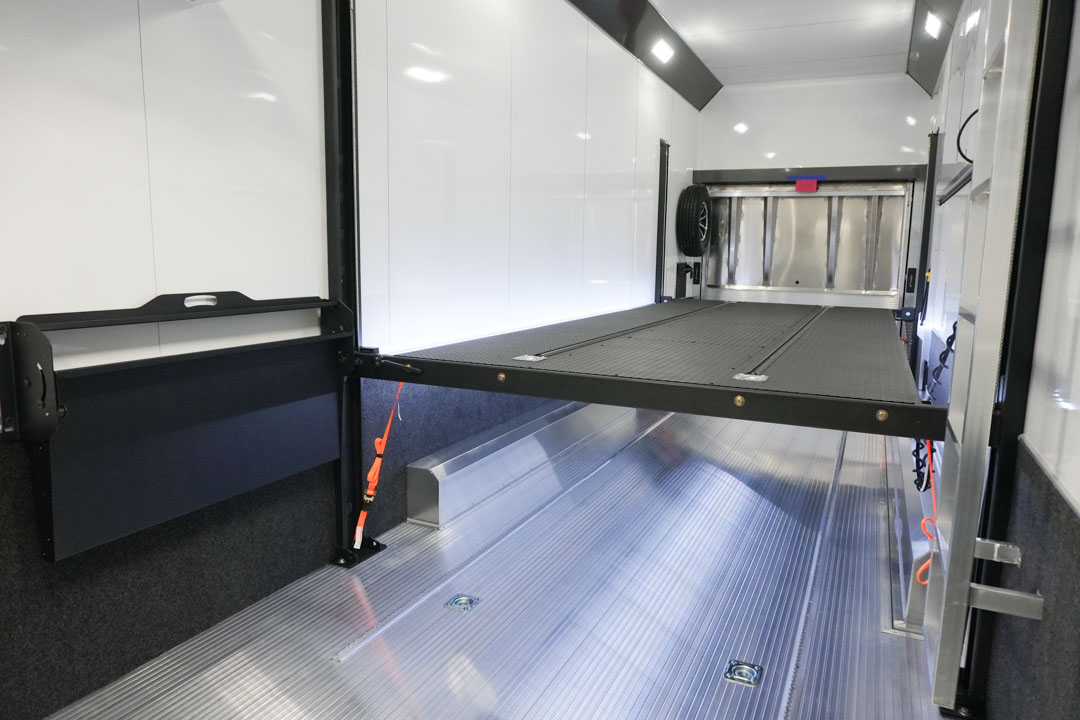

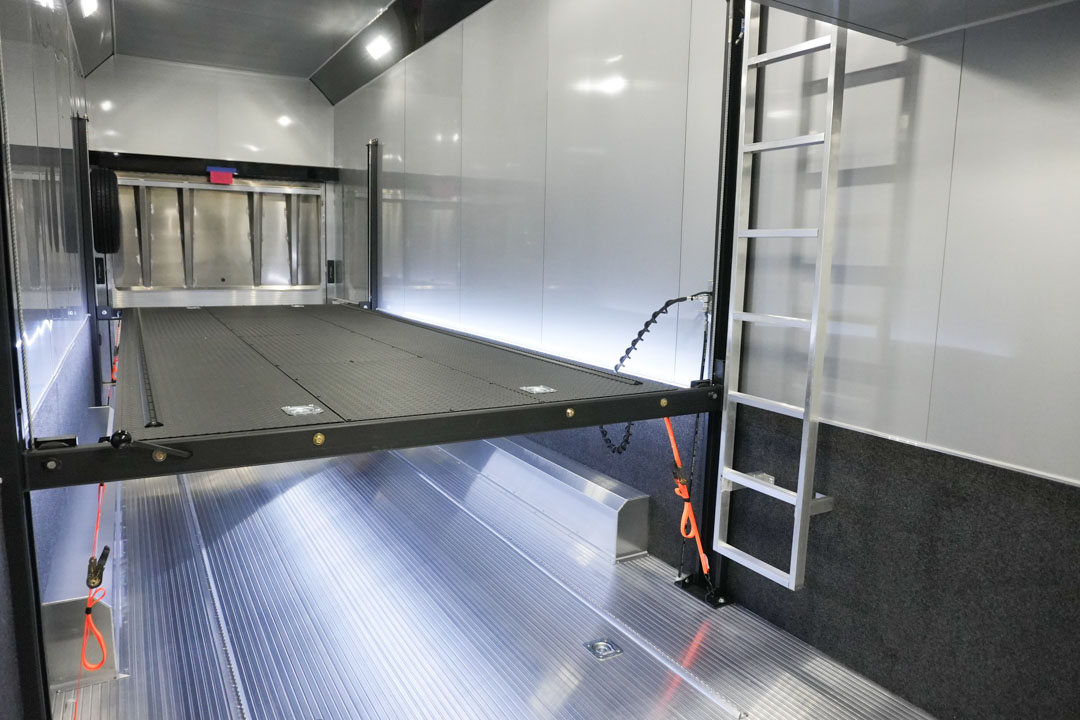

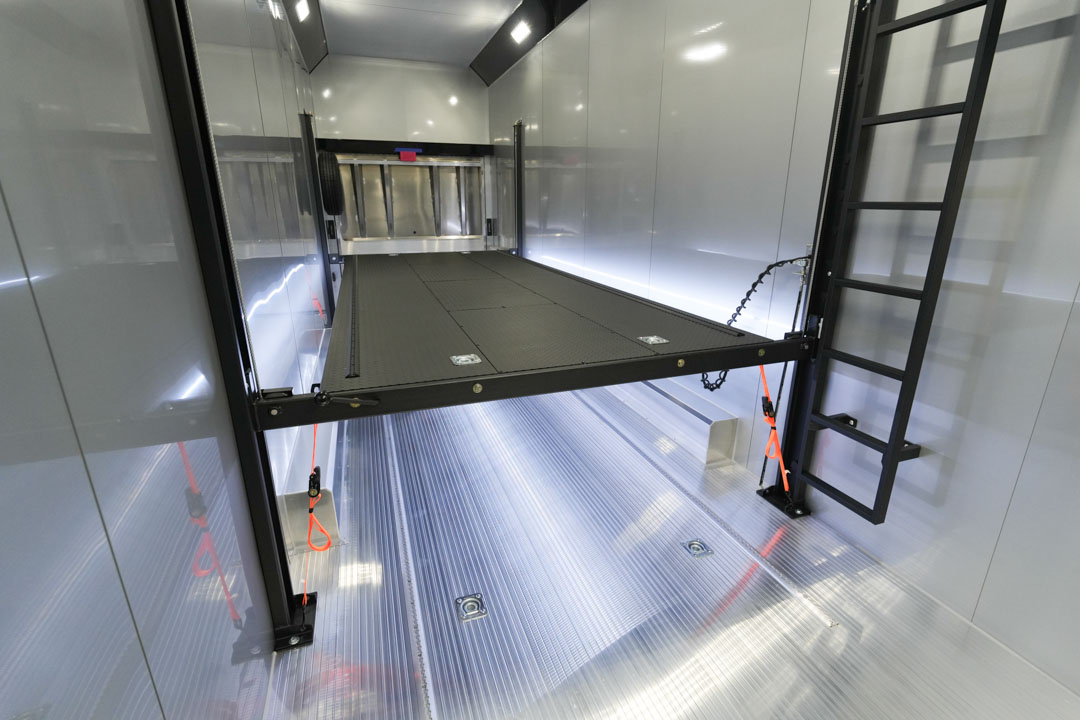

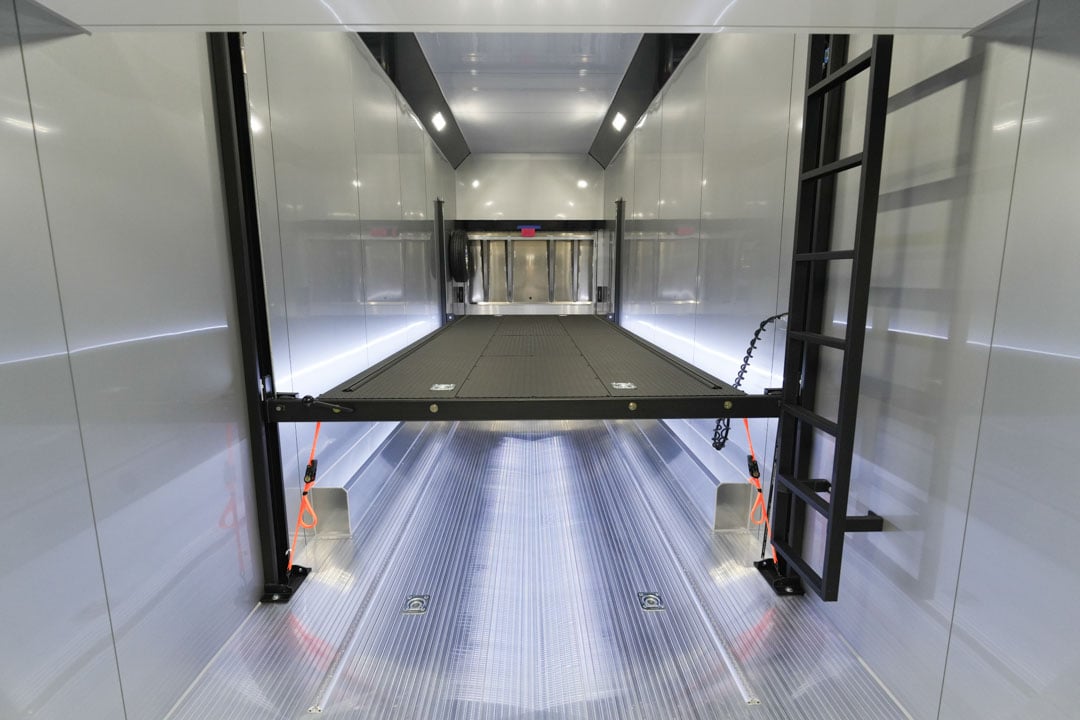

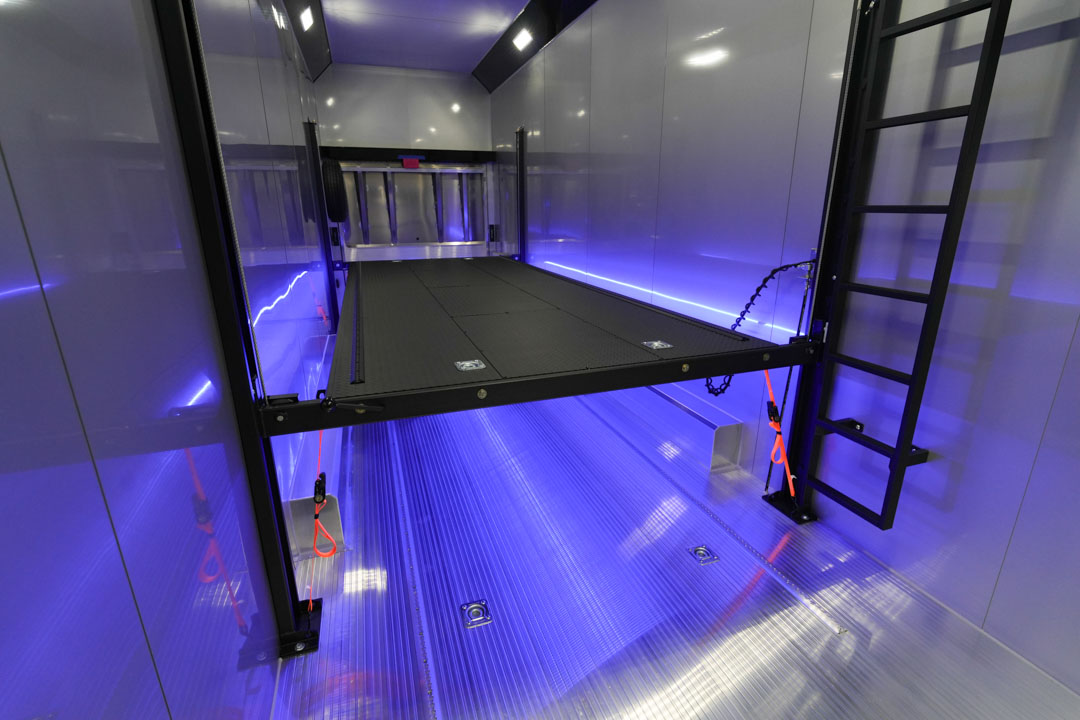

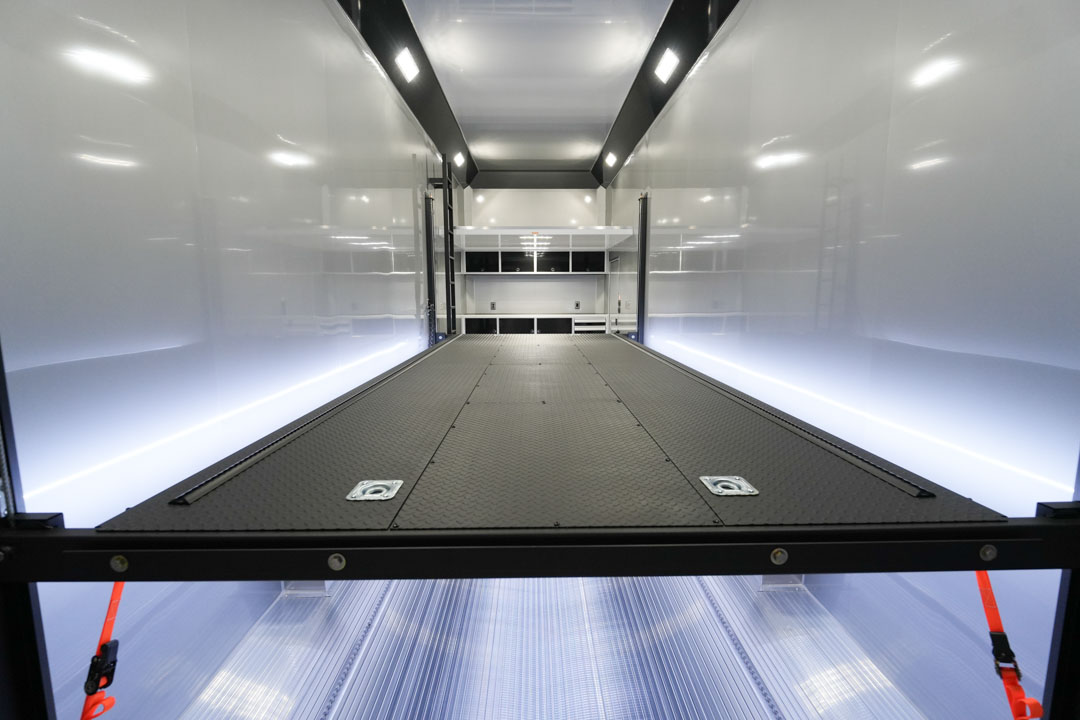

| 14' EZ-Load Tilting Split Rail Lift (6000# Capacity) |
| (4) Additional 5000# Recessed D-Rings on Lift |
| Low Profile Lift Posts |

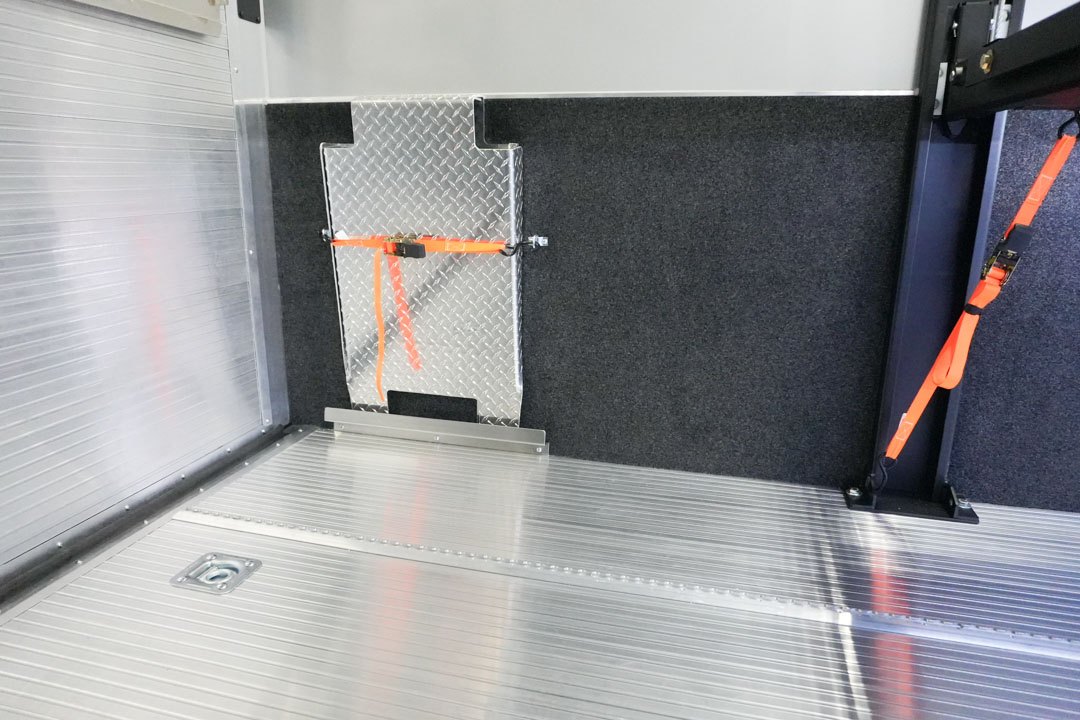

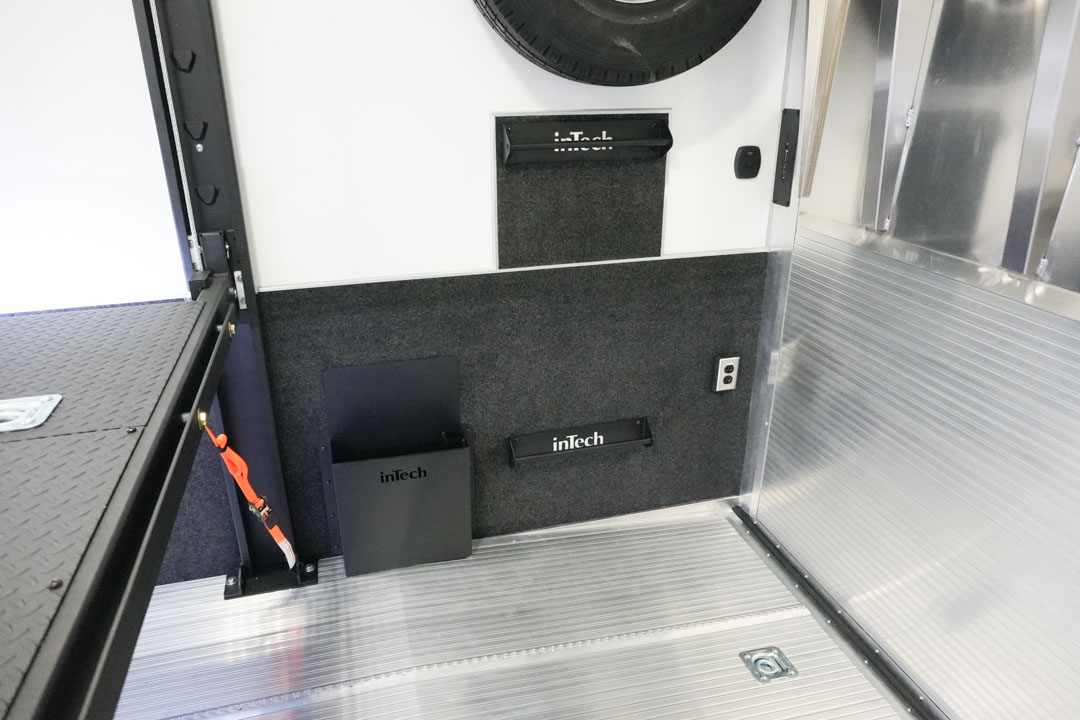

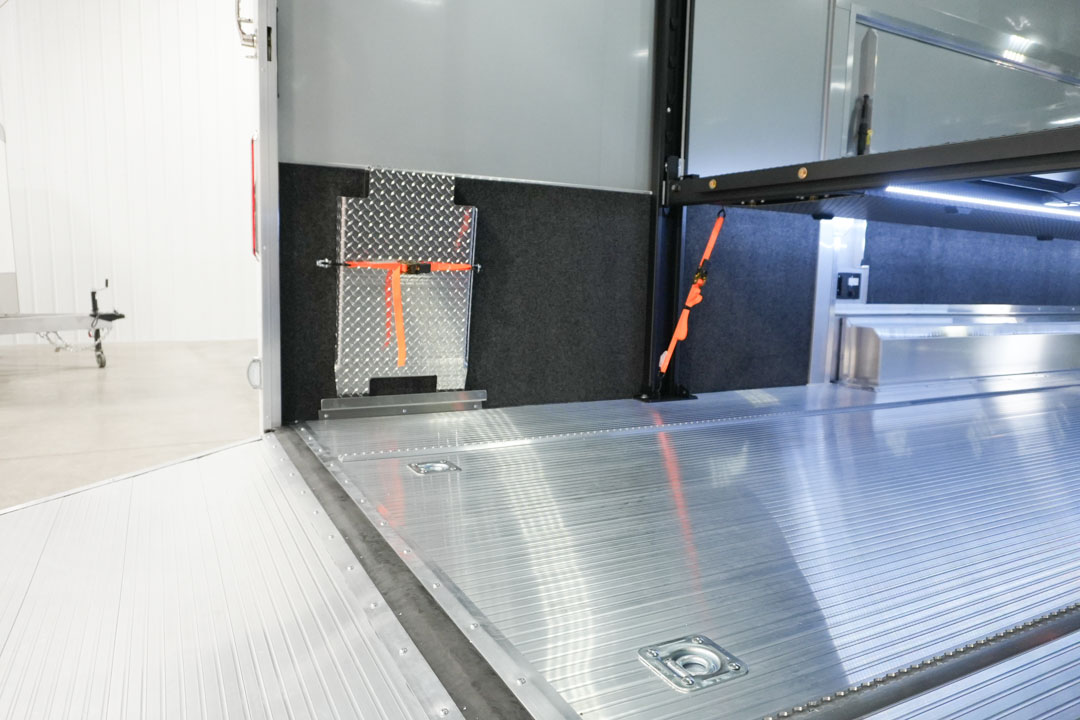

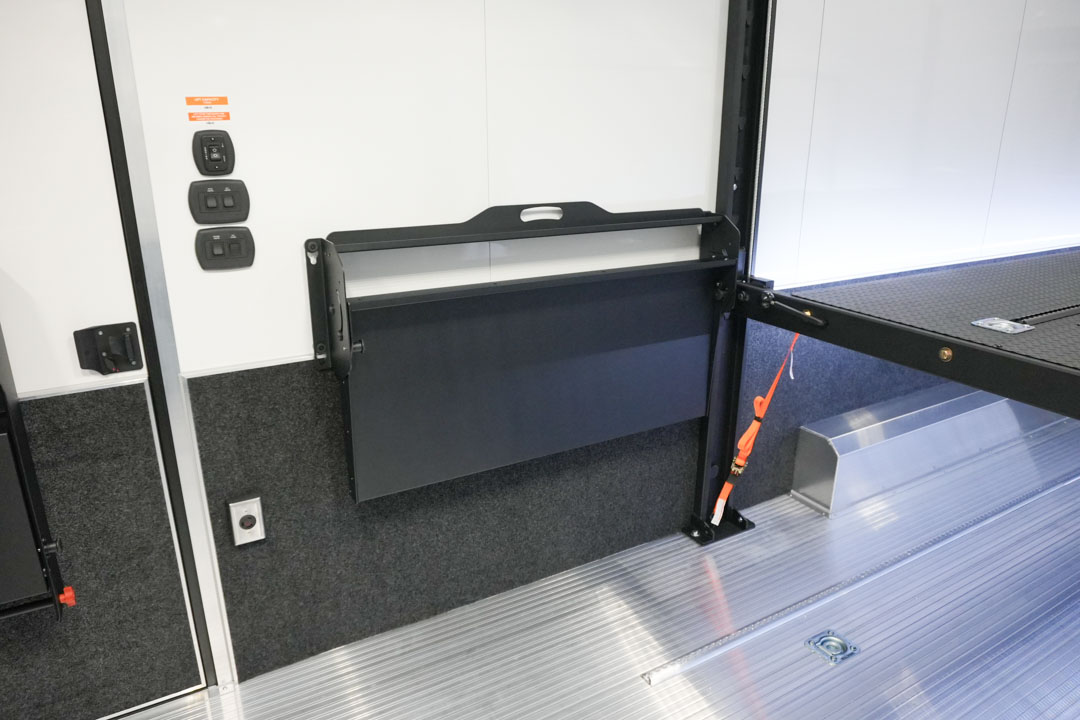

| 32” Removable Lift Ramps w/ Wall Storage |

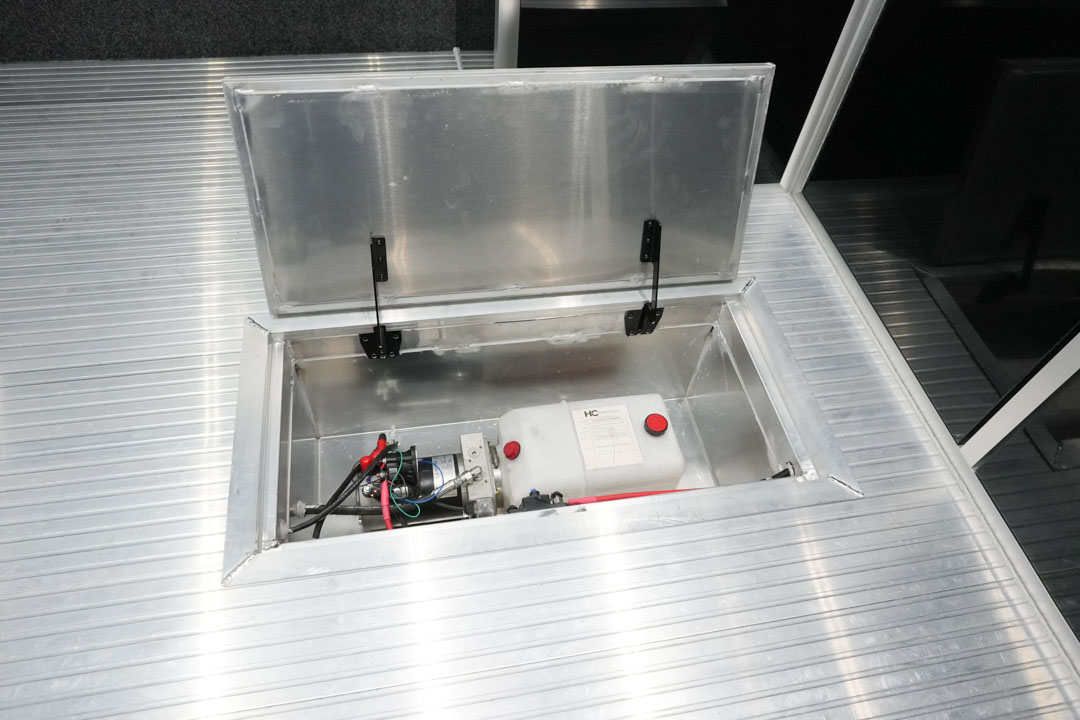

| In Floor Hydraulic Lift Pump |
| Underside of Lift Finished w/ Aluminum |
| Rear Manual Stabilizer Jacks |

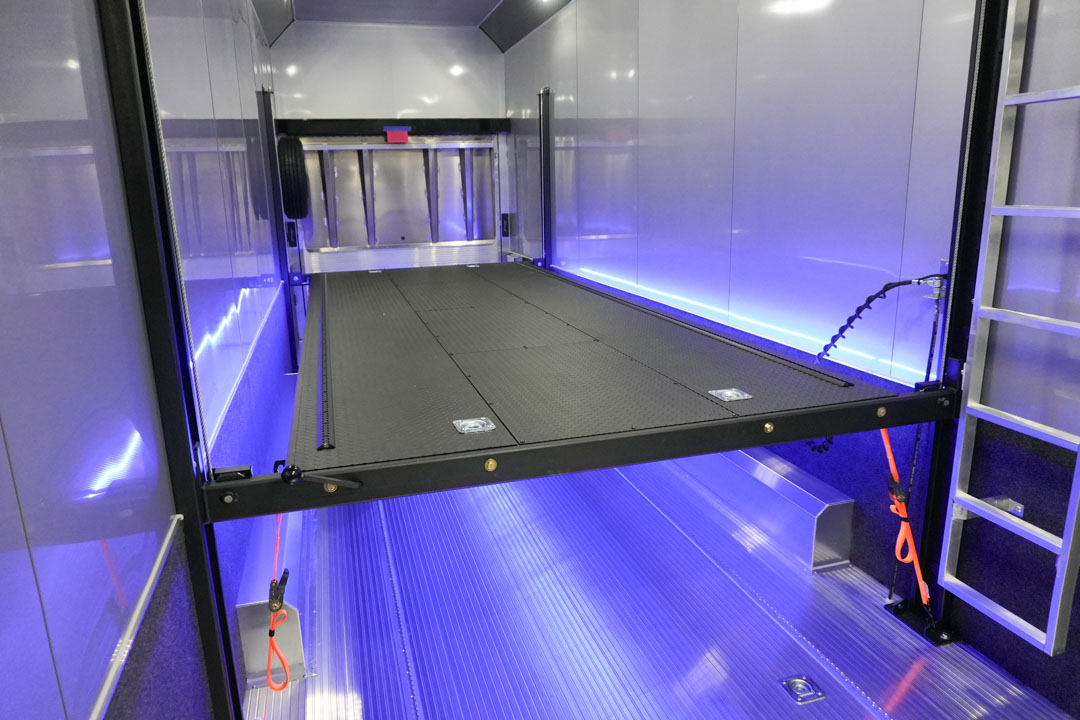

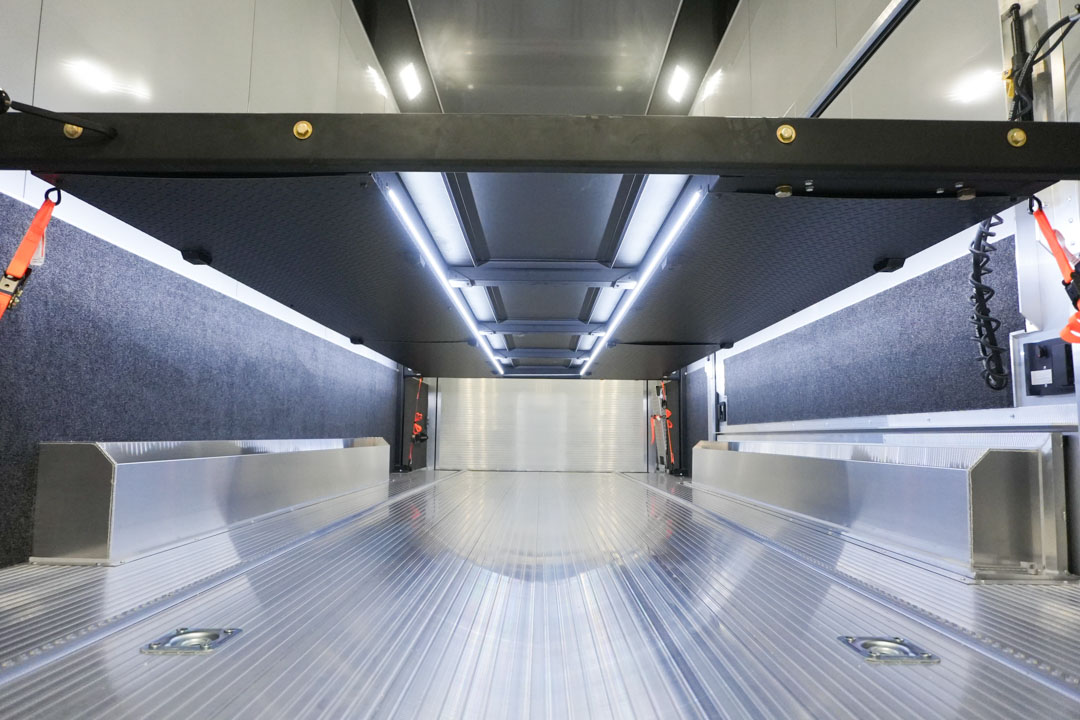

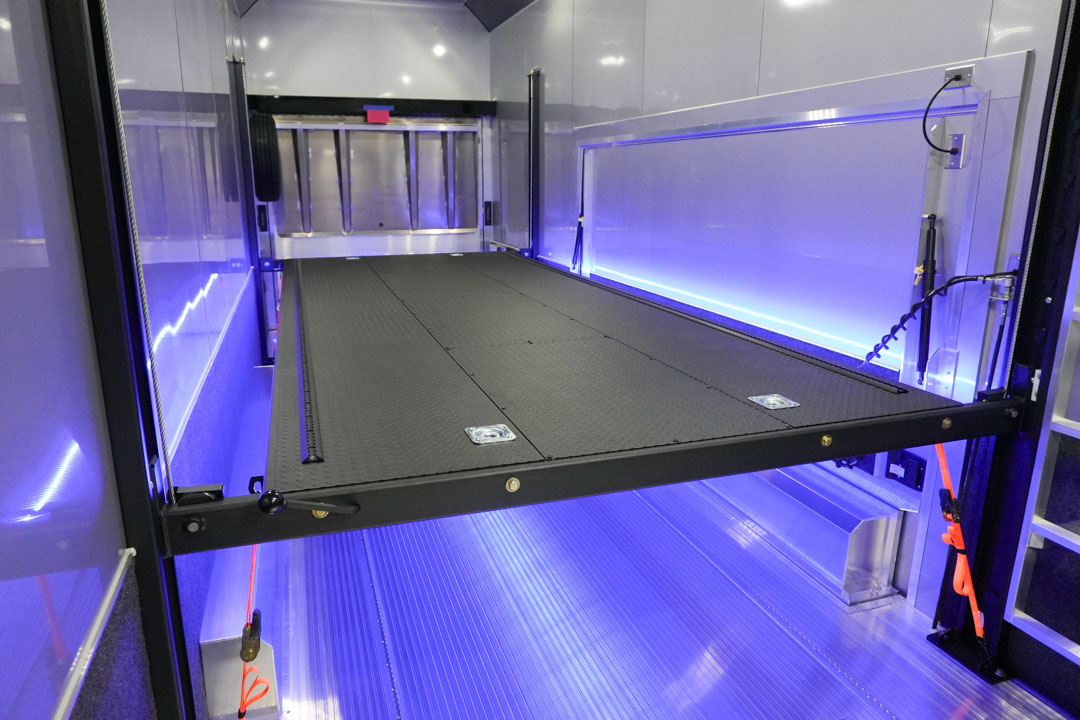

| 12V LED Light Strip Under Lift |
| Exterior |
|---|
| .040 Aluminum Skin |

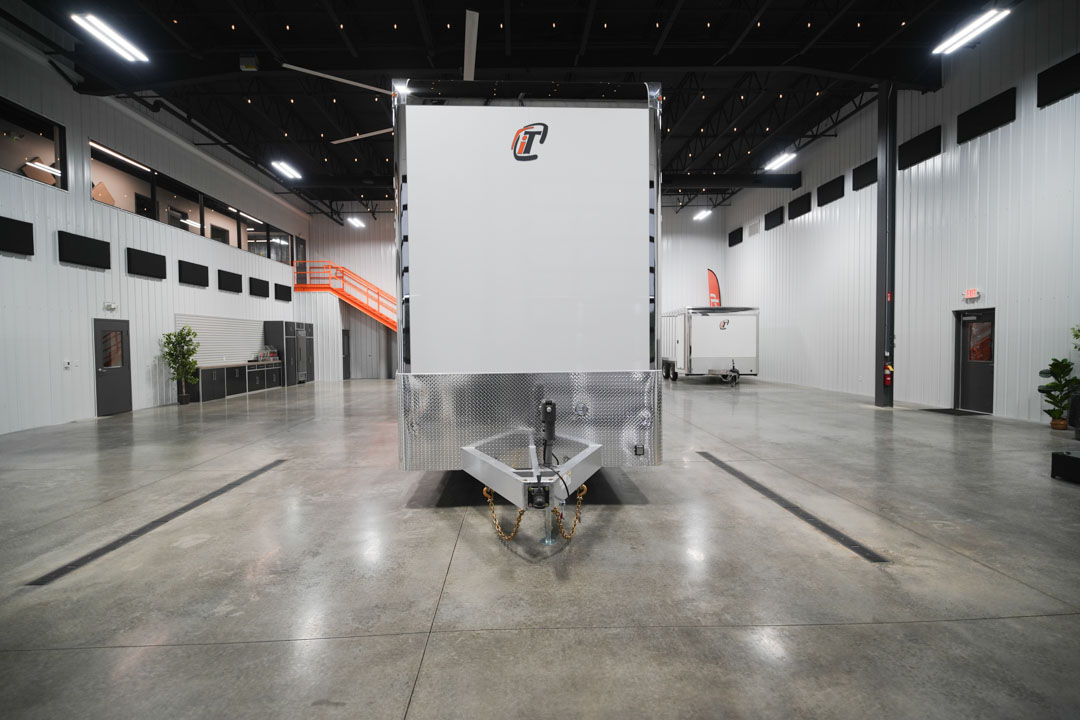

| Premium Tongue Package |
| LED Exterior Floor Lights |

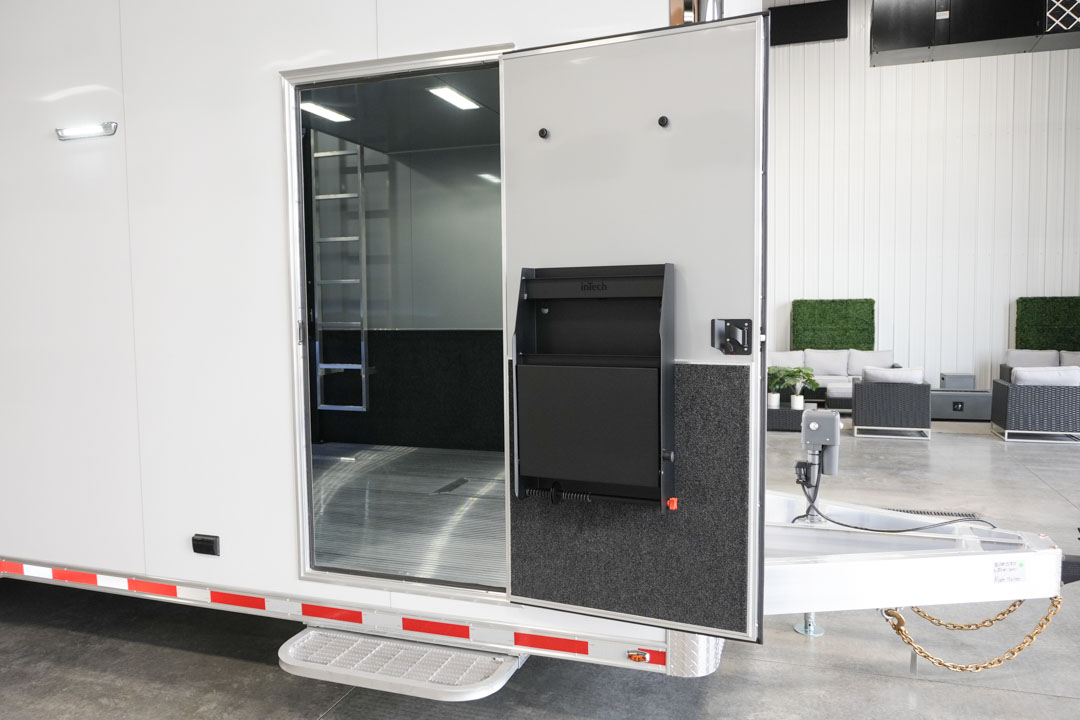

| Slide Out Aluminum Step at Entrance Door |
| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |
| Stainless Steel #8 High Polish Front Verticals & Radius |
| Polished Cast Aluminum Rear Corners |

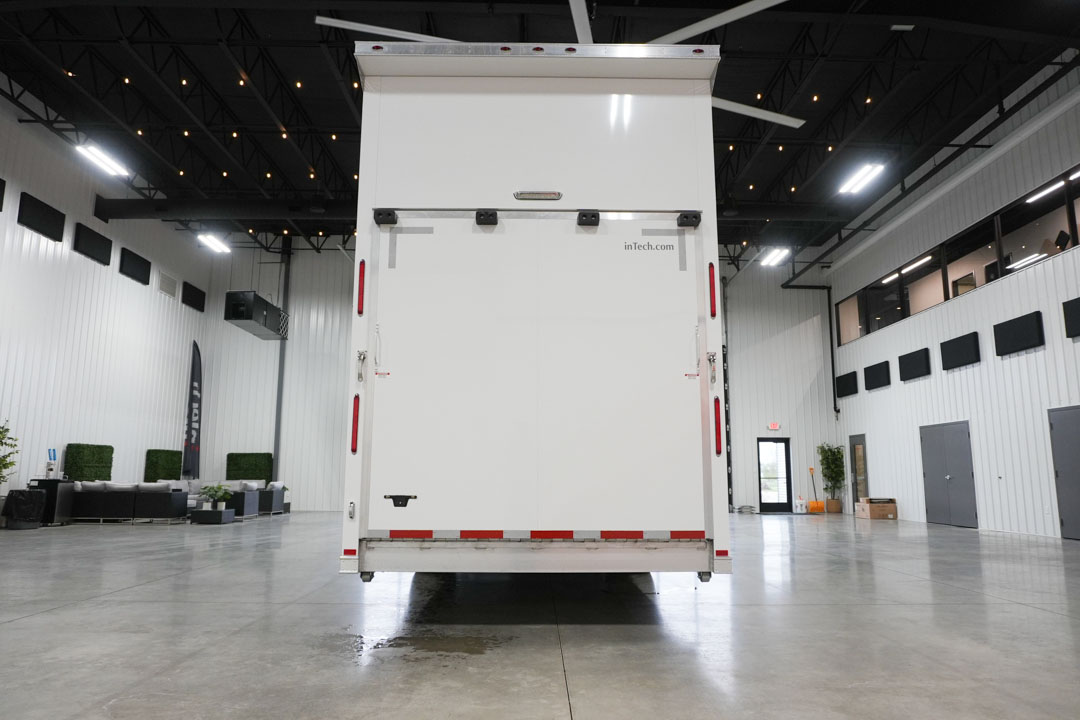

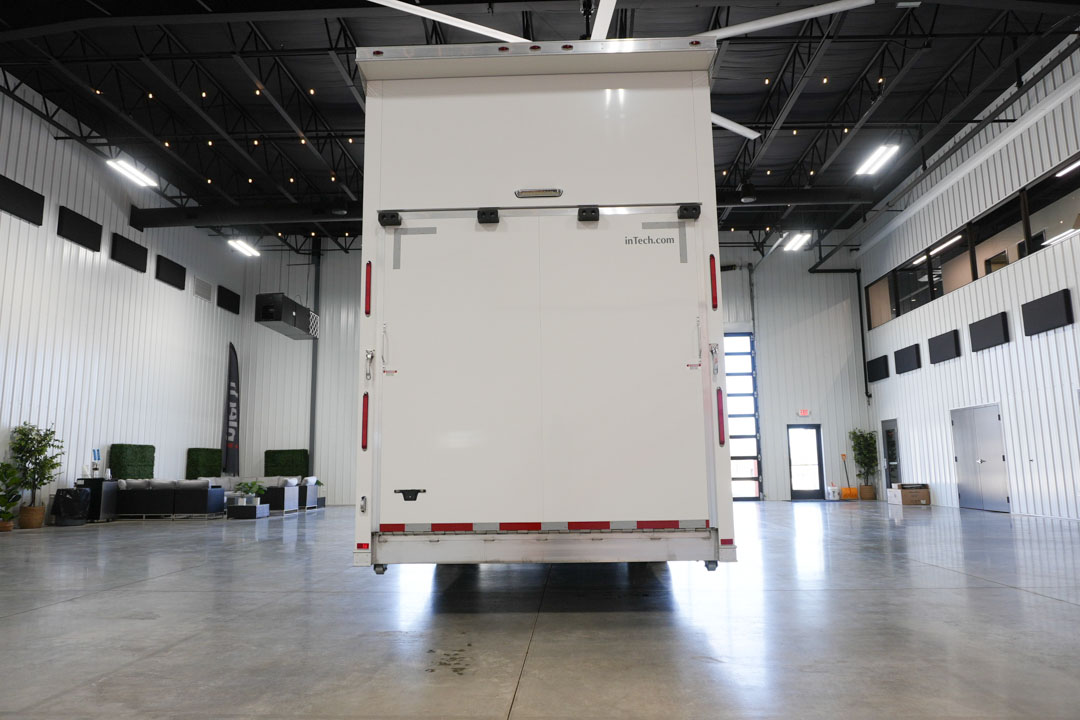

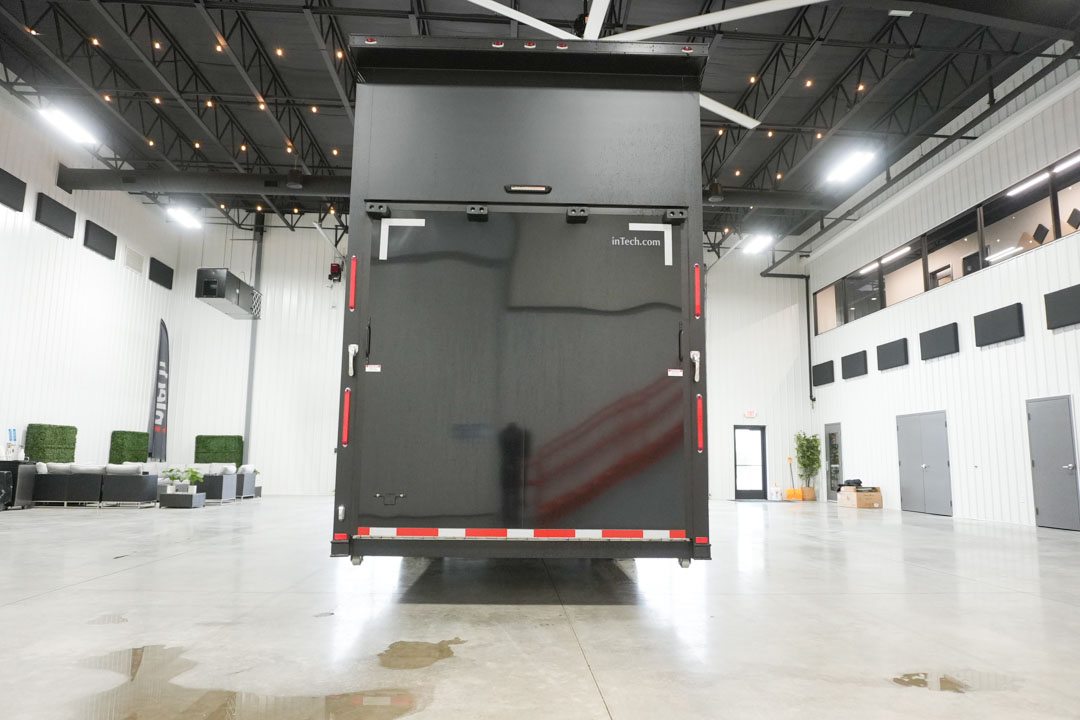

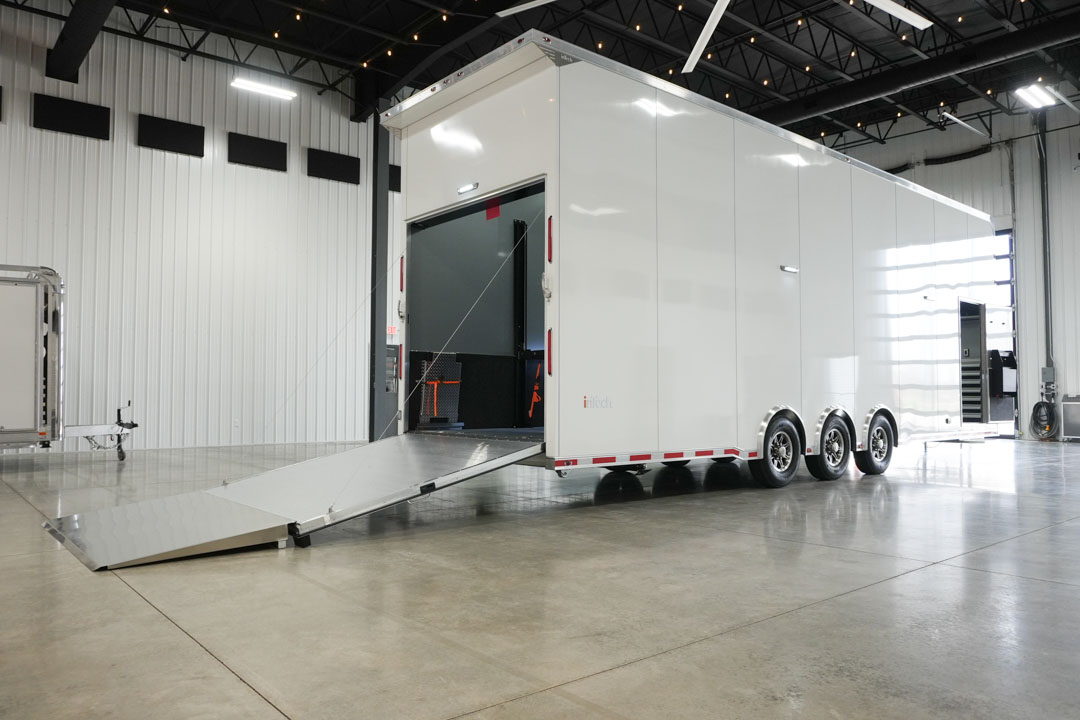

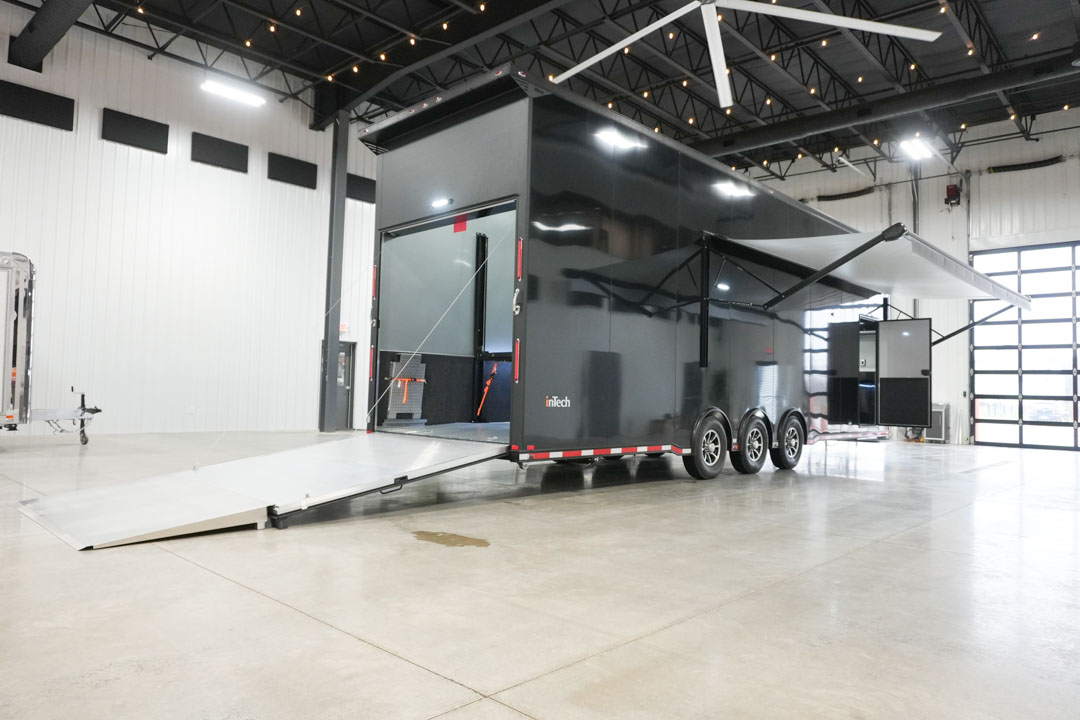

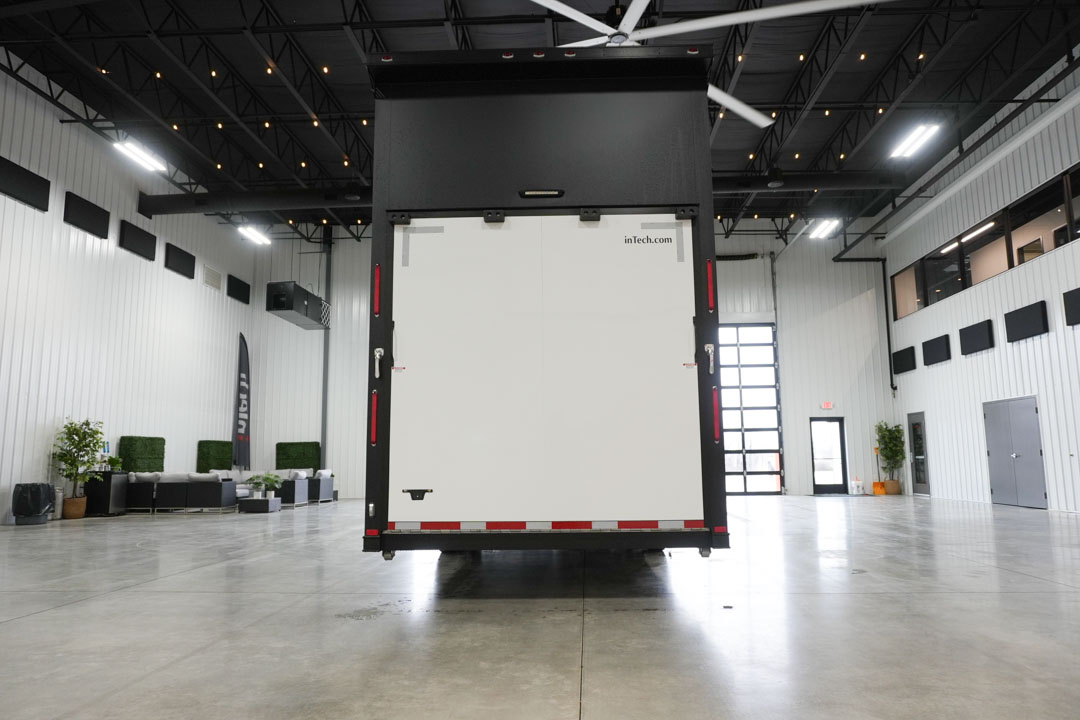

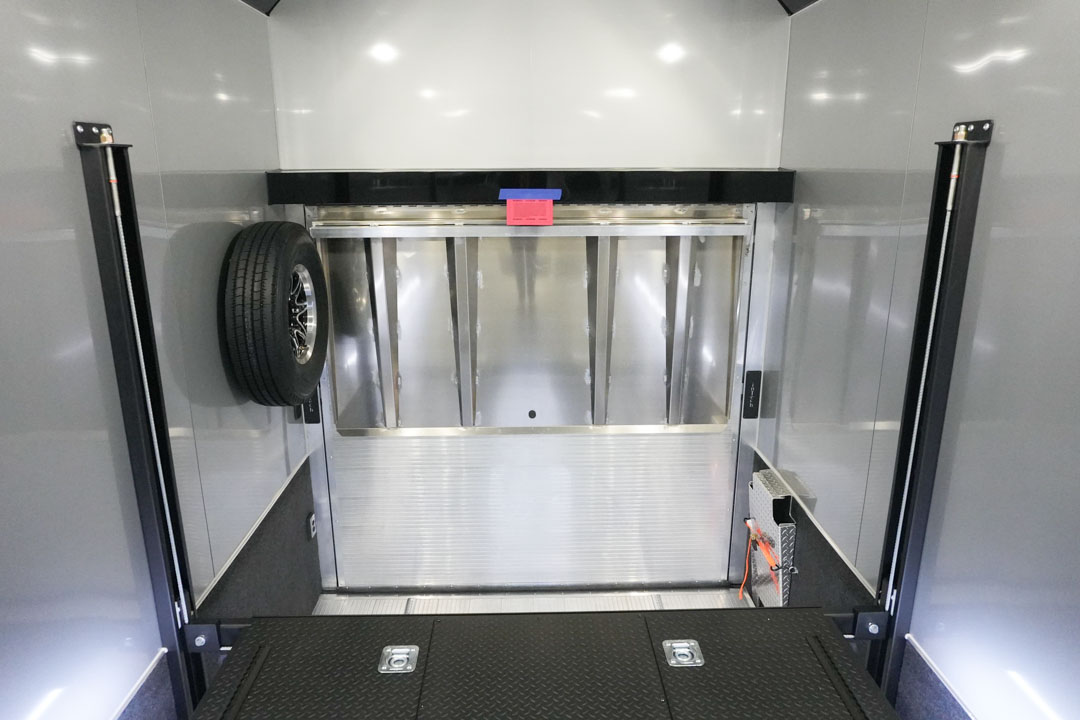

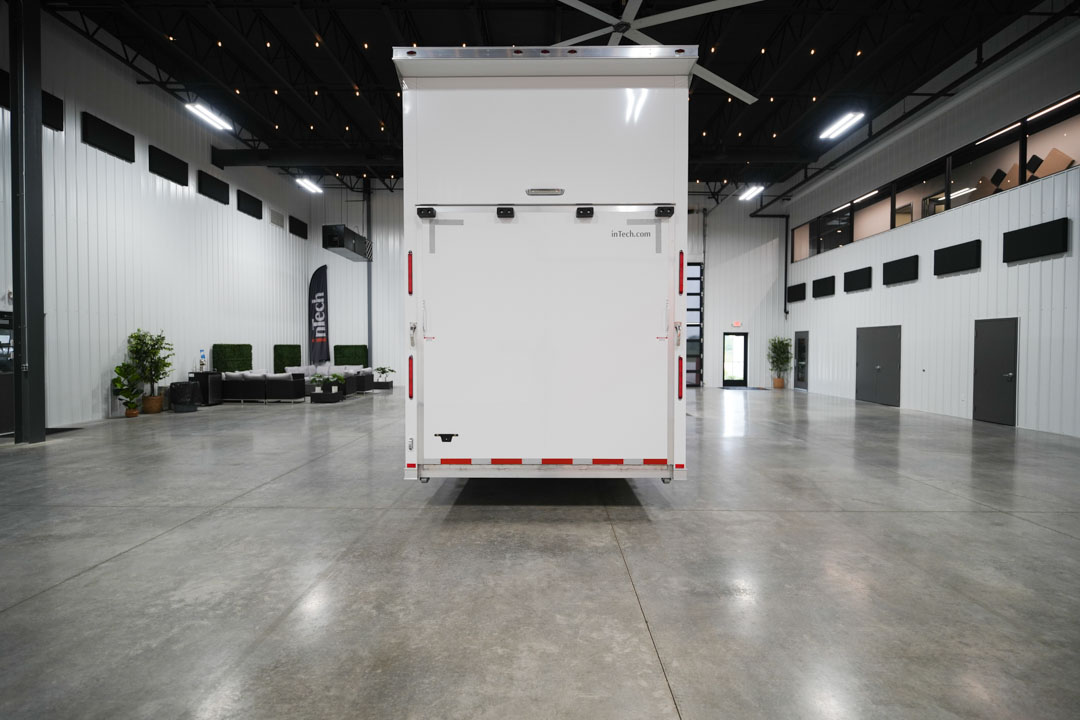

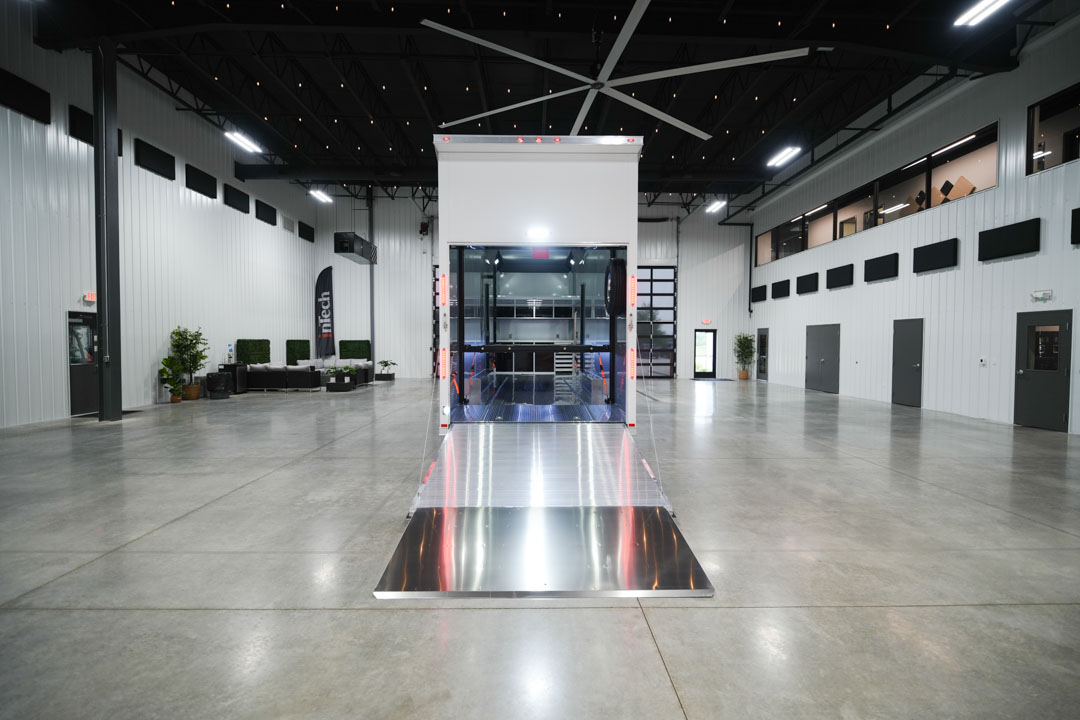

| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 36" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter w/ Charger |
| Motorbase Plug with 25' Shore Cord |
GVWR
18,000 lbs
Est. Payload
Up to 10,700 lbs
Axle Size
(3) 6,000#
Interior Height
11'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Overall Height - 12' 11 5/8"
- (B) Ramp Door Height - 7' 6 1/2"
- (C) Interior Height - 11'
- (D) Interior Length - 25' 10"
- (E) Ground Clearance - 13" Approx.
- (F) Overall Length - 34' 1 7/8"
- (G) Between Wheel Wells - 6' 9 1/2"
- (H) Box Width - 8' 4"
- (I) Box Length - 28' 2"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |
| Triple 6000# Dexter Torsion Axles with ST235/80R16 Tires |
| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 4500# Power Tongue Jack |
| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |
| Smooth Aluminum Wheel Boxes with Chamfered Edge |
| Spread Axle Design with Individual Fenderettes and Wheel Skirt |
| Interior |
|---|
| .030 Screwless Aluminum Walls & Ceiling |
| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |
| 11' Interior Height |
| (4) 5000# Recessed D-Rings in Main Floor |
| 3' Beavertail |
| 8' Upper Aluminum Cabinet W/ Top Hinged Doors & Shocks |
| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (6) 18” 12v Ceiling Lights with Switch |
| Stacker Features |
|---|
| 14' EZ-Load Tilting Split Rail Lift (6000# Capacity) |
| (4) Additional 5000# Recessed D-Rings on Lift |
| Low Profile Lift Posts |
| 32” Removable Lift Ramps w/ Wall Storage |
| In Floor Hydraulic Lift Pump |
| Underside of Lift Finished w/ Aluminum |
| Rear Manual Stabilizer Jacks |
| 12V LED Light Strip Under Lift |
| Exterior |
|---|
| .040 Aluminum Skin |
| Premium Tongue Package |
| LED Exterior Floor Lights |
| Slide Out Aluminum Step at Entrance Door |
| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |
| Stainless Steel #8 High Polish Front Verticals & Radius |
| Polished Cast Aluminum Rear Corners |
| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 36" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter w/ Charger |
| Motorbase Plug with 25' Shore Cord |
GVWR
21,000 lbs
Est. Payload
Up to 12,850 lbs
Axle Size
(3) 7,000#
Interior Height
11'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Overall Height - 13' 5/8"
- (B) Ramp Door Height - 7' 6 1/2"
- (C) Interior Height - 11'
- (D) Interior Length - 29' 10"
- (E) Ground Clearance - 14" Approx.
- (F) Overall Length - 38' 1 7/8"
- (G) Between Wheel Wells - 6' 9 1/2"
- (H) Box Width - 8' 4"
- (I) Box Length - 32' 2"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |
| Triple 7000# Dexter Torsion Axles with ST235/85R16 Tires |
| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 4500# Power Tongue Jack |
| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |
| Smooth Aluminum Wheel Boxes with Chamfered Edge |
| Spread Axle Design with Individual Fenderettes and Wheel Skirt |
| Interior |
|---|
| .030 Screwless Aluminum Walls & Ceiling |
| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |
| 11' Interior Height |
| (4) 5000# Recessed D-Rings in Main Floor |
| 4' Beavertail |
| 8' Upper Aluminum Cabinet W/ Top Hinged Doors & Shocks |
| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (8) 18” 12v Ceiling Lights with Switch |
| Stacker Features |
|---|
| 16' EZ-Load Tilting Split Rail Lift (6000# Capacity) |
| (4) Additional 5000# Recessed D-Rings on Lift |
| Low Profile Lift Posts |
| 32” Removable Lift Ramps w/ Wall Storage |
| In Floor Hydraulic Lift Pump |
| Underside of Lift Finished w/ Aluminum |
| Rear Manual Stabilizer Jacks |
| 12V LED Light Strip Under Lift |
| Exterior |
|---|
| .040 Aluminum Skin |
| Premium Tongue Package |
| LED Exterior Floor Lights |
| Slide Out Aluminum Step at Entrance Door |
| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |
| Stainless Steel #8 High Polish Front Verticals & Radius |
| Polished Cast Aluminum Rear Corners |
| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 36" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter w/ Charger |
| Motorbase Plug with 25' Shore Cord |
Options Gallery

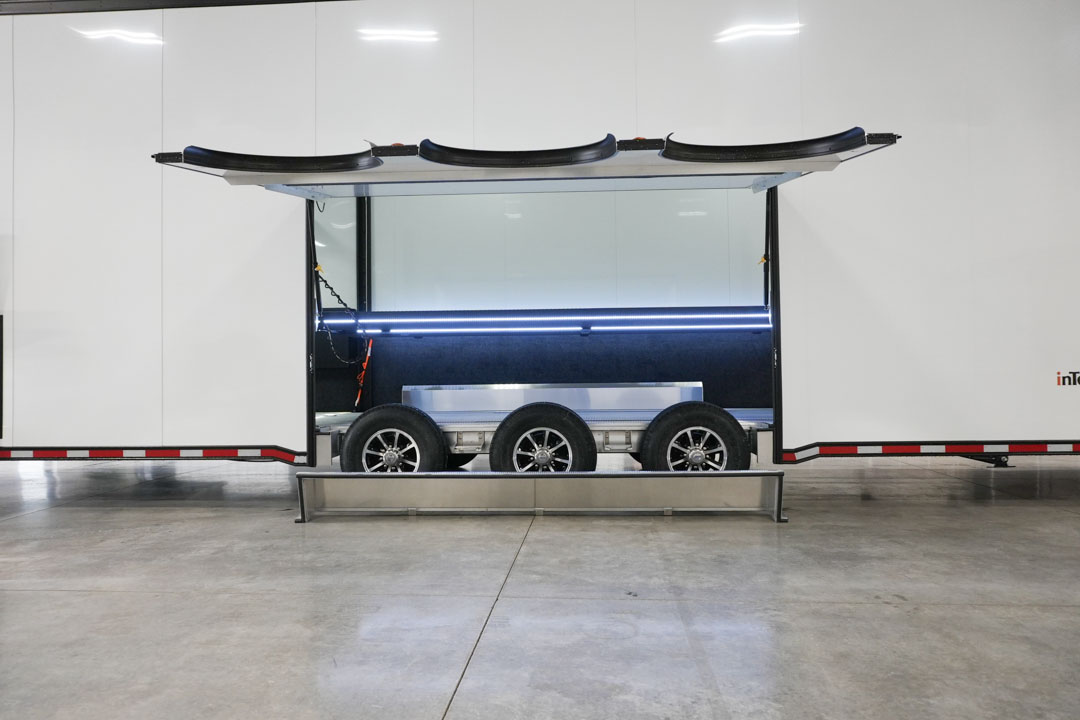

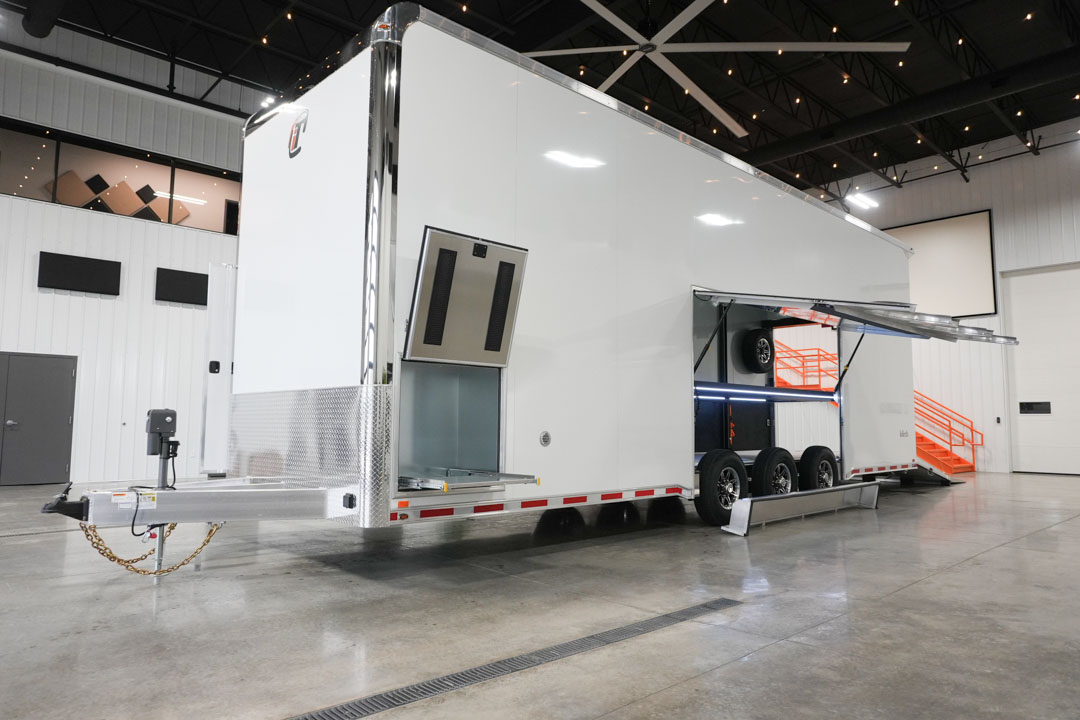

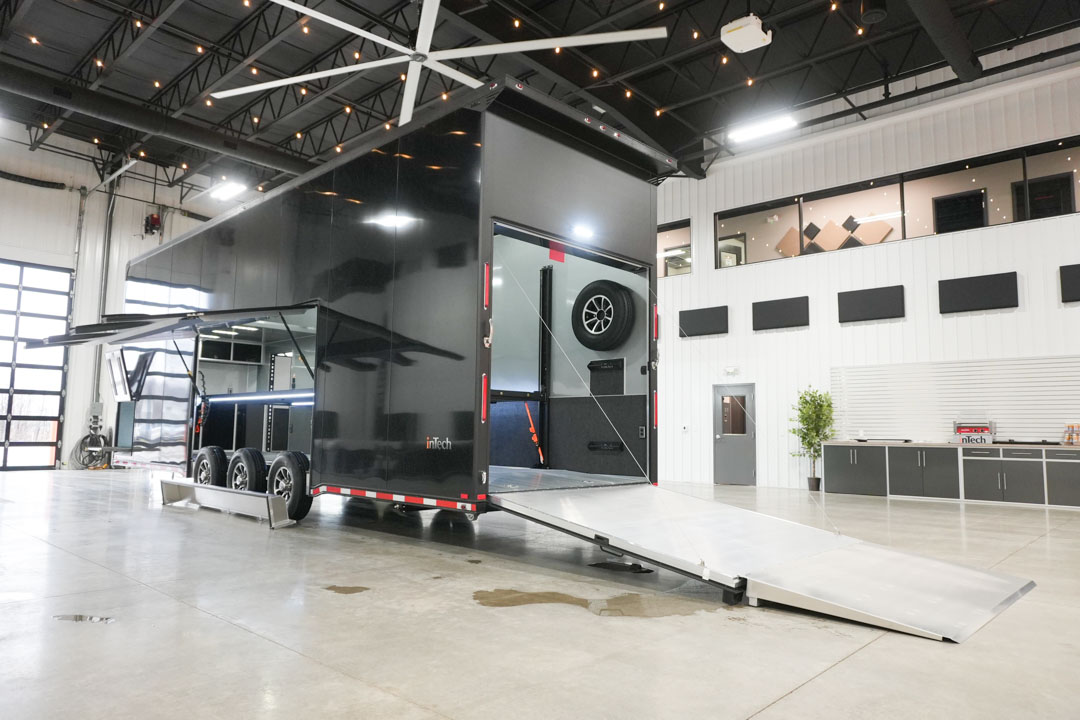

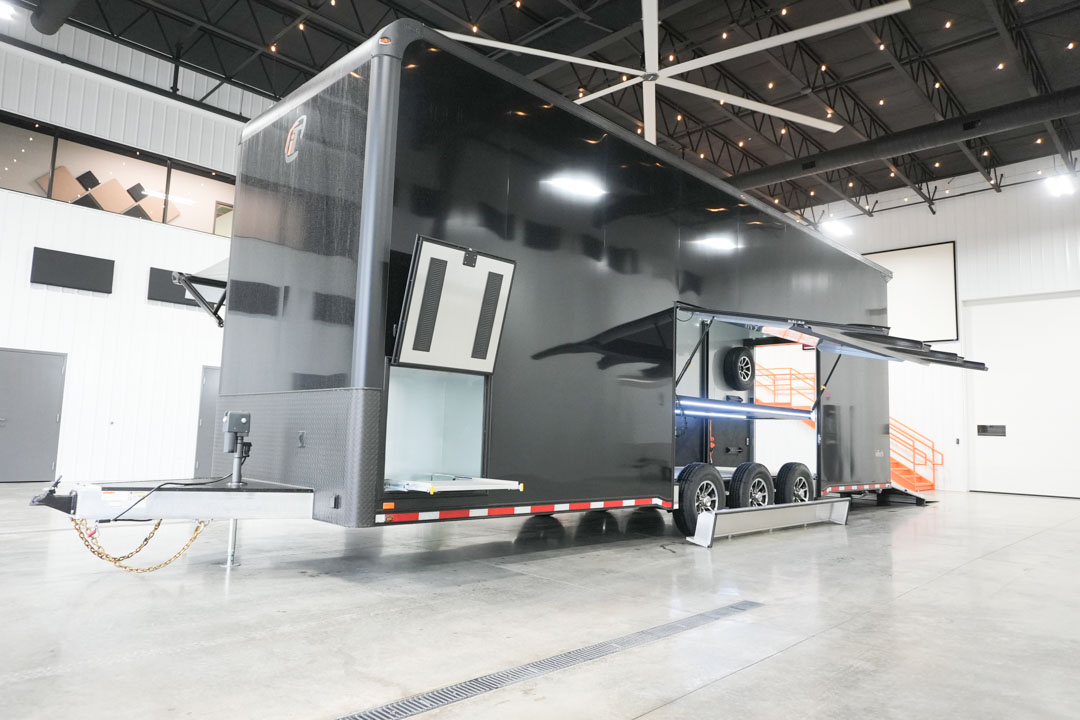

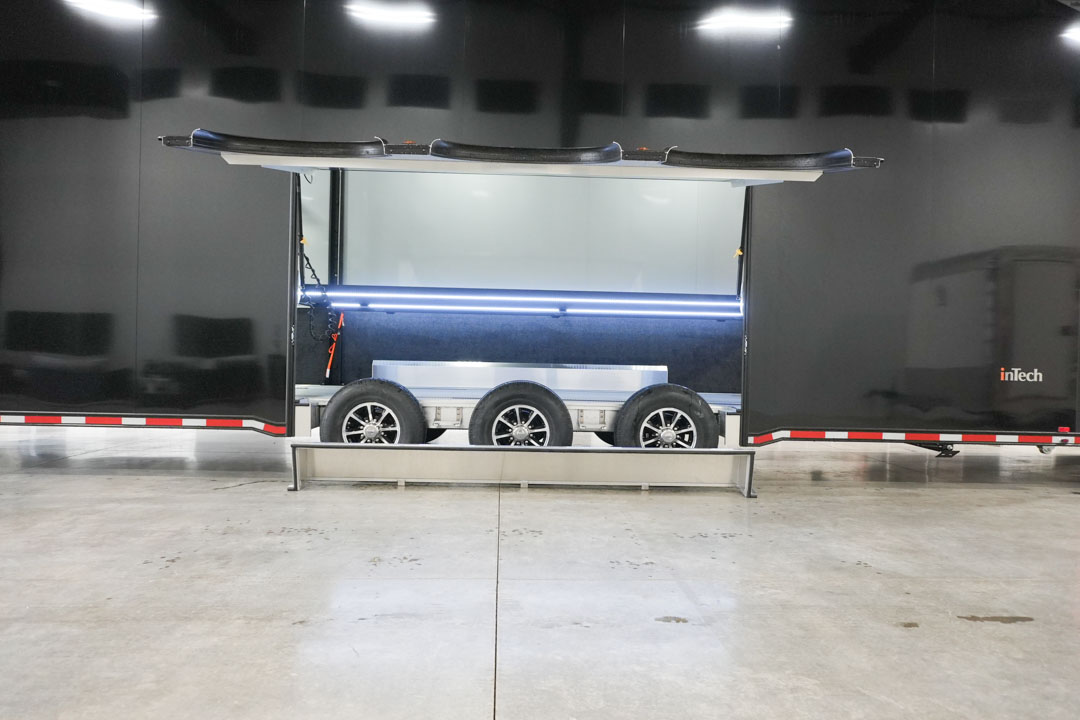

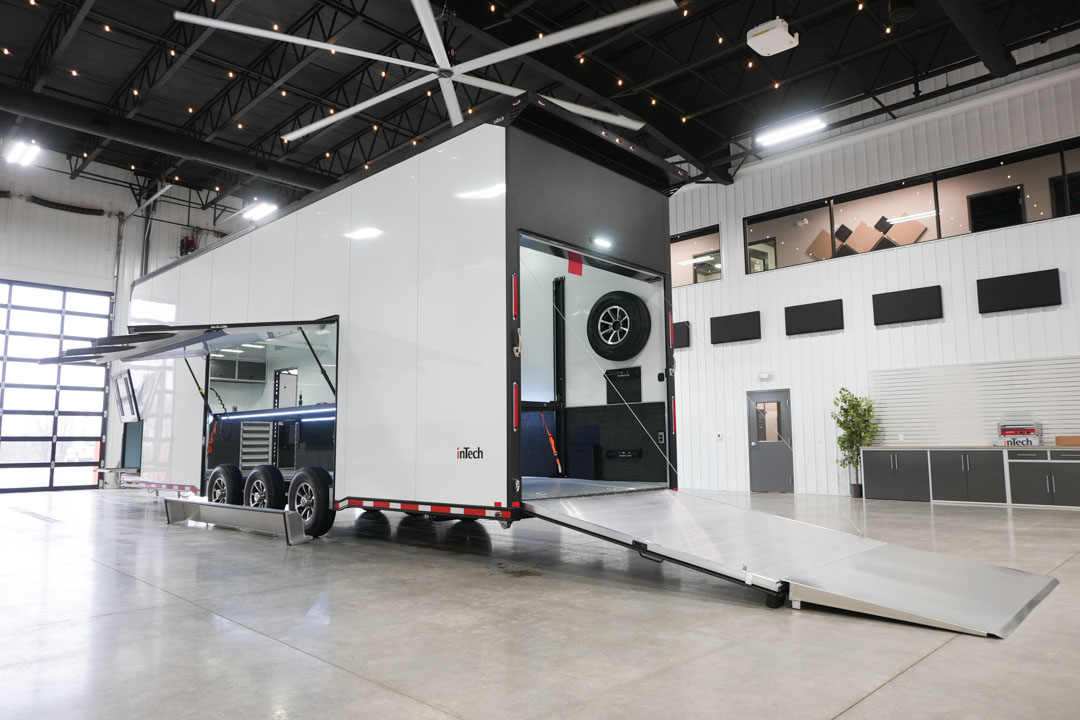

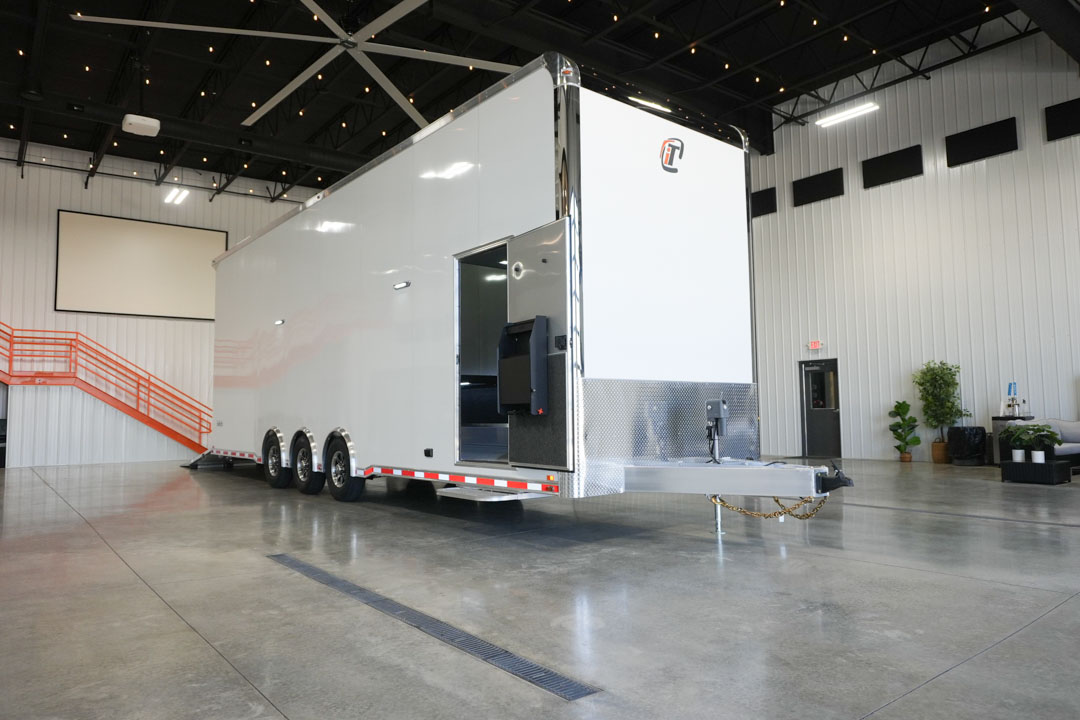

Full Access Escape Door
Simplify the loading and unloading process by adding a 10' x 6' full access escape door. Made even easier with our removable wheel box and integrated step between the axles.

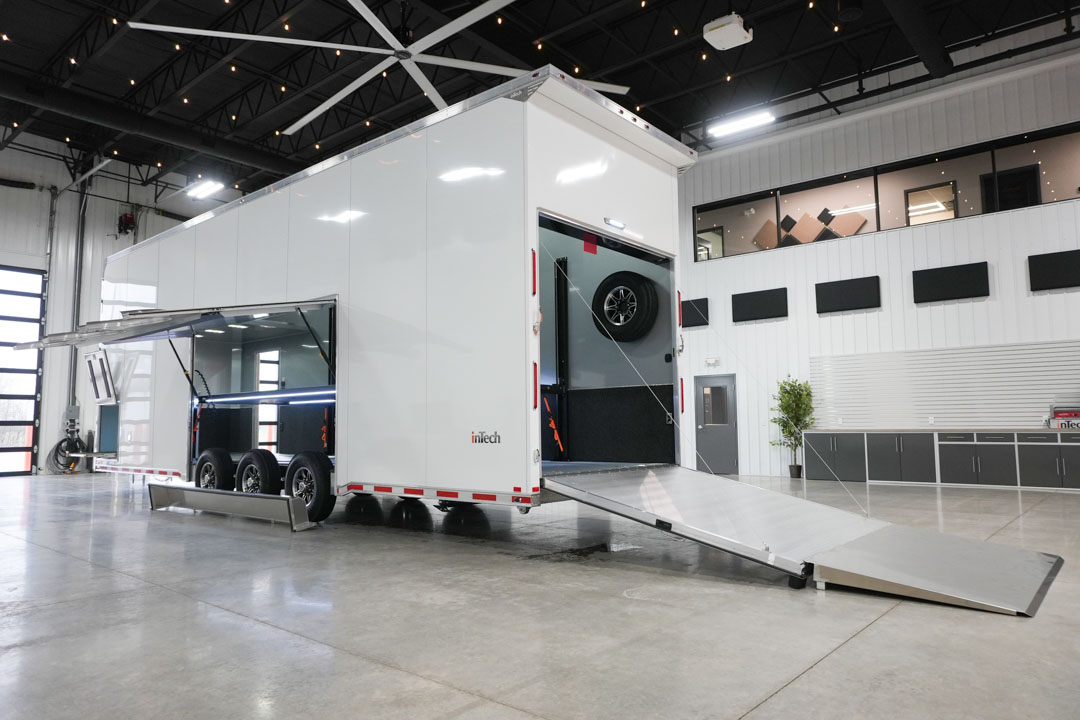

Full Width 4' Ramp Extension
Our ramp extension with 4” bumpers will significantly decrease your angle of approach for loading a vehicle with low ground clearance. It folds away and secures to the ramp door when not in use.
Install Jack Toward Rear of Tongue
Get even more clearance by having the jack installed towards the rear of the tongue, closer to the body of the trailer.
Heavy Duty Rear Ramp Door
Hauling heavier vehicles? Upgrade to a heavy-duty rear ramp door, rated to accommodate vehicles up to 6000 lbs.

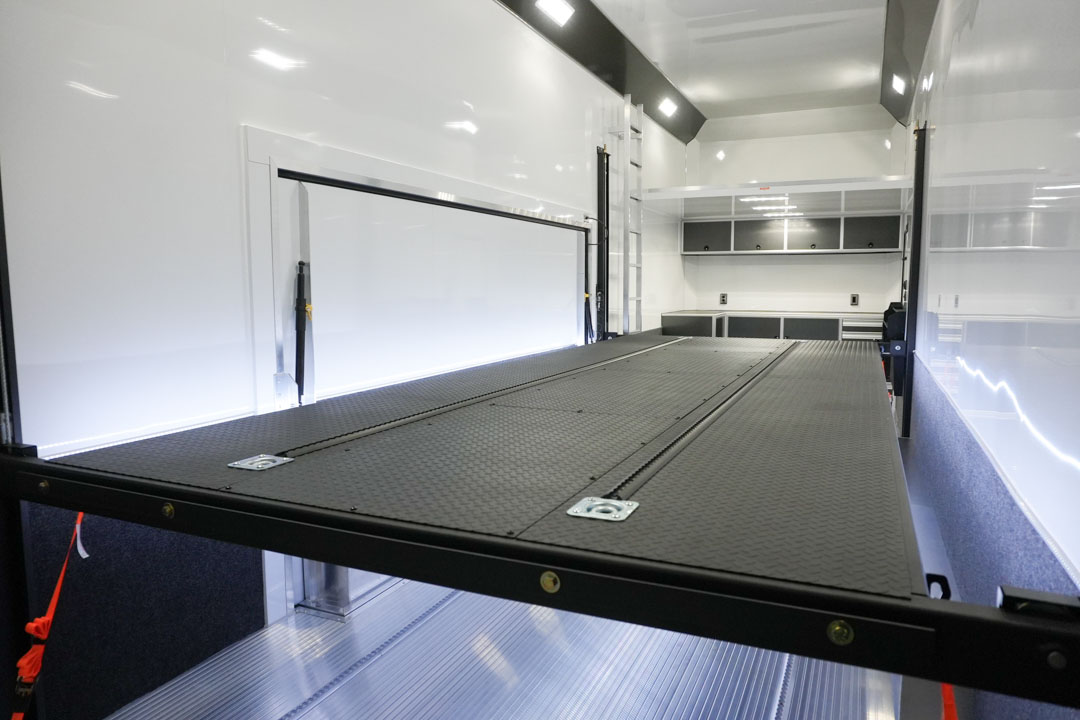

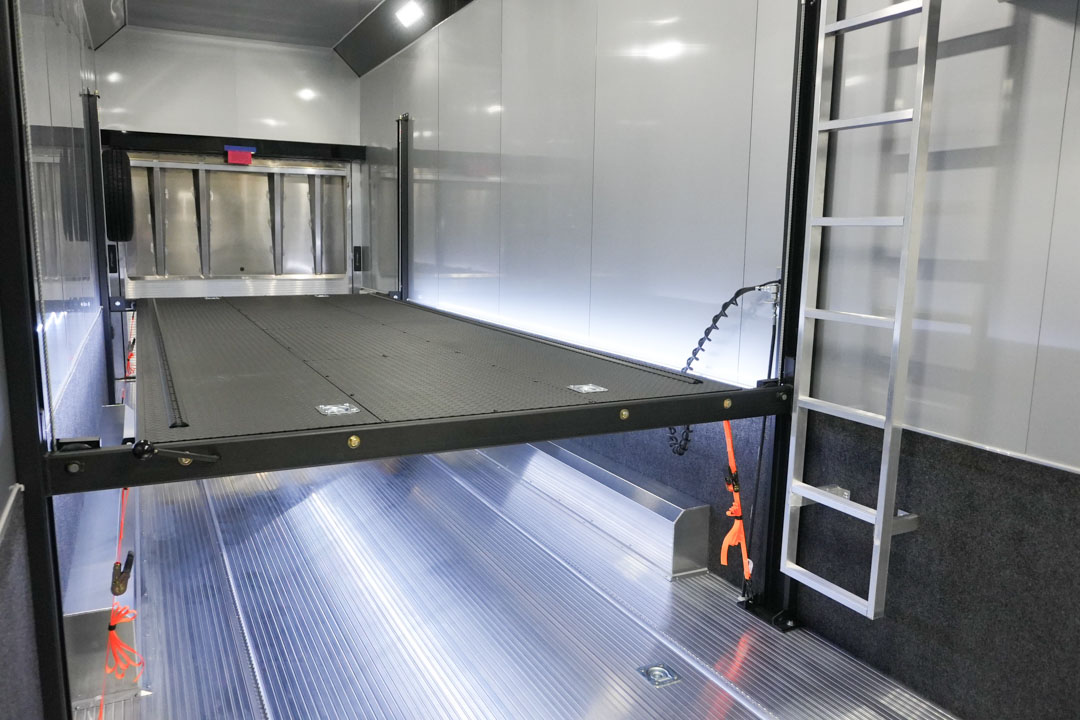

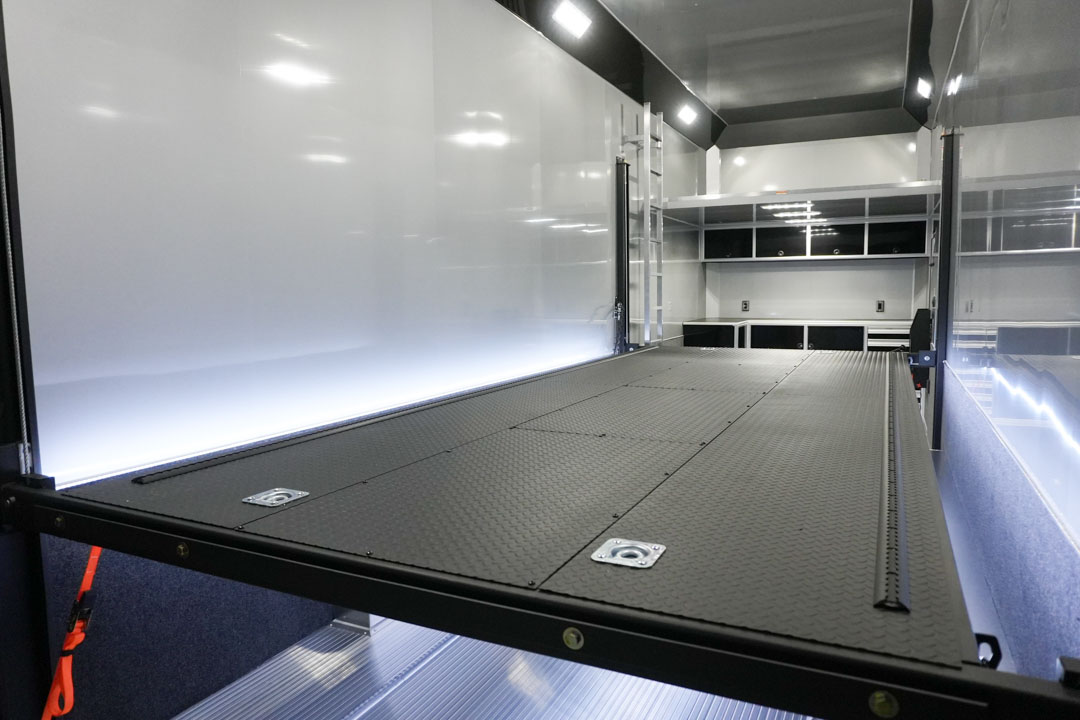

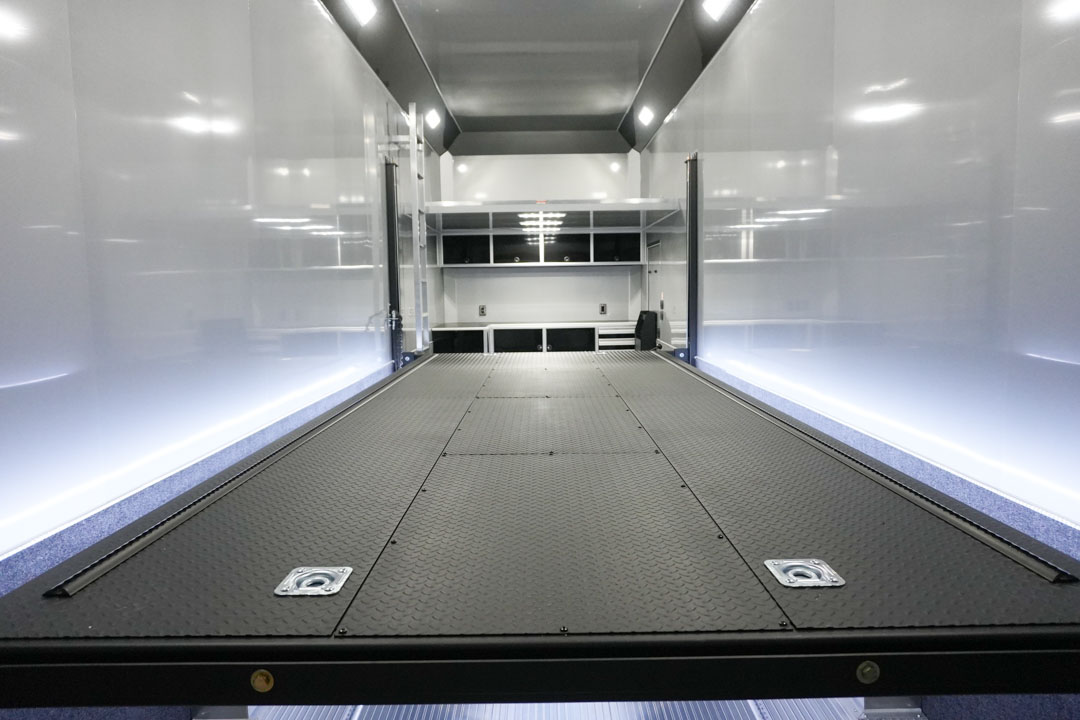

Add Removable Center Panels to Split Rail Lift

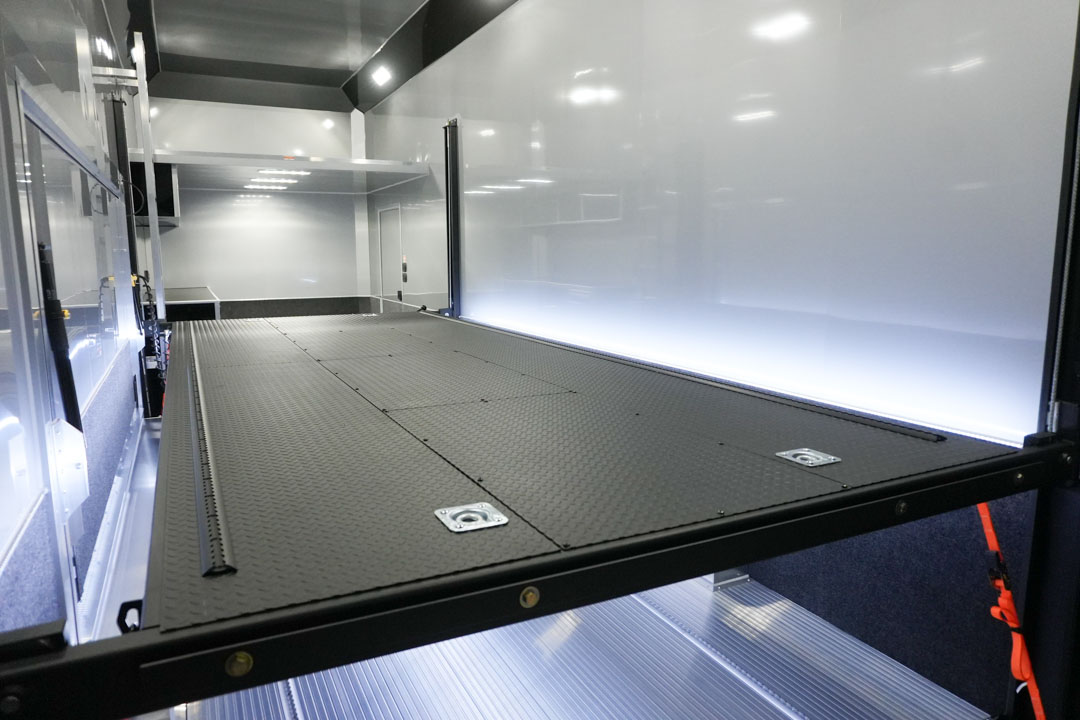

Fill the area between your split rail lift by adding removable center panels to span the gap.
Winch Plate Under Base Cabinet
Prepare your trailer for a future winch installation with a backer plate for support, welded directly to the frame under the base cabinets.

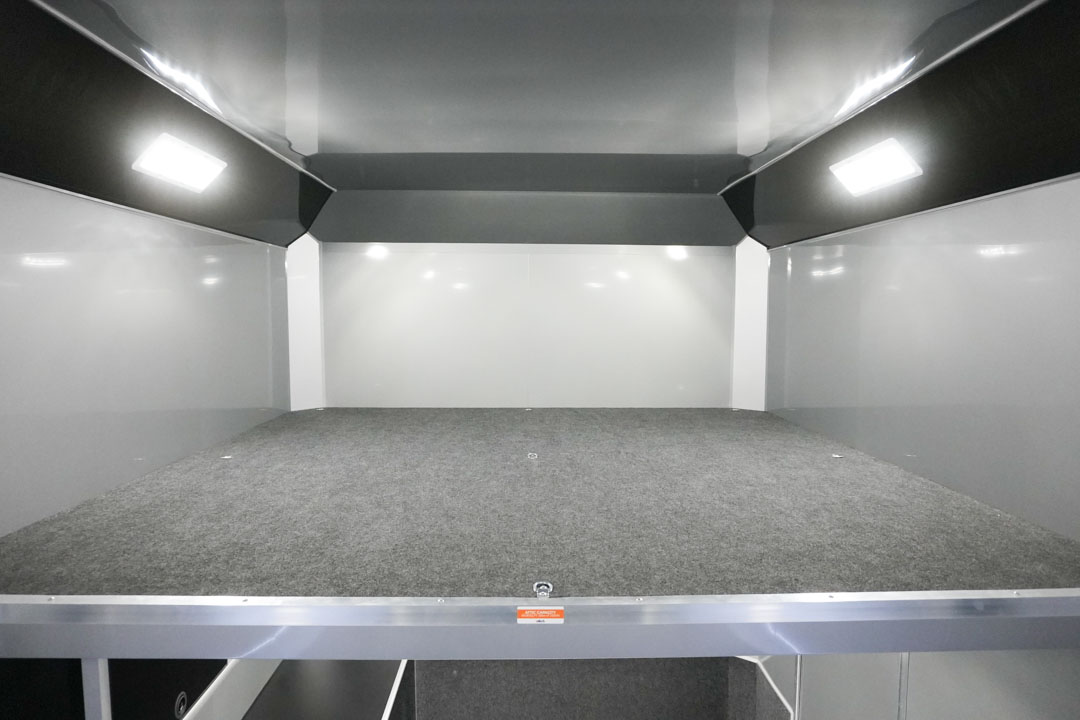

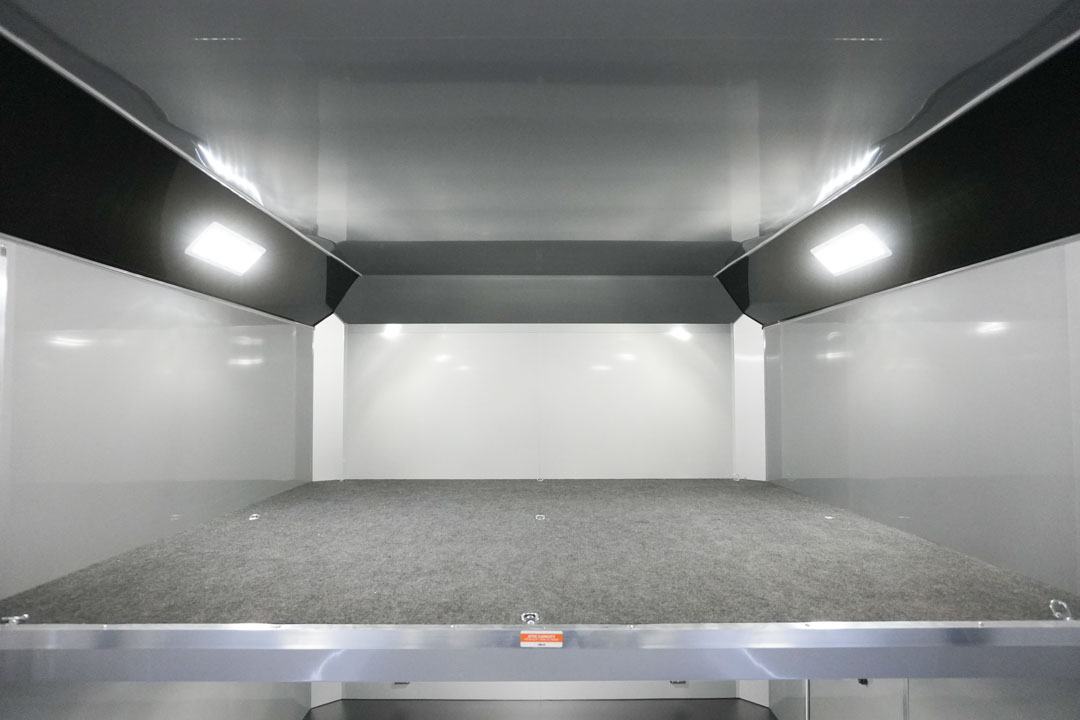

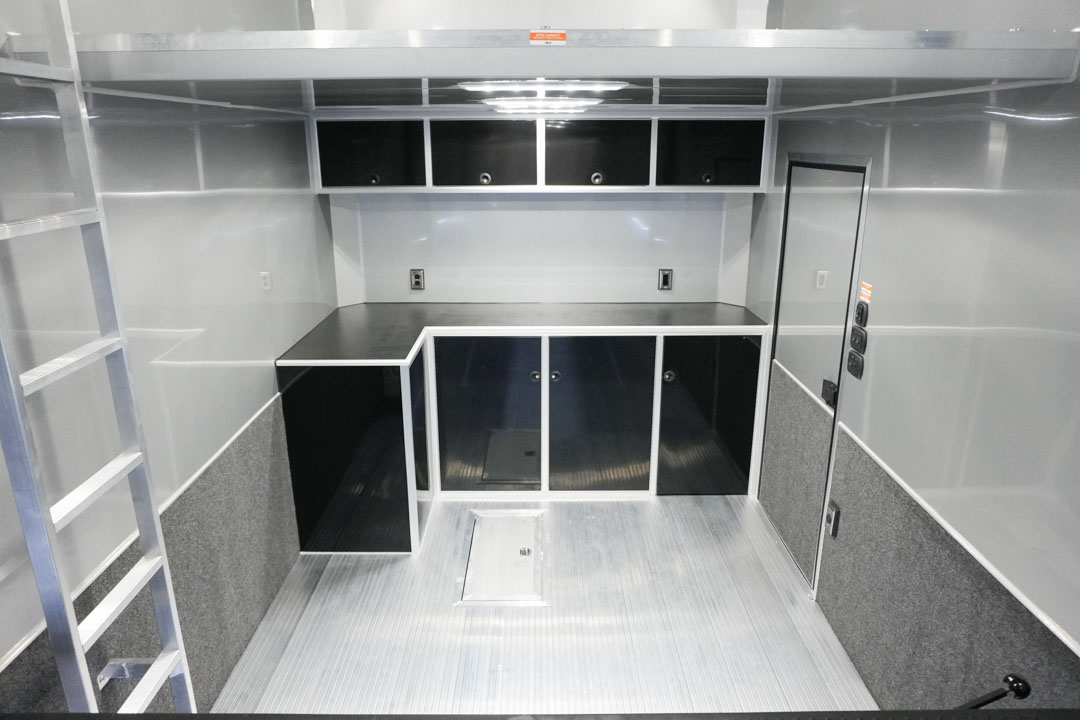

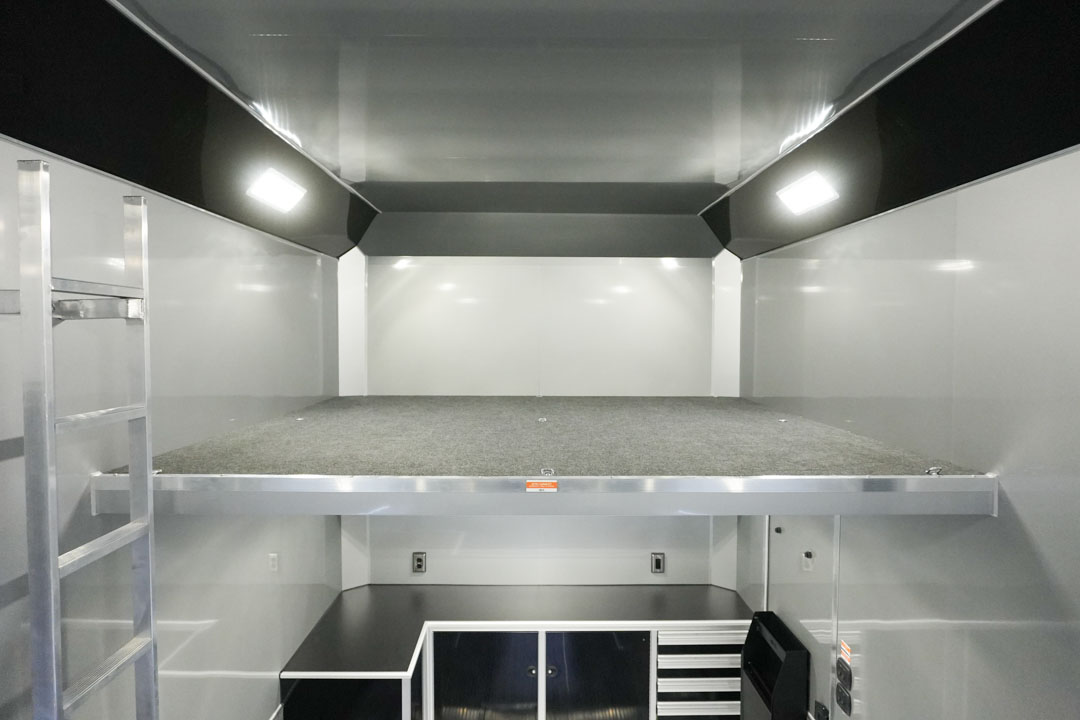

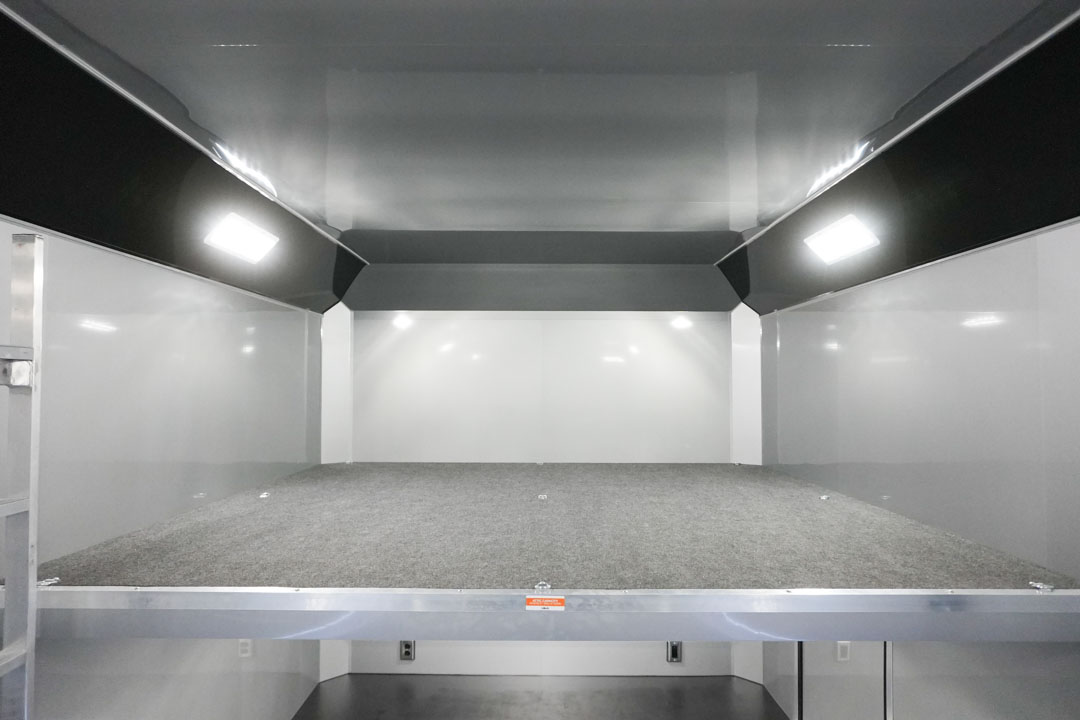

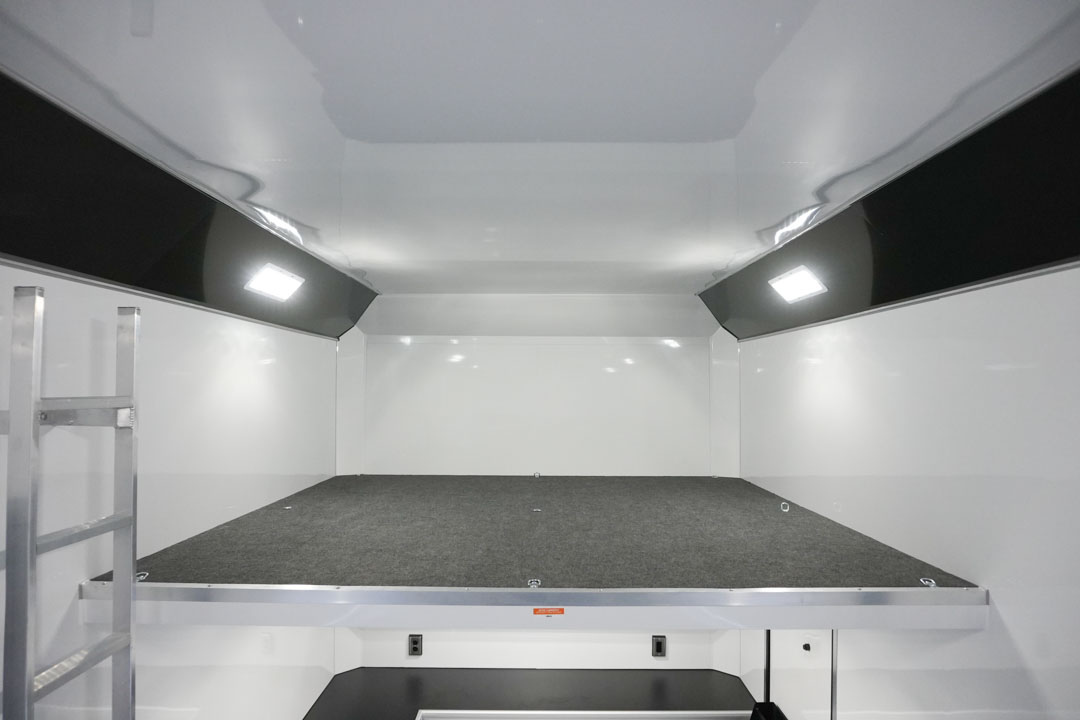

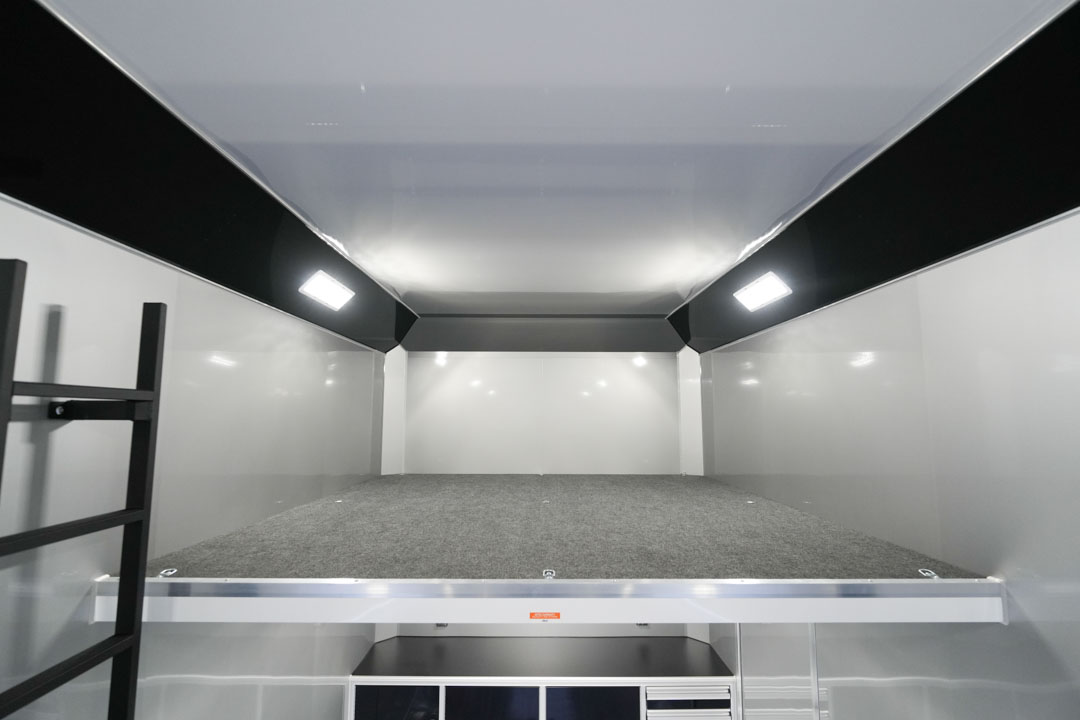

Light Duty Attic
Make the most of the space in your stacker by adding a light duty attic for more storage.
.050 Exterior Aluminum Skin
Upgrade to a thicker aluminum skin for increased exterior wall durability.

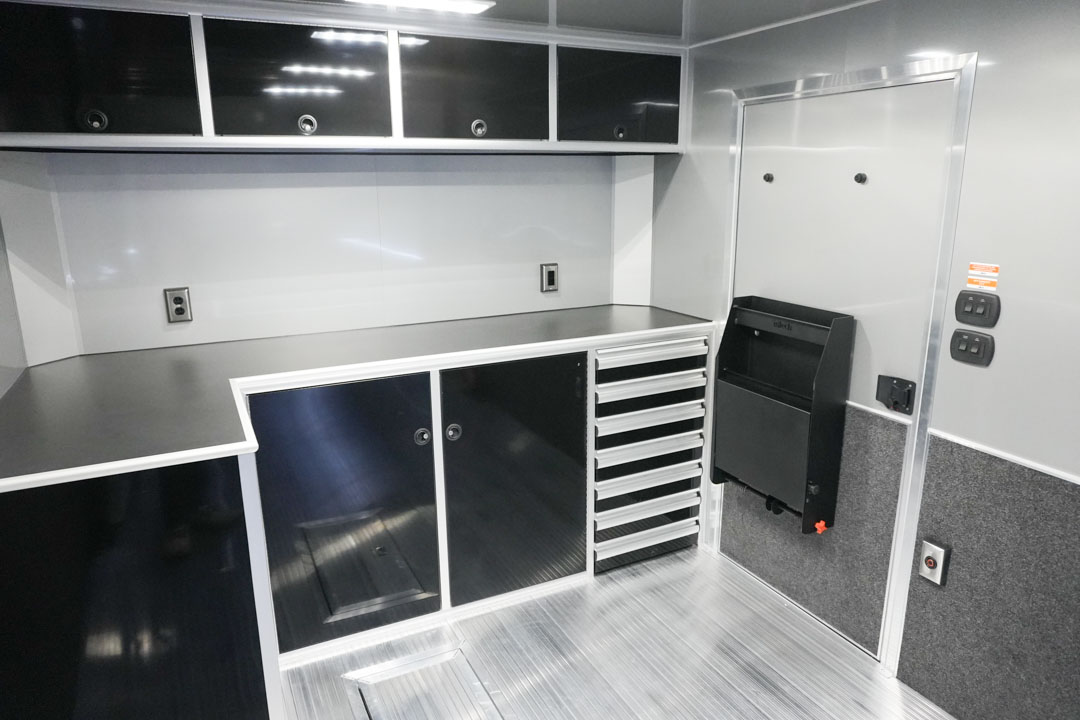

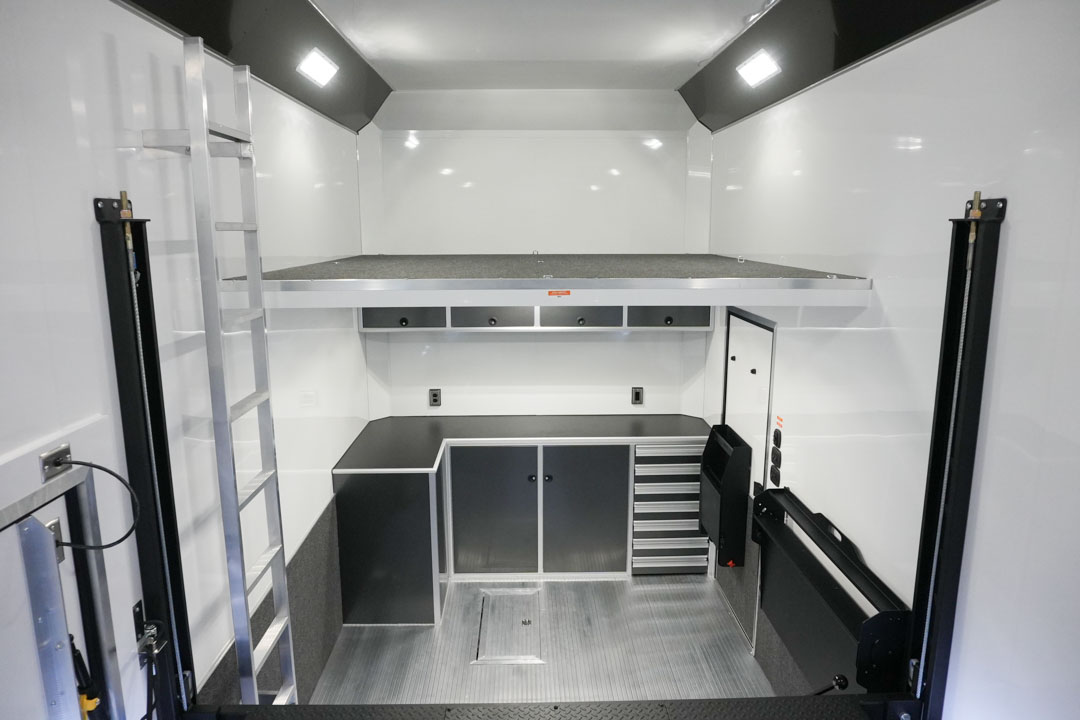

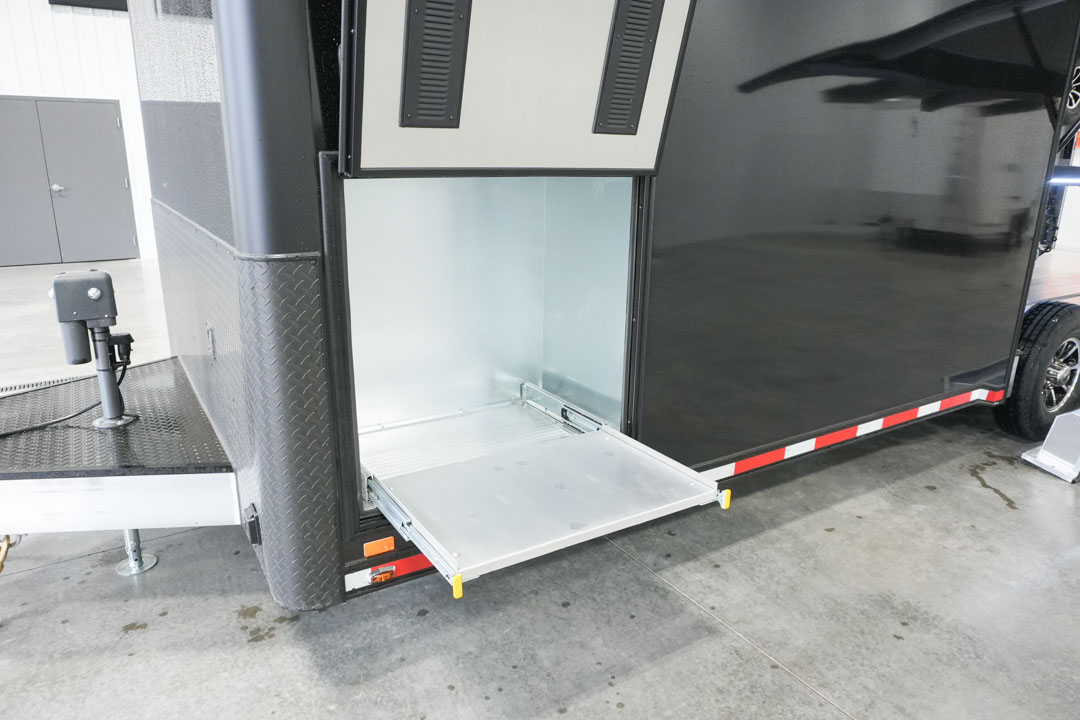

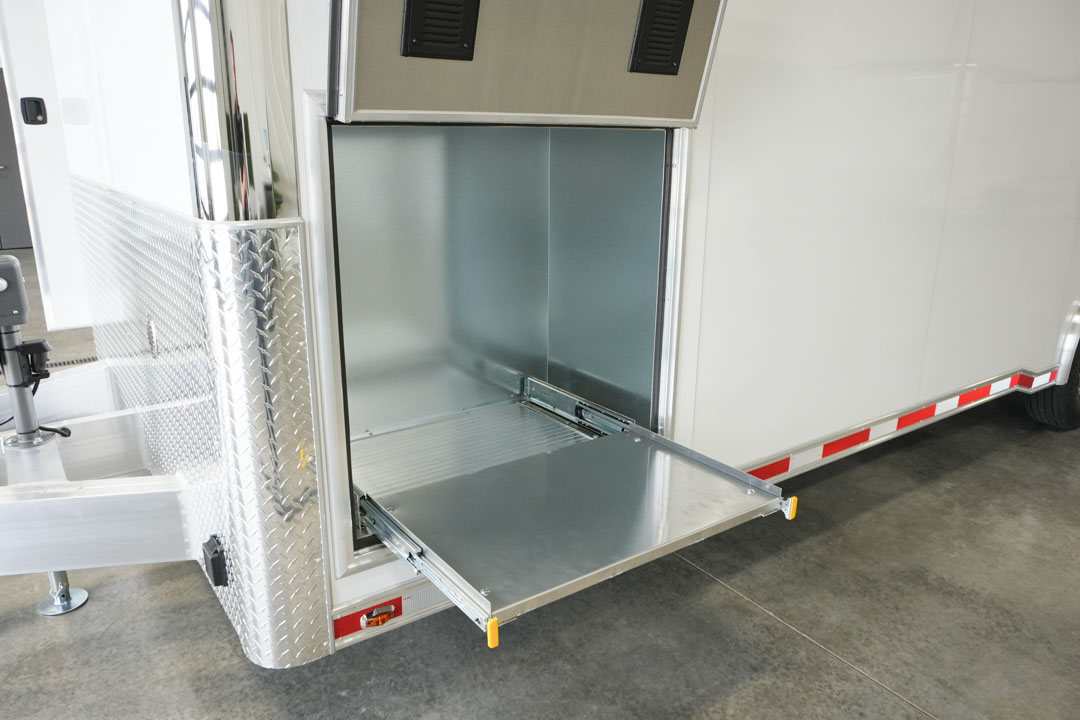

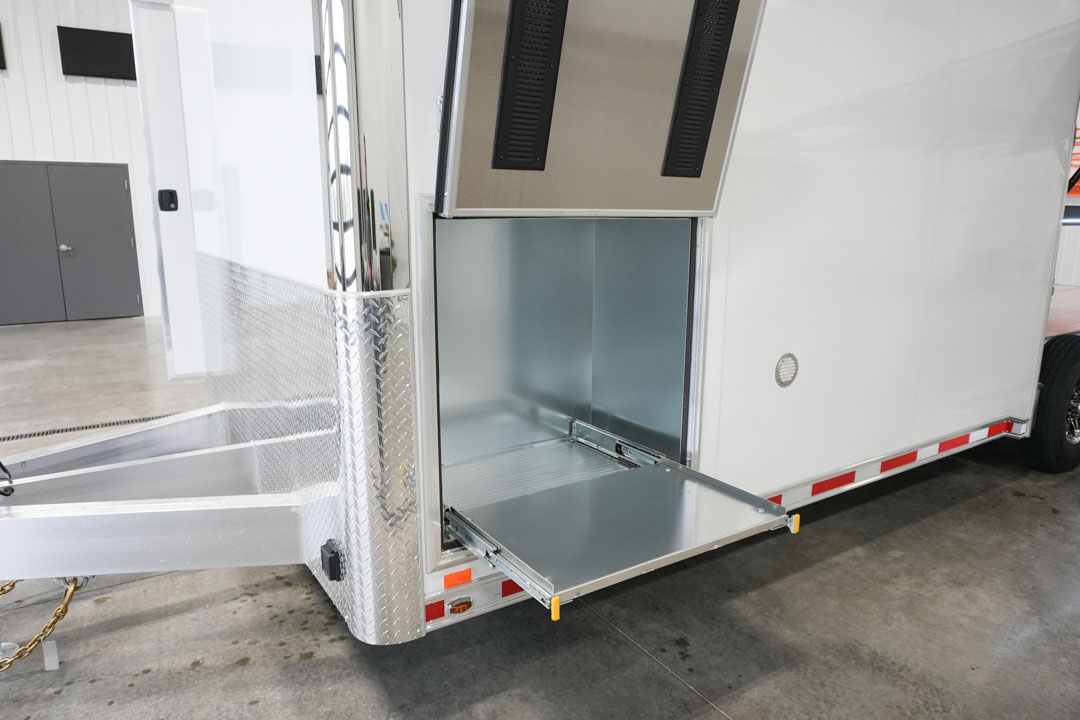

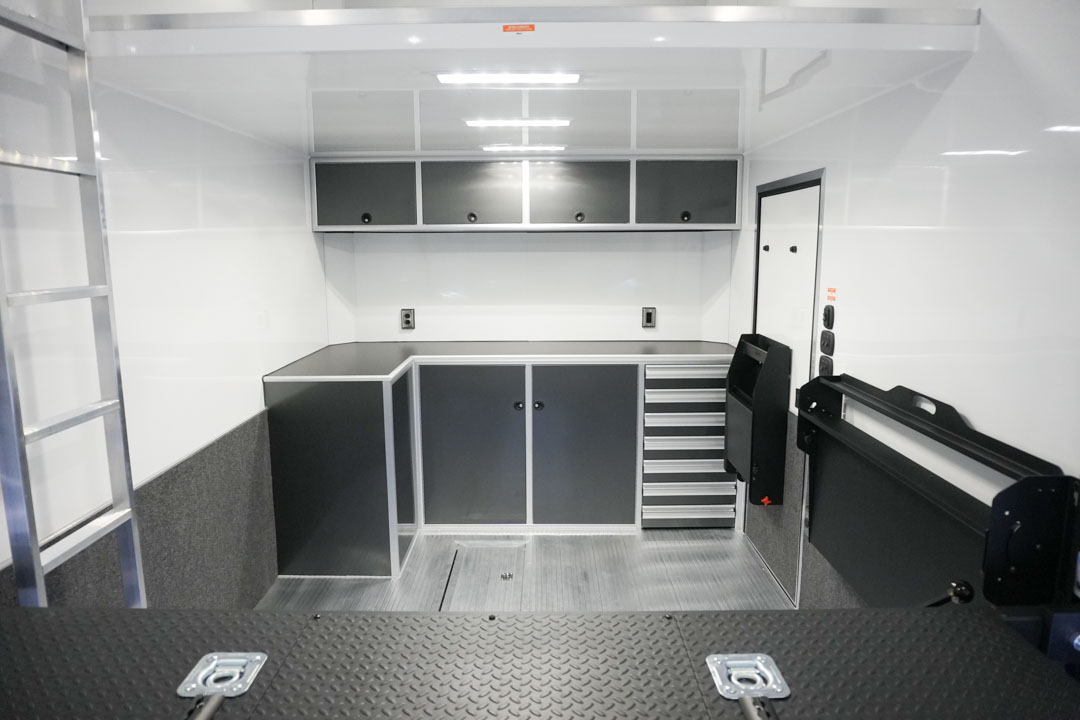

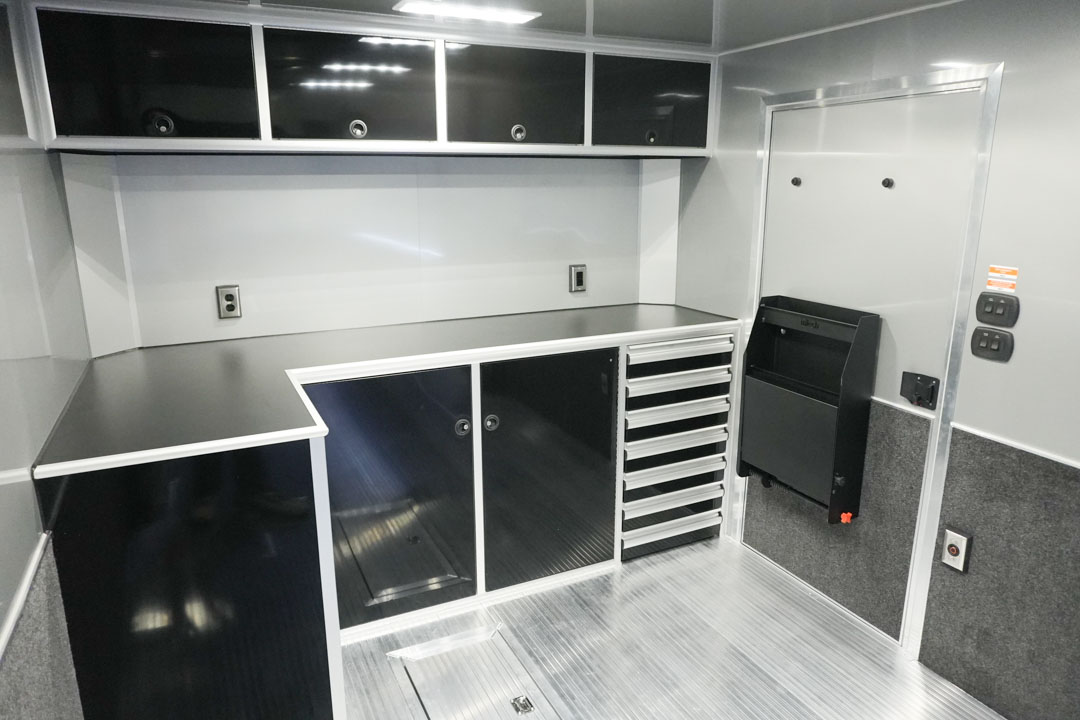

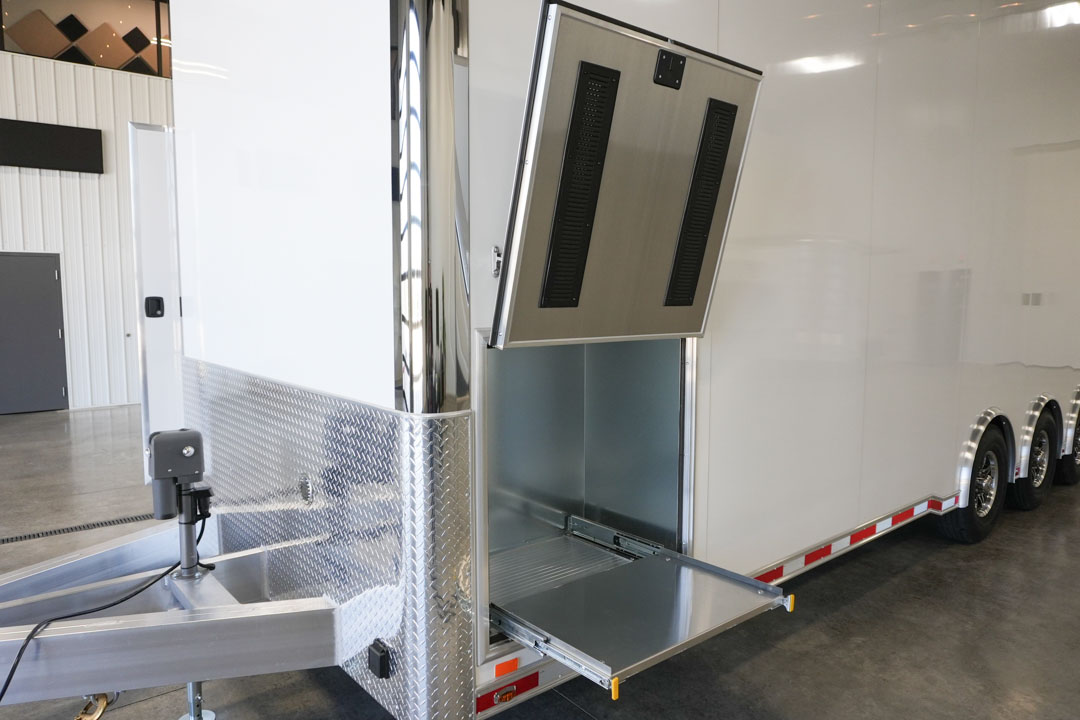

L-Base Cabinet w/ Generator Box & Door
Extend your interior countertop space and create a dedicated compartment for your generator. Complete with an exterior access door on the roadside of the trailer.
Delete 8' Straight Base Cabinet
Need the full floor space for cargo? Remove the base cabinets and receive a credit on your order.
Full Access Escape Door
Full Width Ramp Extension
Install Jack Toward Rear of Tongue
Heavy Duty Rear Ramp Door
Add Removable Center Panels to Split Rail Lift
Winch Plate Under Base Cabinet

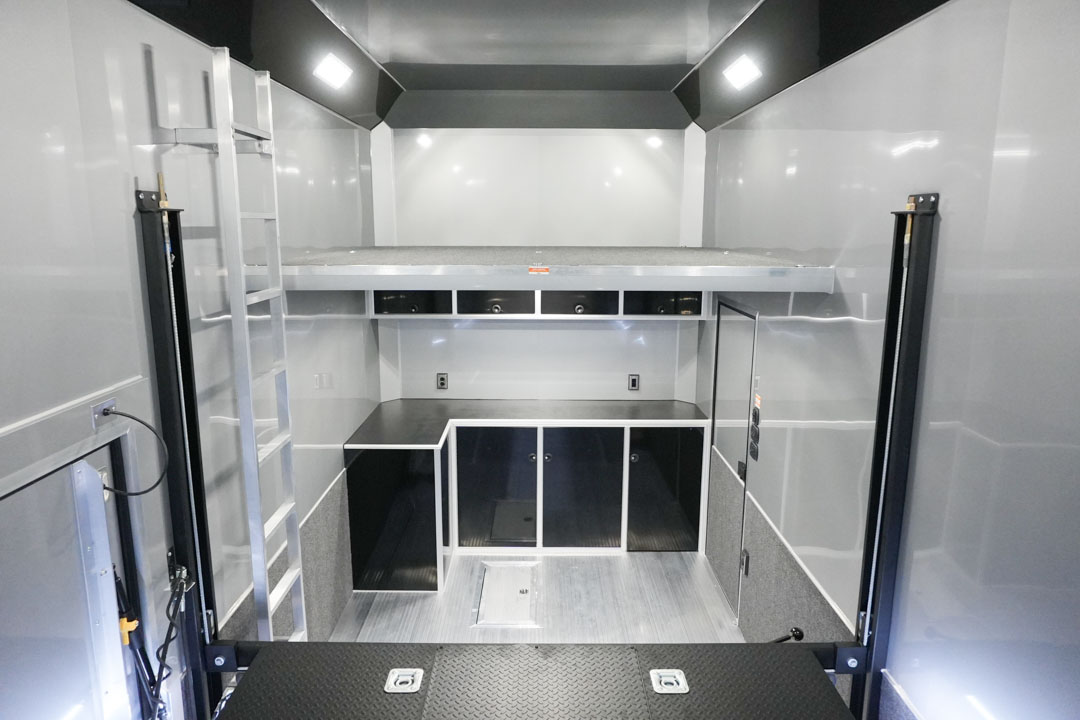

Light Duty Attic
.050 Exterior Aluminum Skin
L-Base Cabinet w/ Generator Box & Door
Delete 8' Straight Base Cabinet
Available Color Options
*Available colors are subject to change without notice.
| Choose a color to view it on the trailer. |
|---|
Polar White |
Silver Frost (Metallic) |
Black |
Med Charcoal Gray (Metallic) |
Sportsman Gray |
Matte Black (image coming soon) |
Orange (image coming soon) |
Victory Red (image coming soon) |
Leading the Way with Revolutionary Aluminum Construction.
Every inTech trailer frame is built using only aluminum tube extrusions. Aluminum renders a light-weight trailer using the strongest, longest lasting materials available. We've also selected the highest quality aluminum materials for finishing the interior and exterior of our trailers.
- Full Perimeter All-Tube Frame Construction
- Triple Tube Aluminum A-Frame Tongue
- Extruded aluminum floor & ramp with transition flap
- Premium aluminum wheels and full spare with mount
- One-piece, seamless aluminum roof
- Standard .040” thick screwless & rivetless aluminum exterior skin
(Upgrade to .050” upgrade available in Stacker models)
The Same Great Quality You've Come to Expect from inTech.
Our focus on quality starts during the design process and continues through production, resulting in the absolute finest fit, finish and attention to detail in the trailer industry. The Lite series is no exception. Built right alongside our premium custom trailers, we spare no expense in bringing you a high-end car hauler that you can trust.
- Engineered to last, with a 5-year transferable structural warranty
- Built by the same skilled craftsmen that produce our signature custom trailers
- Name brand components & reputable suppliers
- Aluminum cabinetry and other components built here in our on-site fabrication shop
A Premium Car Hauler
Without the Wait.
By limiting the size offerings and available options, we are able to streamline production of the Lite Series models, allowing for shorter lead times. However, we include many of our most popular features in our Lite Series trailers standard, resulting in a value-priced trailer without sacrificing our same great quality and premium fit and finish!
- Much shorter lead times than our custom trailers
- Premium standard features included on all models
- Limited options to streamline our production process
- Several models to choose from in multiple lengths and capacities
Continuous Improvement & Innovation.
Passion for our products drives us to continuously evolve, develop, and improve. With over 20 proprietary extrusions and unique processes like anodizing trims, you won't find another trailer manufacturer committed to creating a trailer that looks and performs better than inTech!
- Extensive market research and customer input has been applied to deliver the ultimate light weight car haulers
- More equipped with standard features than ever before
- Optional escape doors are now 6' tall to accommodate a wider range of cargo
- Aesthetically appealing form and finishes without sacrificing quality
