Welcome to Navigate
This model has two distinct bedroom configurations.

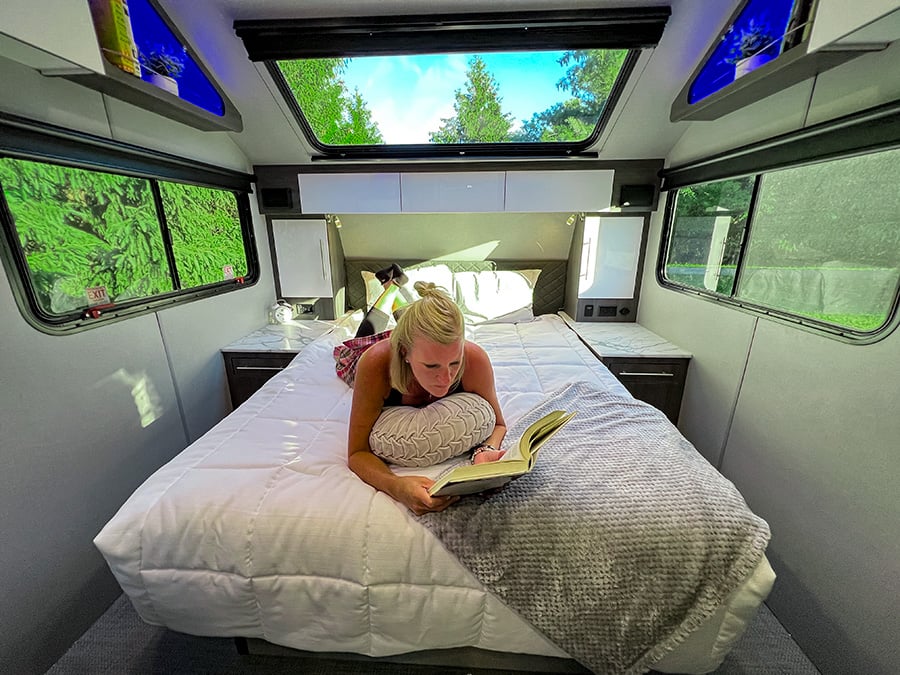

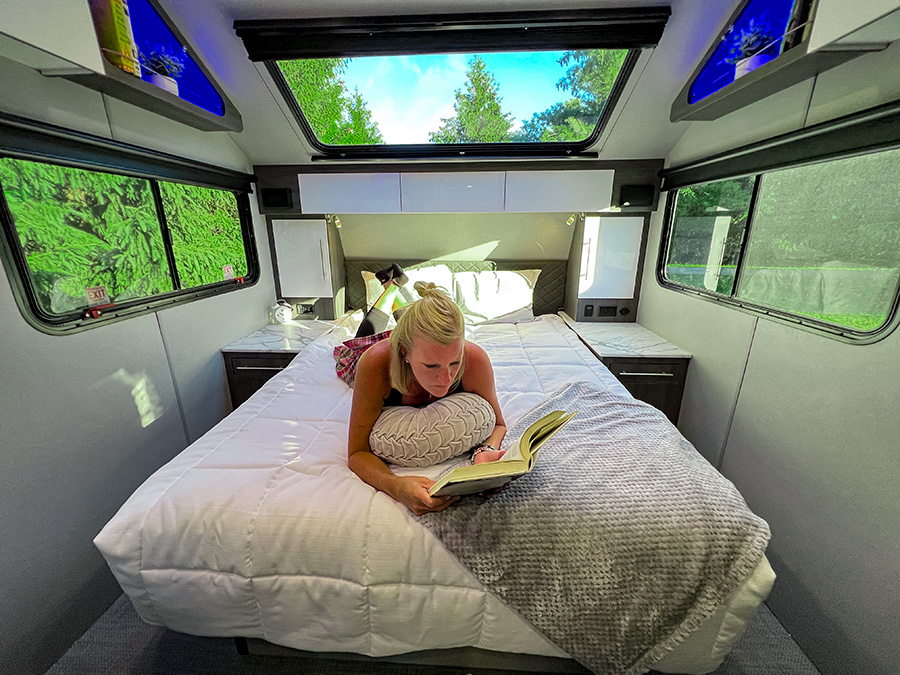

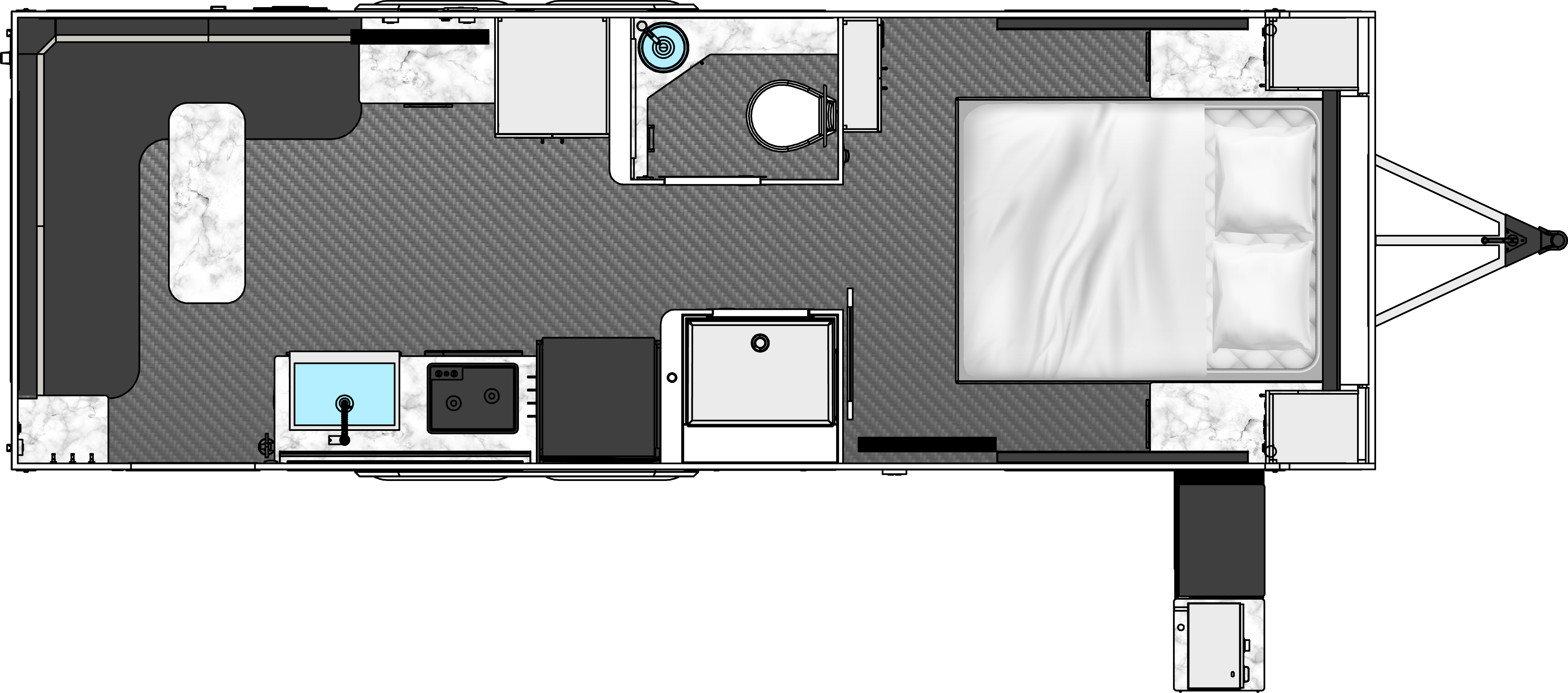

STANDARD QUEEN BED

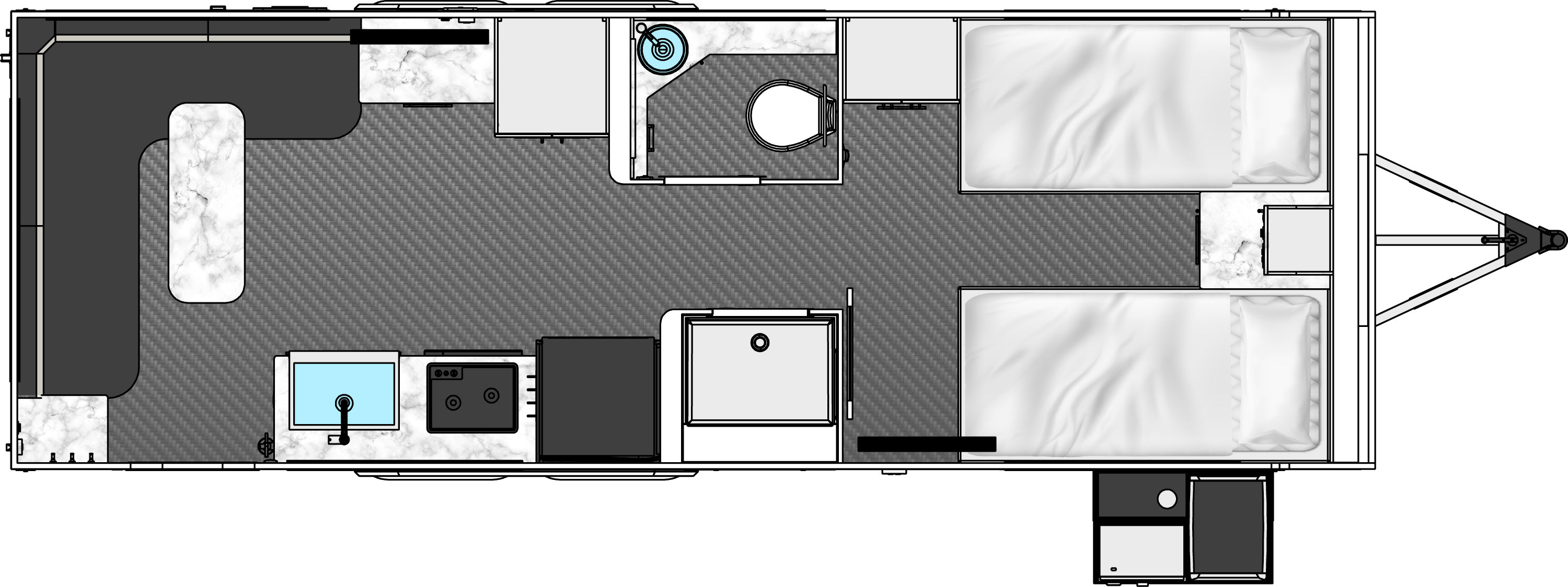

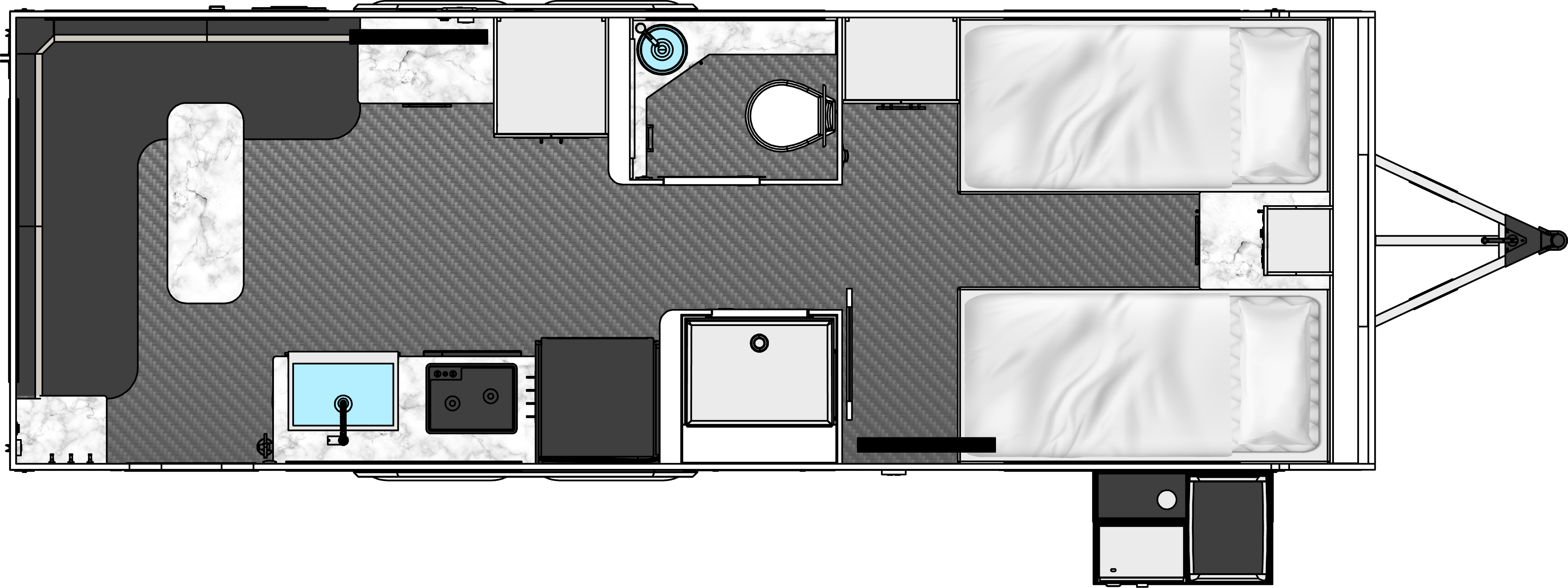

OPTIONAL TWIN BEDS
Rugged Design
The O-V-R line of adventure travel trailers is the perfect way to see the country. You can pack up your belongings and hit the open road, stopping wherever and whenever you please. However, conventional RVs can be difficult to take off the beaten path. That's where an off-road RV comes in. O-V-R is designed to handle rough terrain, giving you the freedom to explore even the most remote locations. With an off-road RV, you can find your piece of paradise, far from the hustle and bustle of everyday life. So if you're looking for a way to truly get away from it all, O-V-R is a perfect choice.

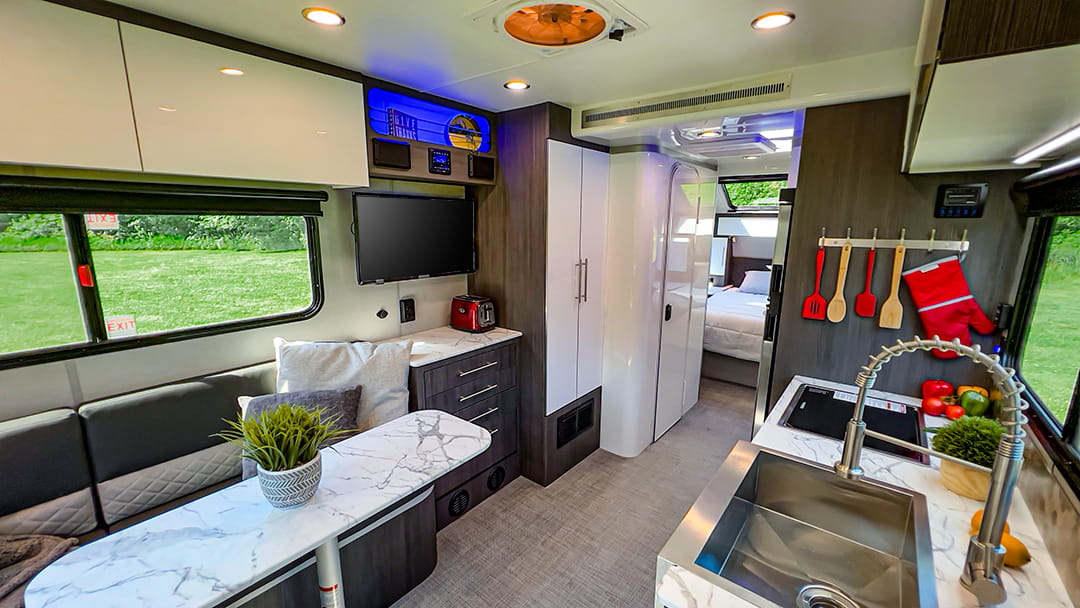

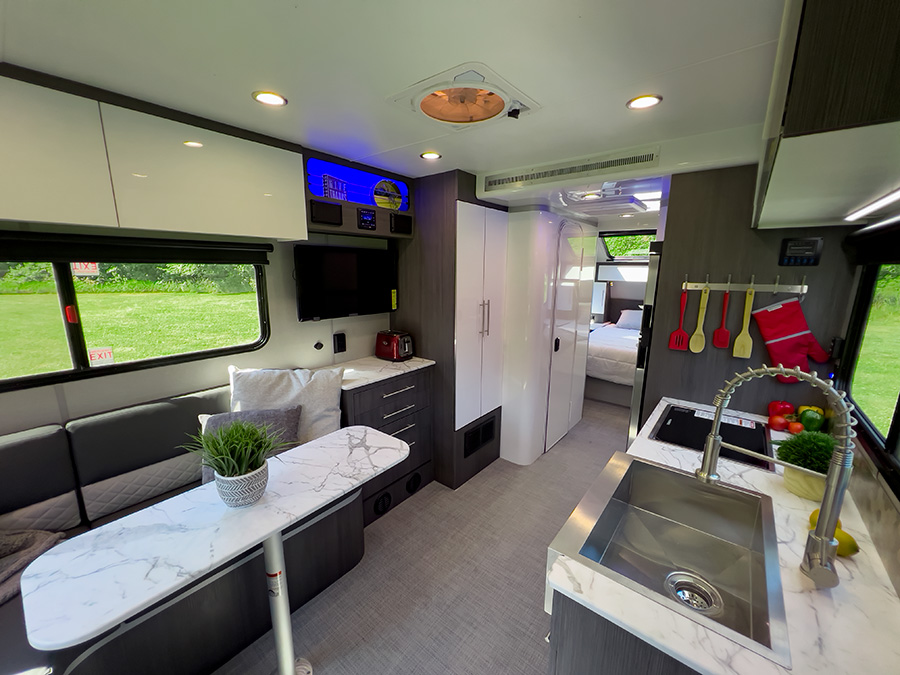

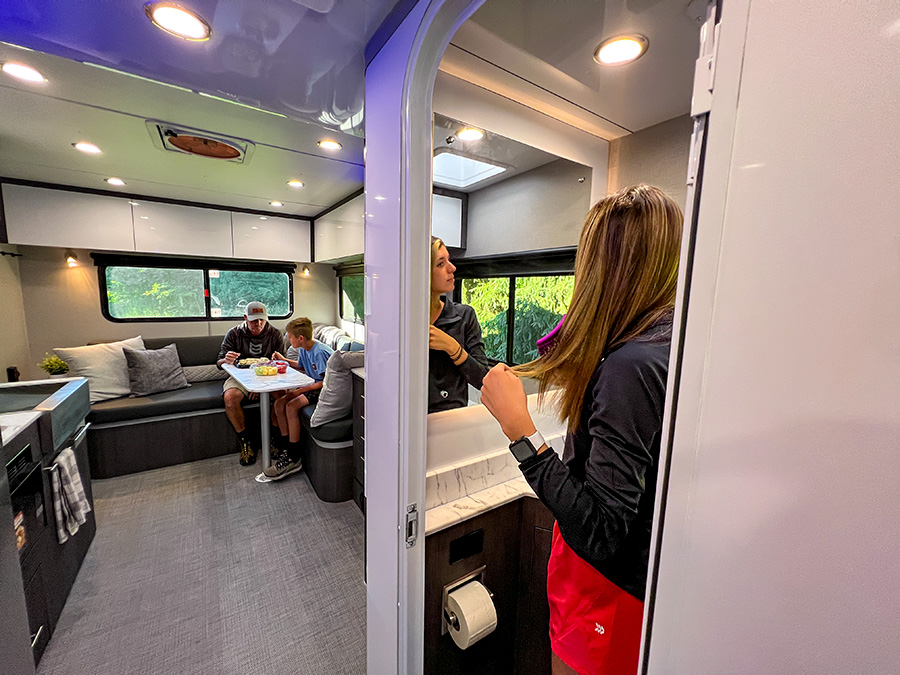

Spacious Interior
RVing is a great way to travel the country and see new sights, but it can be tough to find an RV that has enough space for your entire family. That's why we're proud to offer our spacious O-V-R line of RVs, which has plenty of room for everyone to stretch out and relax. Our RV has a large living area, a well-equipped kitchen, and a comfortable bedroom that will make you feel right at home on the road.

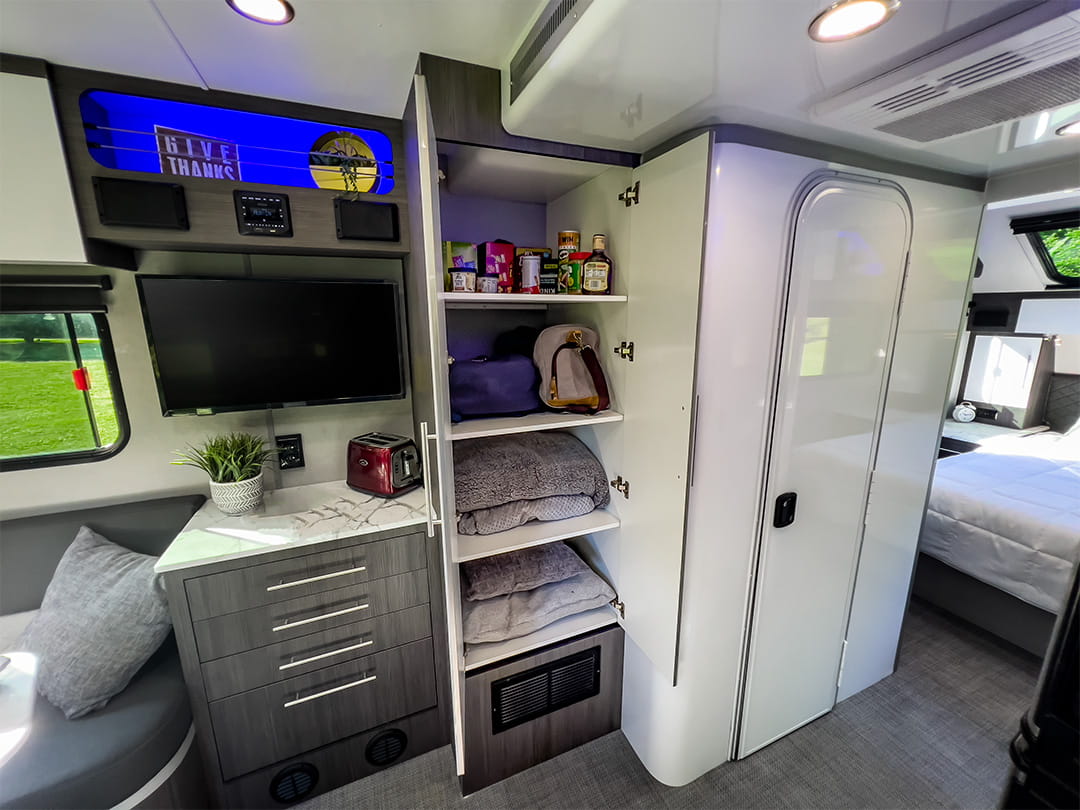

Superior Storage
When storage space is a prioirty while your headed to your next site, inTech's O-V-R Navigate does not disappoint. You will be able to bring everything and more along for the ride.
Fully Welded Cage & Frame Construction
Just like the rest of inTech's products, O-V-R is built with a reliable all-aluminum fully welded cage frame. Simply put, our RVs handle any terrain as well as hold up to the elements. So if you're looking for an RV that has it all, look no further than O-V-R. We guarantee you won't be disappointed.
Extreme Off-Grid
When it comes to the world of recreational vehicles, nothing quite compares to the awe-inspiring O-V-R line. This revolutionary series of off-road, off-grid RVs offers an unparalleled level of freedom, versatility, and luxury for the modern adventurer.
Key Features
Colors
Exterior
360° Interior
Gallery
Options

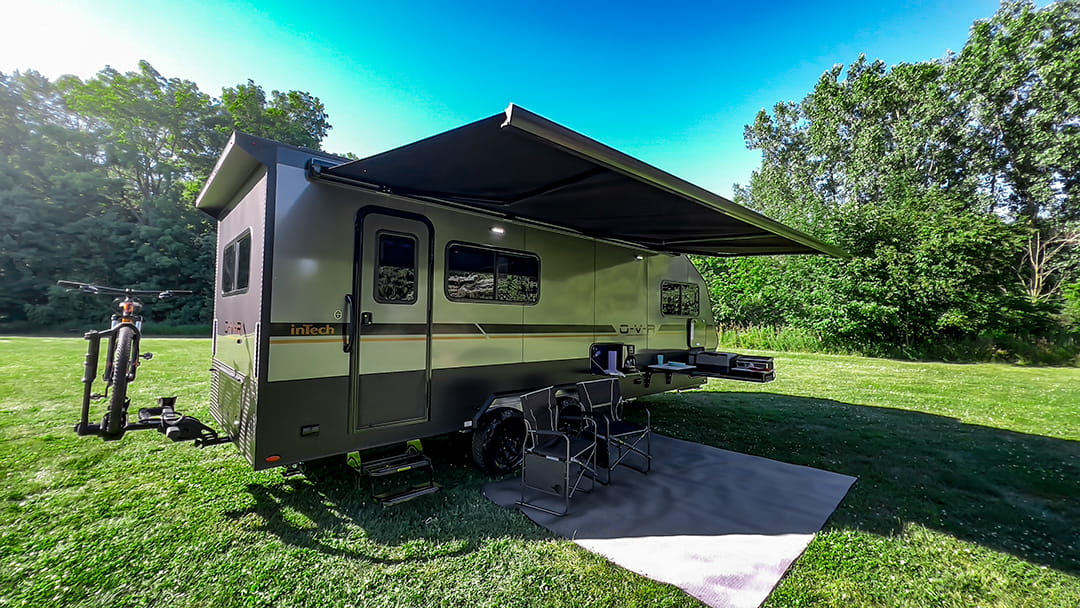

18' Power Awning
18ft power awning with wind detection keeps you and your belongings protected from the elements. If wind is detected the awning retracts to protect itself from any damage.

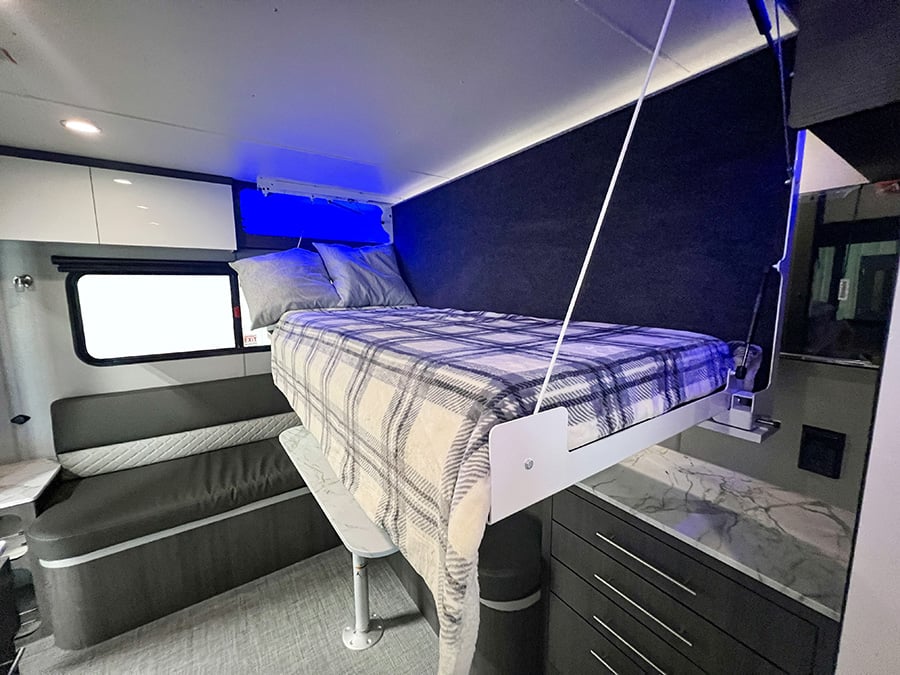

Drop-down Bunk
Need additional sleeping space? You can option in the drop-down bunk that quickly and conveniently folds up and out of the way.

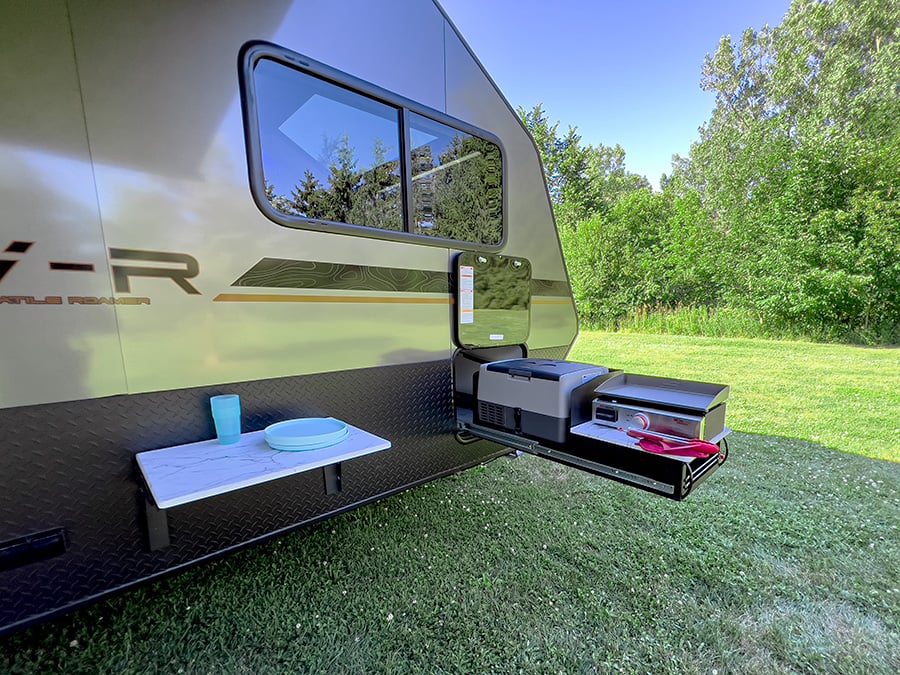

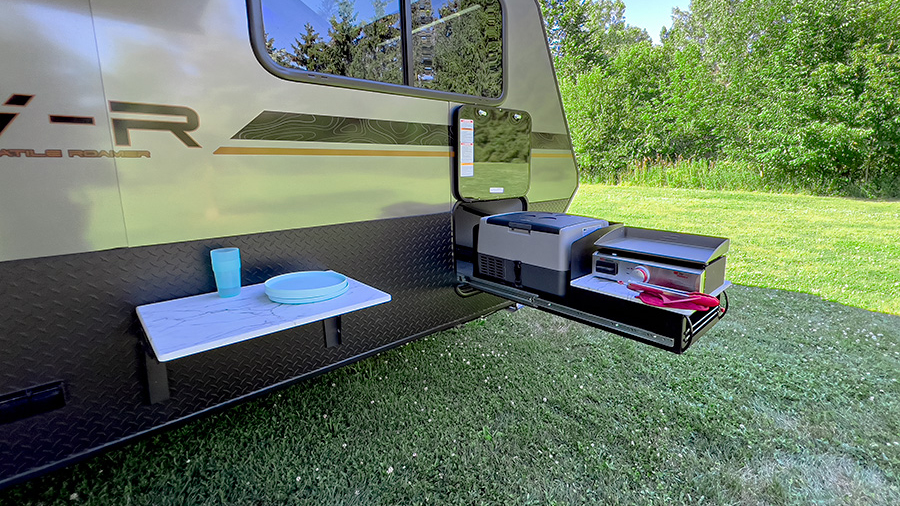

Exterior Slideout Kitchen
Option in the Exterior Slideout Kitchen and do all your cooking conveniently outside the camper.

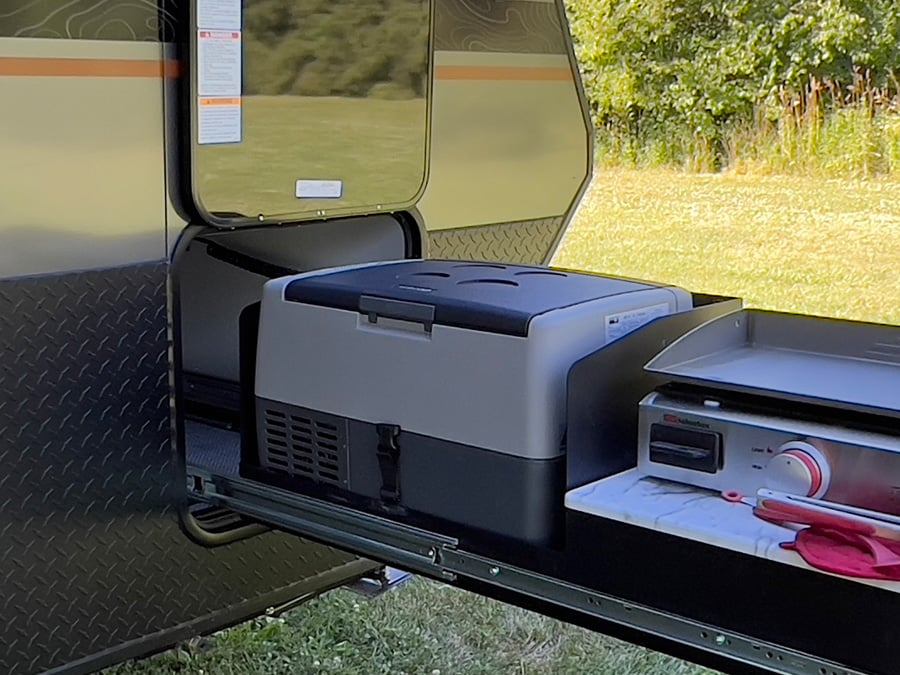

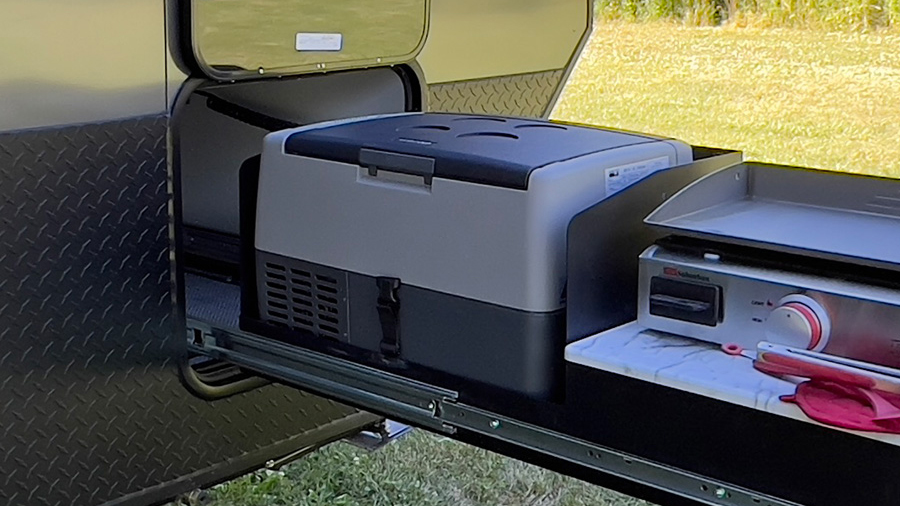

Slideout Kitchen Refrigerator
Keep everything cool. Exterior Slideout Kitchen Required.

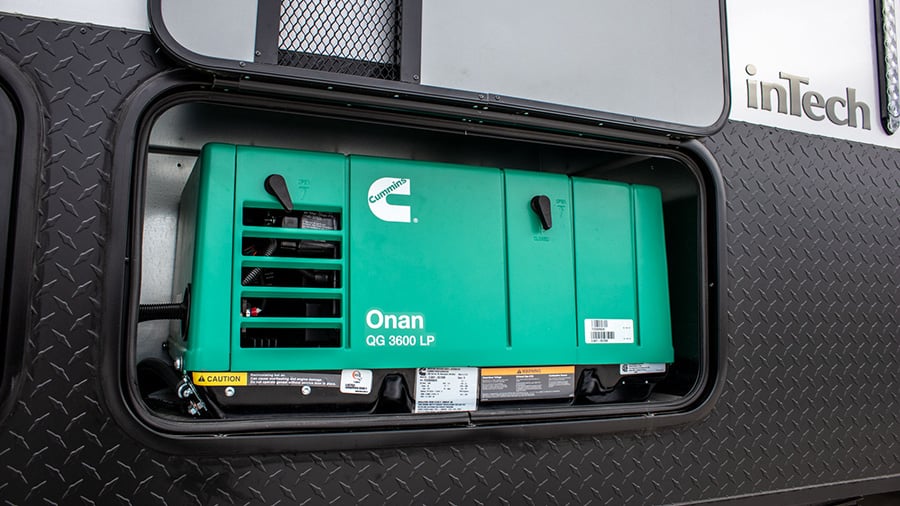

3.6 KW LP Generator
Upgrade your RV experience with our top-of-the-line generator option and redefine the way you travel.

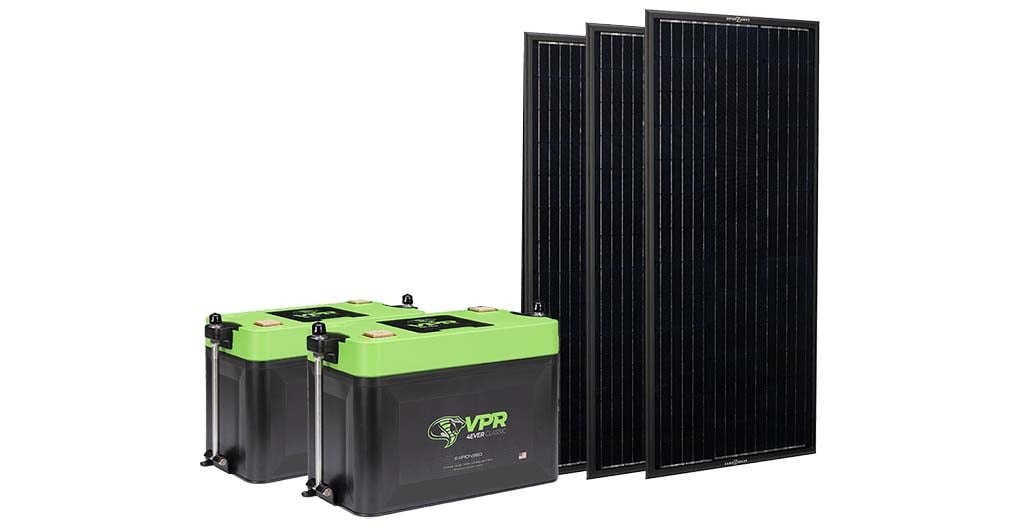

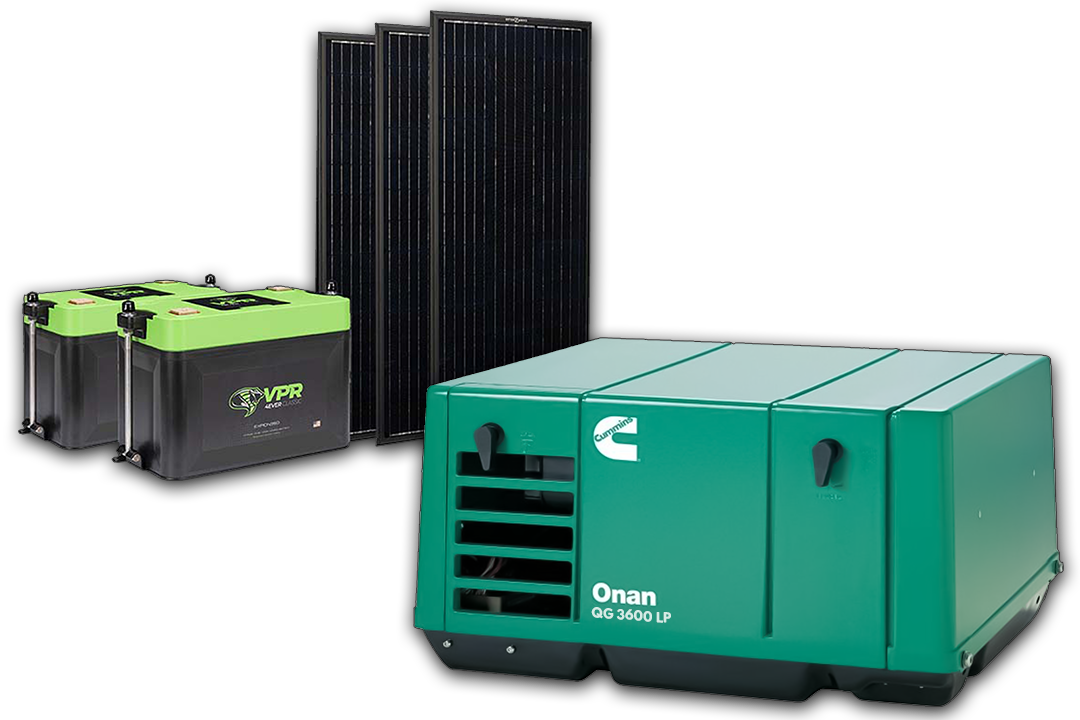

Off-Grid Package
Enjoy true freedom getting off-grid with inTech’s Off-Grid Package. 400 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries, and a 2,000 Watt inverter allow you to take a path less traveled.

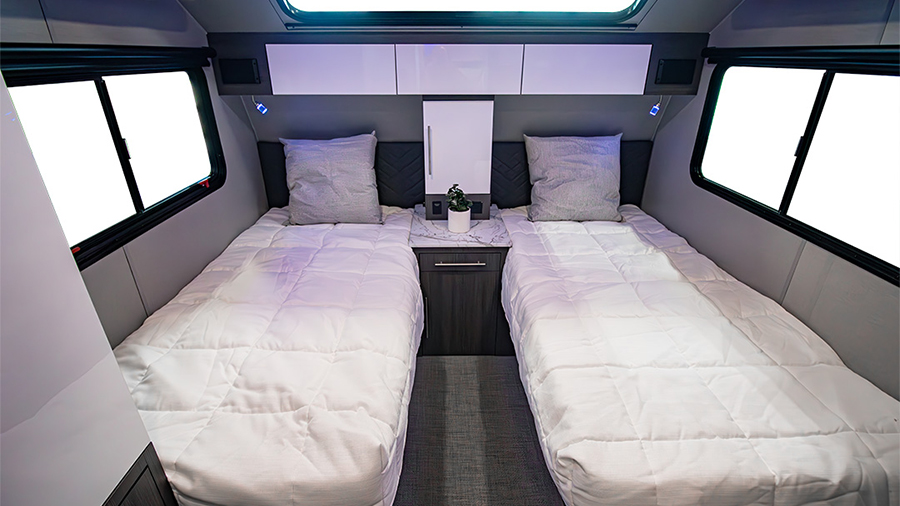

Twin Bed Layout
Enjoy 2 large twins beds in the O-V-R Navigate! By selecting the twin bed option you will swap out the 60”x80” queen bed for 38”x80” twin beds.

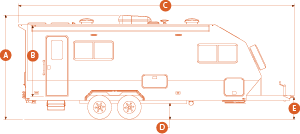

Dimensions
- (A) Overall Height w/ A/C - 10' 6"
- (B) Interior Height - 6' 11"
- (C) Overall Length - 27' 1"
- (D) Ground Clearance - 16"
- (E) Ball Height - 26"
- (F) Box Width - 8'
- (G) Overall Width - 8' 3"
- (H) Overall Width w/ Slideout - 12' 2"
- (I) Slideout Kitchen - 3' 9"
- (J/K) Dinette - 78" x 69"
- (L/M) Bathroom - 43" x 33 1/2"
- (N/O) Shower - 33" x 31"
- (P/Q) Master Bed - 80" x 60"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
| Overview | |
|---|---|
| Approx. Dry Weight | 5,900 lbs |
| Approx. Tongue Weight | 700 lbs |
| GVWR | 7,500 lbs |
| Net Carrying Capacity | 1480 lbs |
| Ball Height | 26" |
| Fresh Tank | 44 Gal |
| Gray Tank | 39 Gal |
| Black Tank | 39 Gal |
| Exterior | |
|---|---|
| Frame | All-Aluminum / All-Tube / Cage Frame |
| Coupler | 2 5/16” Ball |
| Rear Receiver | 2” Receiver – 175# Capacity |
| Tires | ST235/75/R15 - Includes Spare Tire |
| Load Center | 45 Amp |
| Solar | Zamp Solar Prep |
| Exterior Skinning | .040 Aluminum – Seamless |
| Roof | One Piece Aluminum |
| Exterior Storage Compartment | 3 |
| 20# LP Tank | 2 |
| Lp Quick Connect Port | 1 |
| Axle | Torsion |
| Entry Step | Fold-Away Double Step |
| Exterior Lighting | (2) Porch Light, Awning Light, Entry Step Light |
| Tounge Jack | Power |
| Interior | |
|---|---|
| Ventilation | MaxxAir Vent Fan |
| Insulation | Bubble Foil (Walls & Ceiling) |
| Tank Insulation | Heated Underbelly & 12V Line Heaters & Tank Heat Pads |
| Storage | (4) Drawers, (7) Overhead Cabinets, (4) Cubbies, Pantry Cabinet |
| Interior Windows | 6 |
| Flooring | Infinity Woven Flooring |
| Entertainment | Bluetooth Stereo w/ (4) Speakers & 32" Smart TV |
| A/C | 15K Ducted w/ Soft Start |
| Furnace | 25K BTU |
| Outlets | (2) USB Outlet, (3) 120V Outlet |
| Dinette Size | 72"x79" L Shape |
| Water Heater | On Demand – LP |
| Kitchen | |
|---|---|
| Refrigerator | 10 Cu Ft 12V |
| Sink | Large Farmhouse Style Sink w/Brushed Nickel Faucet |
| Cooktop | 2 Burner Stainless Steel |
| Microwave | Convection |

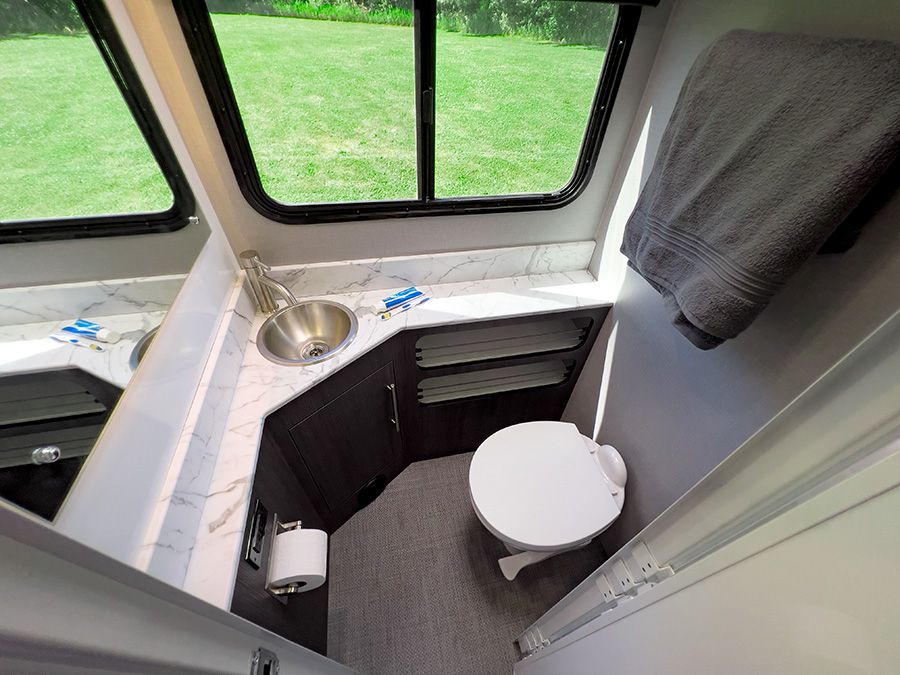

| Bathroom | |
|---|---|
| Toilet | Porcelain Toilet |
| Sink | Round Sink w/ Brushed Nickel Faucet |
| Ventilation | Roof Vent w/ Onboard Switch |
| Storage | Base Cabinet w/ Under Sink Storage & Cubbies, Overhead Cabinet |
| Outlet | 120V Outlet |
| Shower | |
|---|---|
| Walls | Aluminum Walls w/ Sealing Exterior Door |
| Ventilation | Roof Vent w/ Onboard Switch |
| Storage | Mesh Shower Storeage Net, (2) Towel Hook |
